2.3.4. Digital SLICE
Available in fourth quarter 2010.
Preliminary specifications:
! Supply will have isolated +5 V
! 8 isolated inputs
! Input modes supported:
o CCNO - Contact closure normally open
o CCNC - Contact closure normally closed
o VIHL - Voltage Input High-Low
o VILH - Voltage Input Low-High; 3 input channels
2.3.5. ACCEL SLICE
The ACCEL SLICE has Bridge SLICE electronics with the addition of a built-in 3-
axis accelerometer. The following specifications apply:
! MSI Model 3038 accelerometers are used (see www.meas-spec.com
)
! Options from 50 to 2000 g
! DC response
2.3.6. ARS SLICE
The ARS SLICE has Bridge SLICE electronics with the addition of a built-in 3-axis
angular rate sensor. The following specifications apply:
! DTS ARS are used (see
http://dtsweb.com/products/esensing_angular.php
)
! Options from 300 to 50000 deg/sec
! DC response

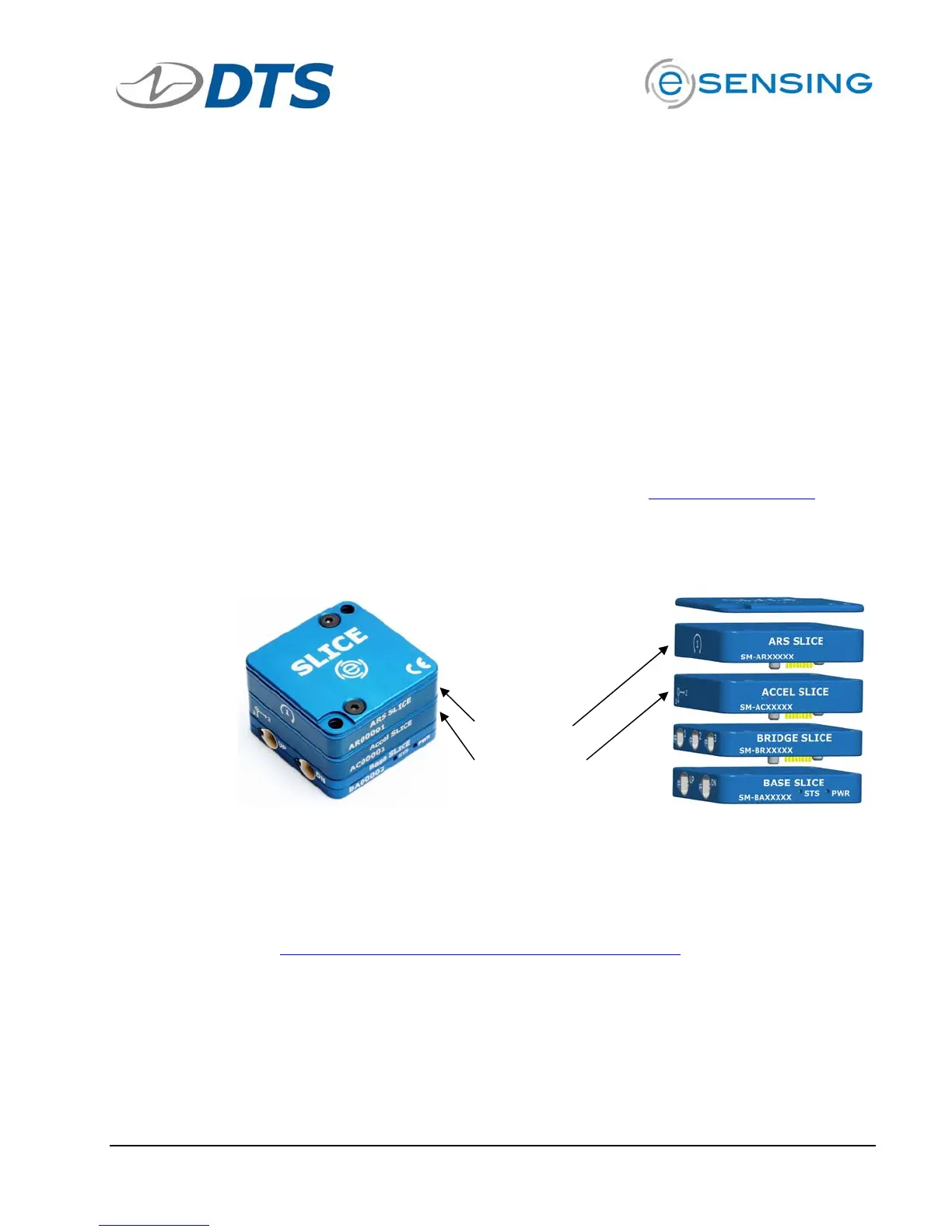

Accel and ARS
SLICEs can be
positioned in any
order in a SLICE
MICRO stack
ARS SLICE
ACCEL SLICE
