DTS SLICE NANO - Bridge SLICE; Iepe Slice

SLICE User’s Manual support@dtsweb.com
Version 1.0 - May 2010 9 ©DTS, Inc. - All Rights Reserved
2.3.2. Bridge SLICE
See Appendix B for detailed specifications.
Up to 8 Bridge SLICEs can be stacked on top of the Base SLICE. Each Bridge
SLICE has these components:
! 3 channels of analog input
! Sensor excitation
! 16 bit, 100 kHz ADC, one per channel
! Software adjustable gain, anti-alias filters, offset, and shunt check
! TEDS sensor ID

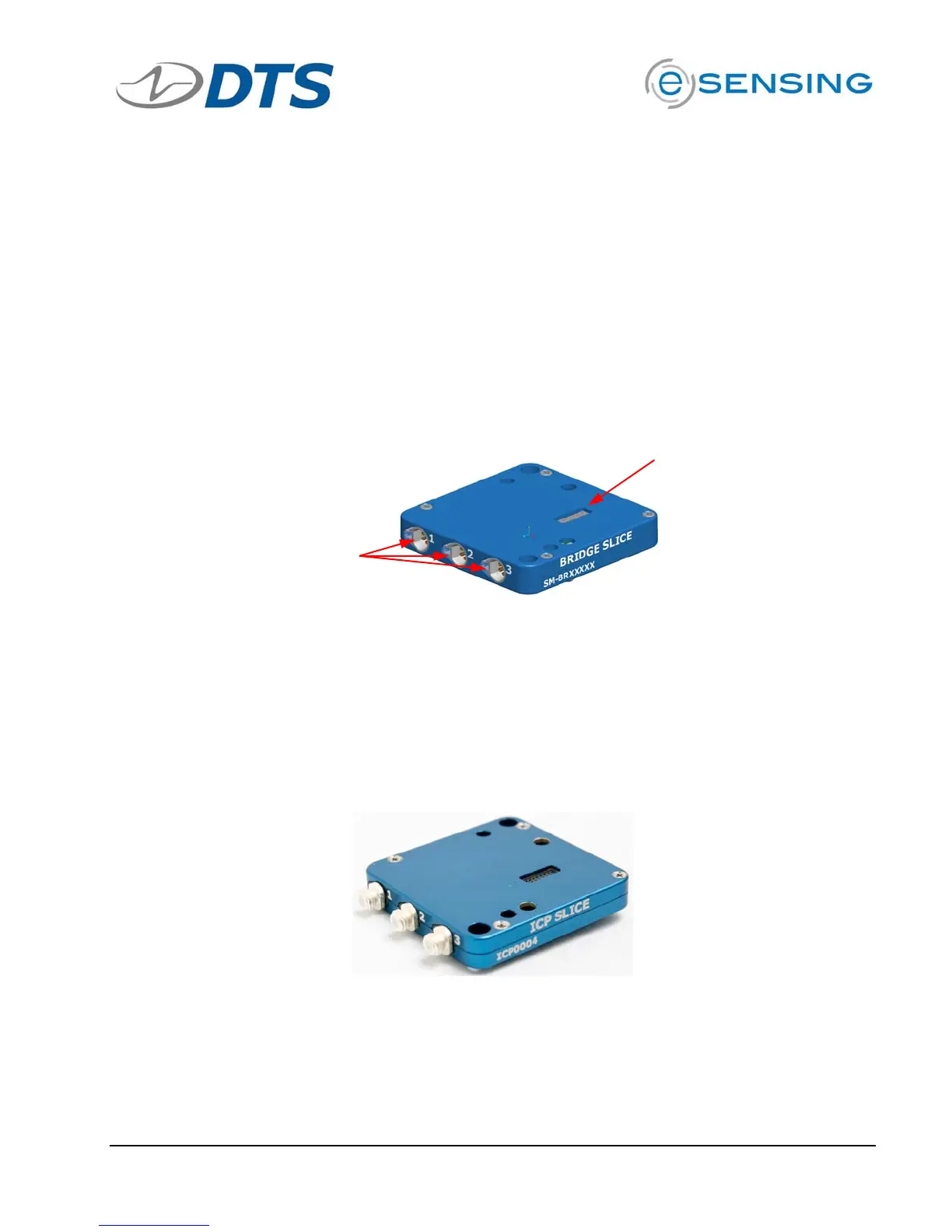

A Bridge SLICE MICRO is shown below.
2.3.3. IEPE SLICE
Available in fourth quarter 2010 in SLICE MICRO size only.
Features:
! 3 input channels
! Power: 26 VDC
! Current source: 2-4 mA
Sensor input
channels
Connector to
next Bridge
SLICE
