APPENDIX C – SLICE End-of-Chain Terminal support@dtsweb.com
©Diversified Technical Systems, Inc. - All Rights Reserved

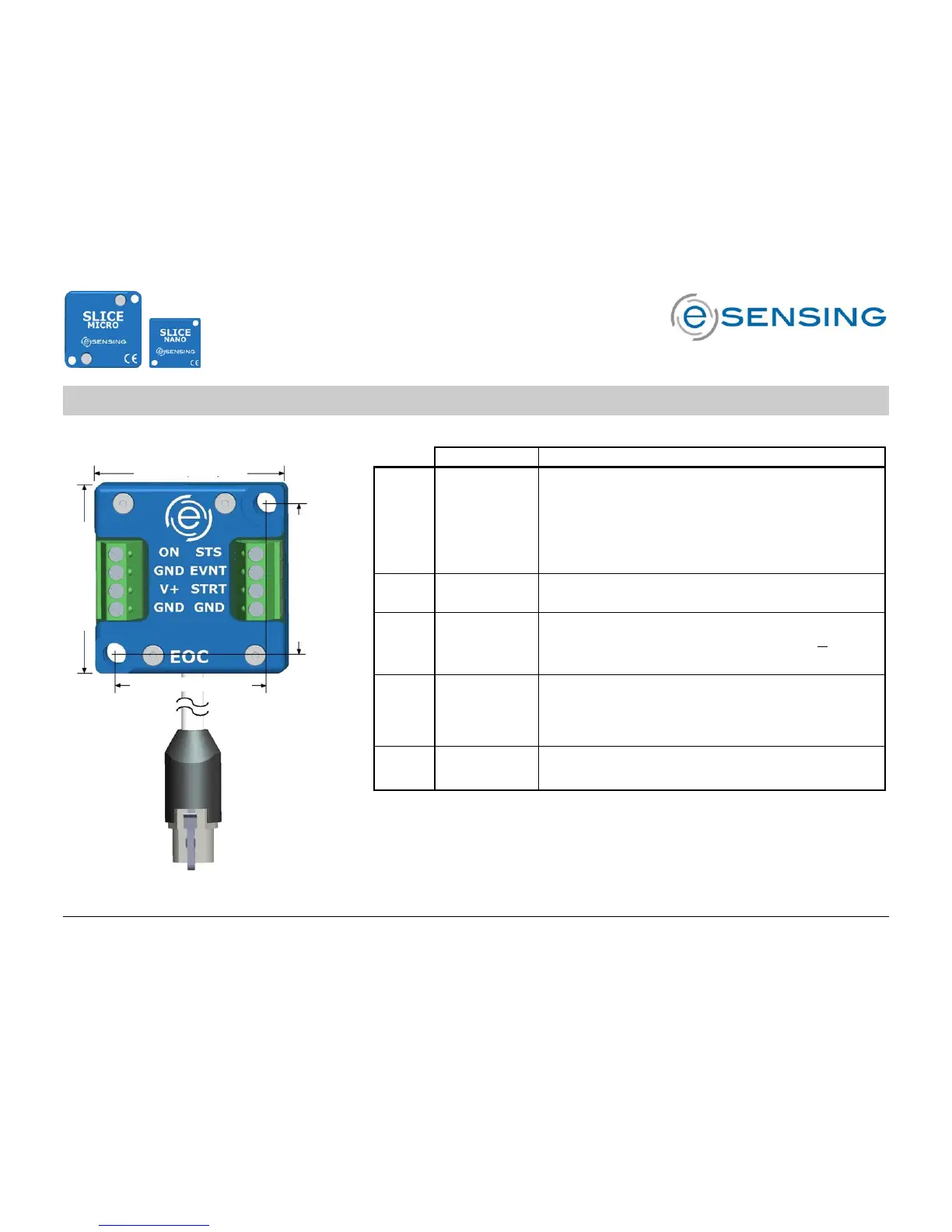

SLICE End-of-Chain Terminal
Contact closure = ON to GND (continuous)
If ON signal is removed and the system is not armed,
the system will turn off
If ON signal is removed and the system is armed, the
system will remain on and collect data (sufficient
input power permitting)
V+ Power input +V = input voltage (red)
-V = GND (black)
STS Status output 5 V logic-level output = STS to GND
Conditioned status output; LED direct drive (>
20 mA)
LED is on only when SLICE is collecting data
EVNT Event input Contact closure = EVNT to GND (momentary)
An EVNT signal can initiate data collection (circular
buffer mode) or mark an event within the data
collection window (recorder mode)
STRT Start record
input
Contact closure = STRT to GND (momentary)
A STRT signal initiates data collection (recorder mode)
Weight: 12 grams (without cabling)
20-30 AWG terminals.
All GND terminations are common.
Reverse polarity and overvoltage protection.
26 mm
