SLICE User’s Manual support@dtsweb.com
Version 1.0 - May 2010 20 ©DTS, Inc. - All Rights Reserved
3.5. Using the End-of-Chain (EOC) Terminal

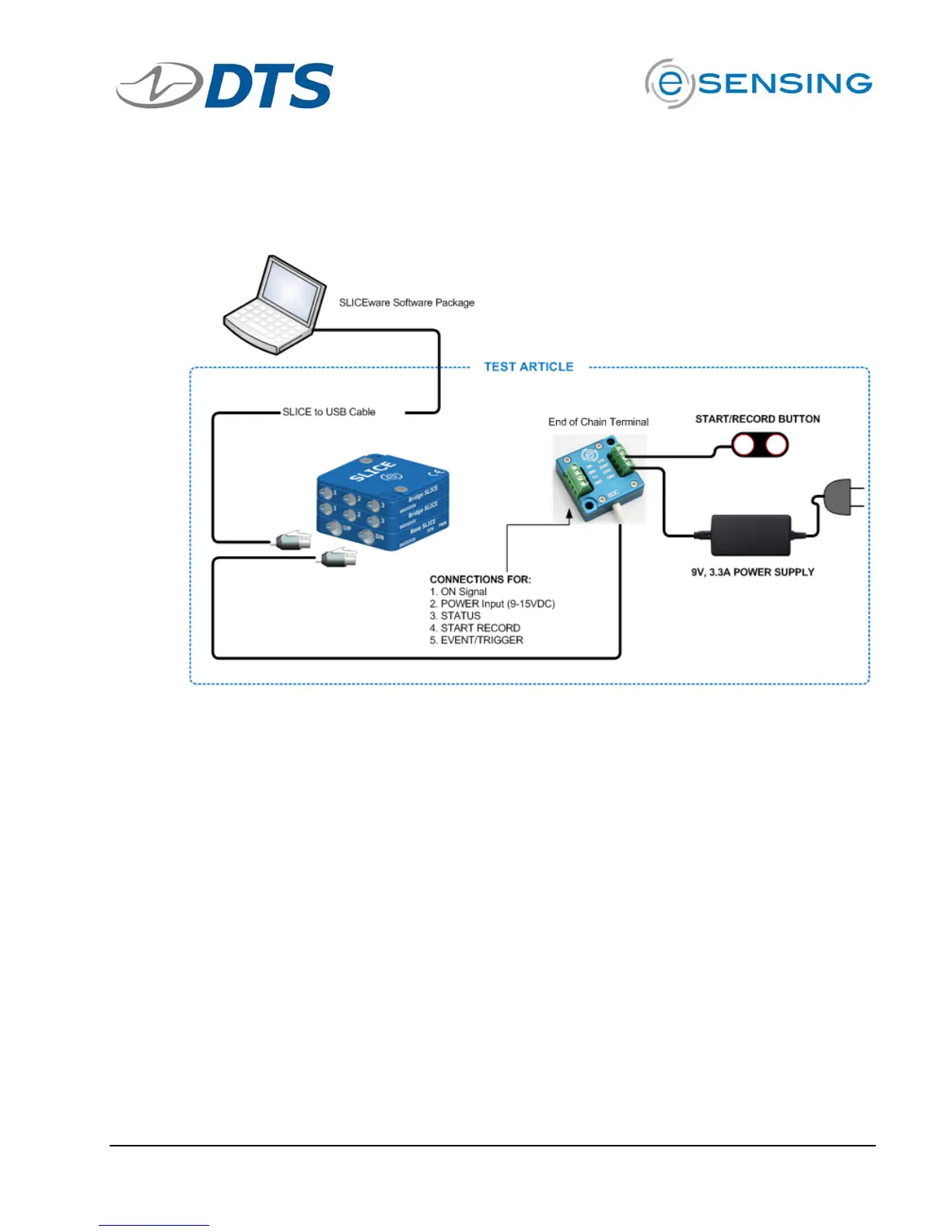

A diagram showing connections using the EOC Terminal is shown below.
Notes:
! Although this shows a SLICE MICRO system, connections with a SLICE NANO
are similar.
! The EOC Terminal is a shock rated item.
! Voltage input can be provided via the included power supply, a battery or any
voltage source between 9 and 15 VDC. Warning: Do not exceed the 15 VDC
input voltage range as damage may result.
! The ON terminal must be connected to the GND on the EOC Terminal for the
SLICE unit to turn on.
! If you connect an LED between the STS and GND terminals, you will get a
Status light when the system is armed.
