SLICE User’s Manual support@dtsweb.com

Connections:

! 2 SLICE stack chain

! 9 to 15 VDC input power

! ON signal

! Status output, start record input and event input signals

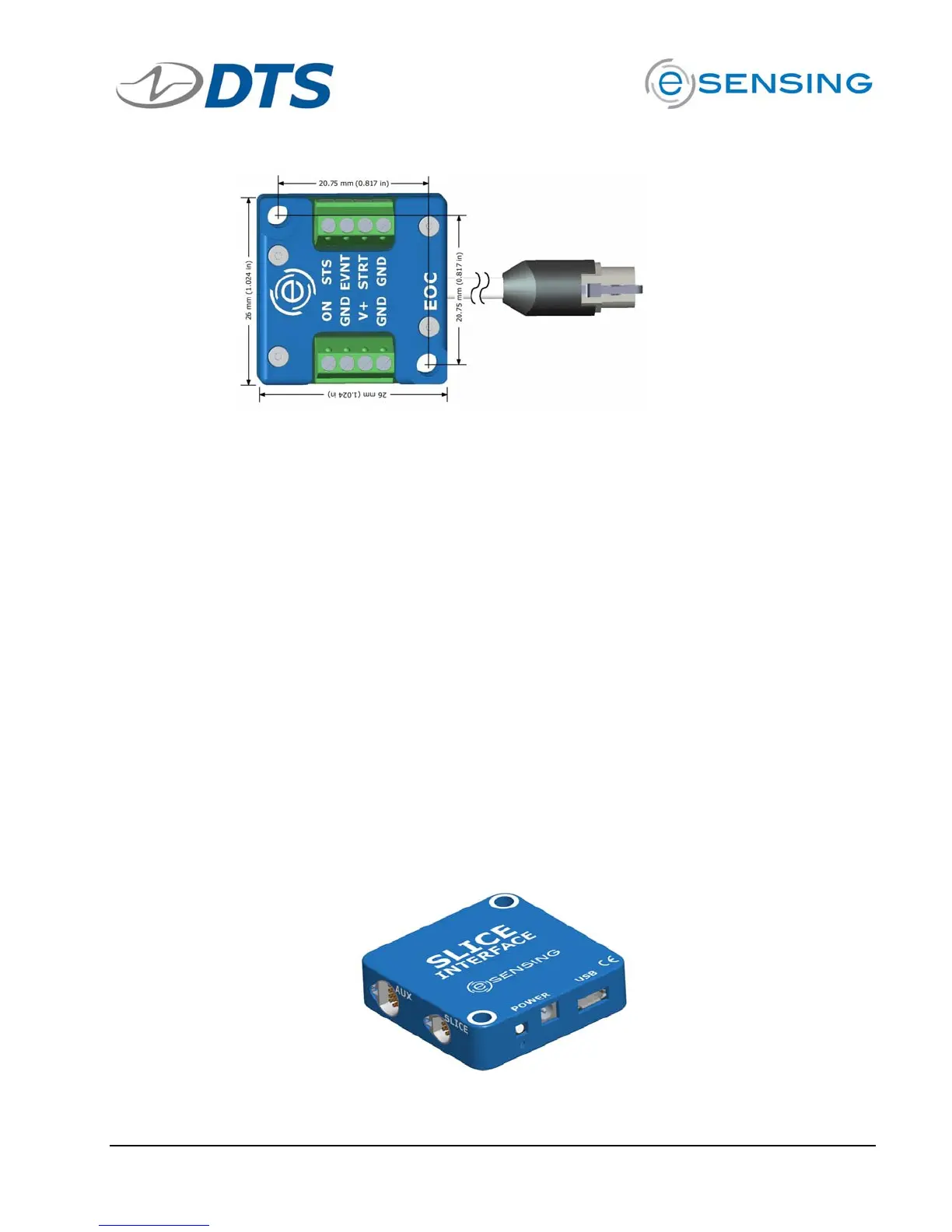

2.3.10. SLICE System Interface

See Appendix D for detailed specifications.

The SLICE System Interface allows the connection of one SLICE chain. It is

ruggedized for high shock use.

Maximum channels:

1 chain x 4 stacks x 8 Bridge SLICEs x 3 chan/Bridge = 96 channels

Connections:

! 1 SLICE stack chain

! USB communications

! 9 to 20 VDC input power

! ON/OFF switch

! AUX input (battery, trigger, etc.)

To DN port on Base

SLICE MICRO or NANO
