2.3.7. Battery SLICE

The Battery SLICE is connected to the bottom of the Base SLICE. It is only

available in the SLICE NANO version. The Battery SLICE is only a back-up

battery in case main power is lost. Specifications:

! 2 cell LiPo design, with charging directly from Base SLICE

! ~10 second run time

! Only 3.5 mm thick

2.3.8. Stack Extender

The Stack Extender is only available for the SLICE NANO package. The Stack

Extender allows the user to create a flatter, longer package.

2.3.9. End-of-Chain (EOC) Terminal

See Appendix C for detailed specifications.

The EOC Terminal provides the easiest method to attach a battery, trigger signal

and status lamp to the SLICE system. It is ruggedized for high shock use.

Maximum channels:

1 chain x 2 stacks x 8 Bridge SLICEs x 3 chan/Bridge = 48 channels

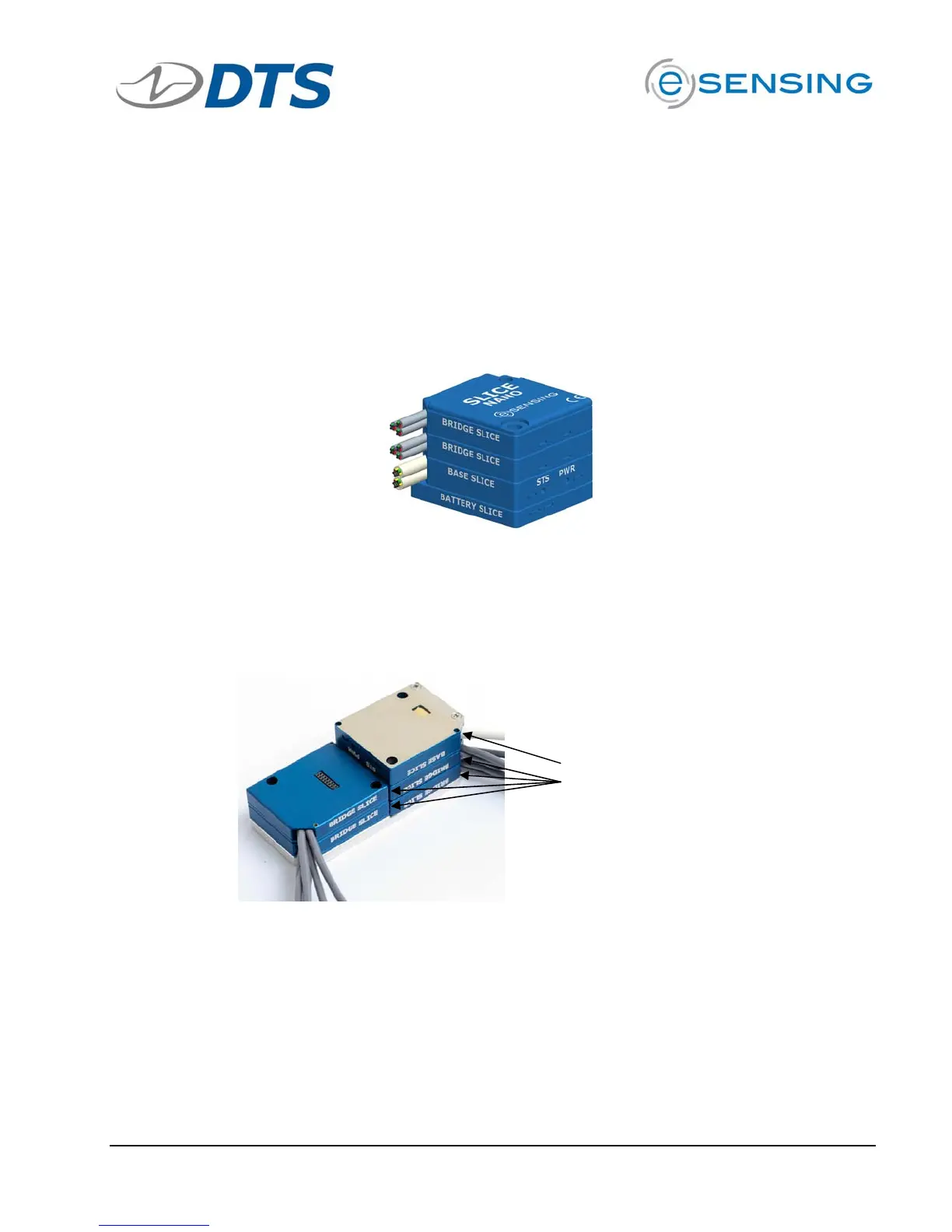

Stack Extender

! Example: 12 channel system

! 1 Base SLICE

! 4 Bridge SLICEs
