4.2. Supported Sensor Types
The Bridge SLICE supplies 5 VDC excitation up to 20 mA and supports many types of
accelerometers, load cells, pressure sensors and other sensor types. The following
general sensor types are supported:
! Full (4-wire) or half bridge (2- or 3-wire) resistive and piezo-resistive types
! Voltage input: Input range 0.1 to 4.9 V; larger range with voltage expander
circuit
! Conditioned sensors with 5 V excitation and 2.5 V centered signal output
The IEPE SLICE MICRO (fourth quarter 2010) will support common piezo-electric
sensor types.
If you have questions regarding what sensors are supported please contact
support@dtsweb.com
and provide the sensor manufacturer and model number if
available.
5. Software
This section covers software installation and use.
See Appendix J for additional software reference information regarding files formats and
firmware updates.
5.1. Basic Requirements
SLICEWare is a Windows
®
based program. Minimum PC specifications are:
! Windows XP, Windows Vista, or Windows 7 32-bit. 64-bit support is coming
soon
! 1 GHz or faster processor
! 2 GByte RAM minimum. More RAM is important for longer/higher sample rate
data acquisition.
! 100 MByte disk space for Software plus storage for test data
! 1024 x 768 minimum screen resolution

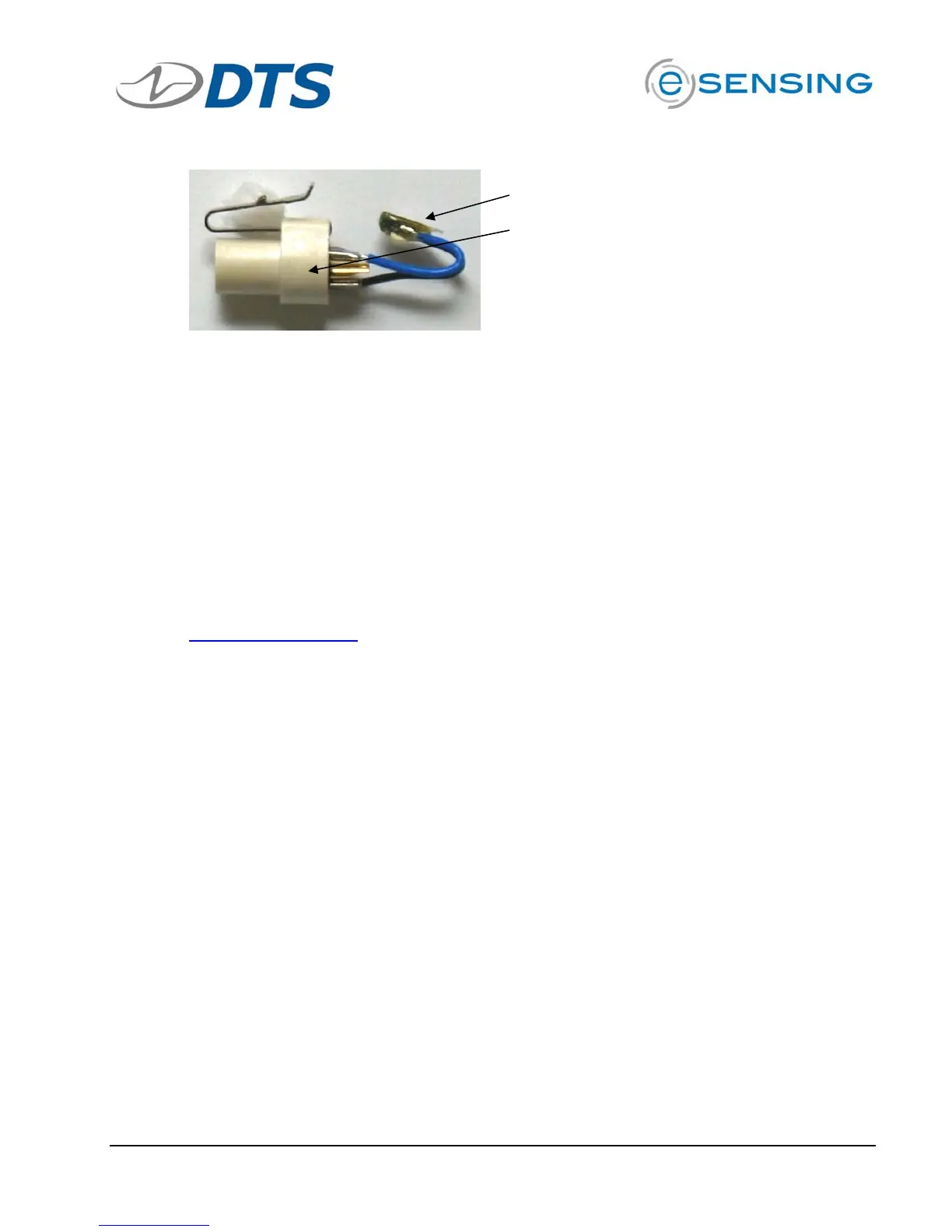

EID “microcard” soldered to pins 4 and 6
Omnetics 7-pin Sensor Connector
