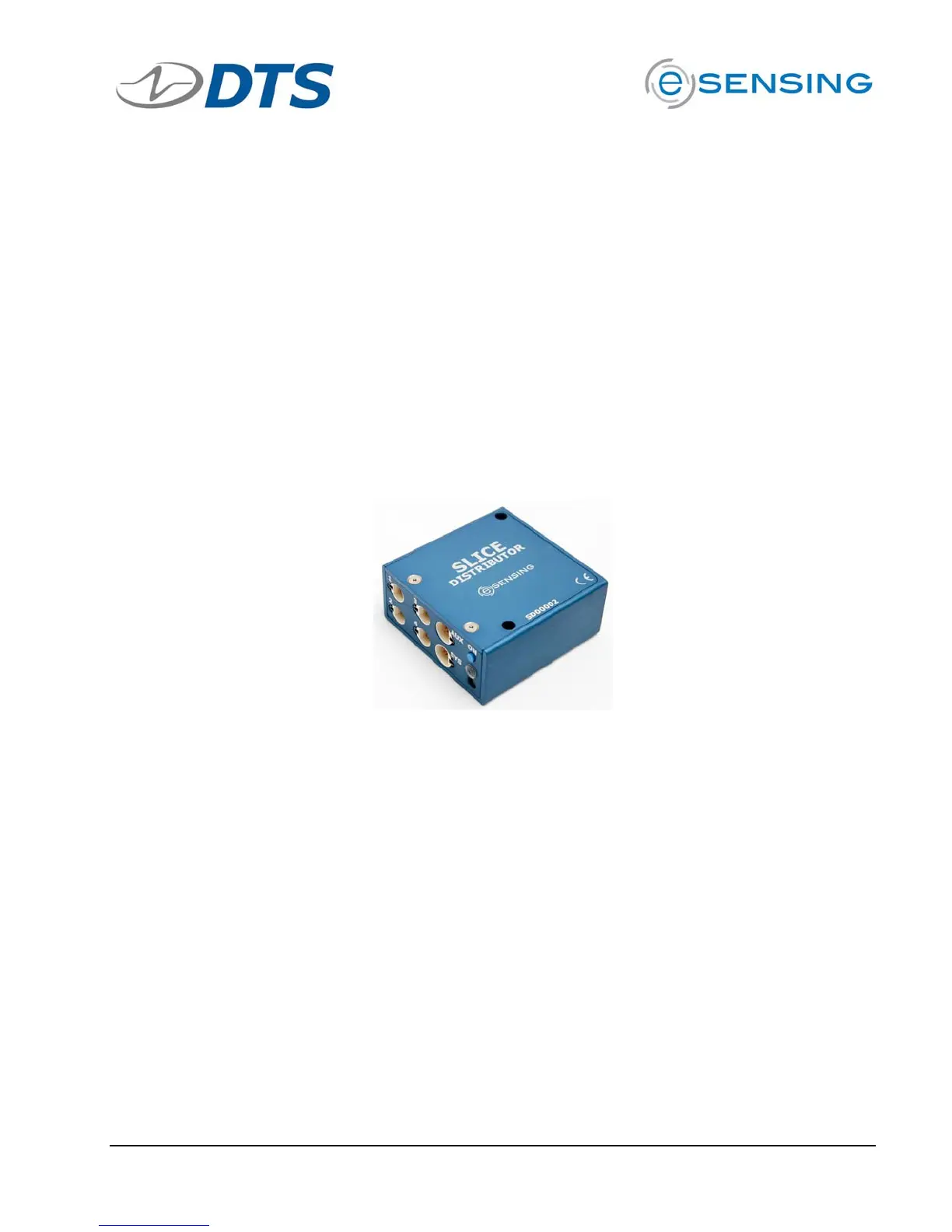

2.3.11. SLICE Distributor

See Appendix E for detailed specifications.

The SLICE Distributor allows the connection of up to four SLICE chains. It is

ruggedized for high shock use.

Maximum channels:

4 chains x 4 stacks x 8 Bridge SLICEs x 3 chan/Bridge = 384 channels

Connections:

! 4 SLICE stack chains

! Ethernet communications

! 9 to 20 VDC input power

! ON/OFF switch

! AUX input (battery, trigger, etc.)

2.3.12. SLICE USB Interface

See Appendix F for detailed specifications.

The SLICE USB Interface allows the connection of one SLICE chain. It is meant

for bench-top use and is not ruggedized.

Maximum channels:

1 chain x 4 stacks x 8 Bridge SLICEs x 3 chan/Bridge = 96 channels

Connections:

! 1 SLICE stack chain

! USB communications

! 9 to 15 VDC input power

! ON/OFF switch

! Manual Start/Event

! AUX input (battery, trigger, etc.)
