Version 1.0 - May 2010 15 ©DTS, Inc. - All Rights Reserved
2.3.14. SLICE MICRO and NANO Connectors
See Section 3 for more connector information.
SLICE systems use lightweight, rugged plastic connectors with reliable, gold
plated contacts. These are a MIL-STD-type pin and socket configuration where
the socket is exposed, instead of the pin, which is mechanically more robust.
For some bench-top units, LEMO-style as well as industry standard USB,
Ethernet and SubD connectors are used.

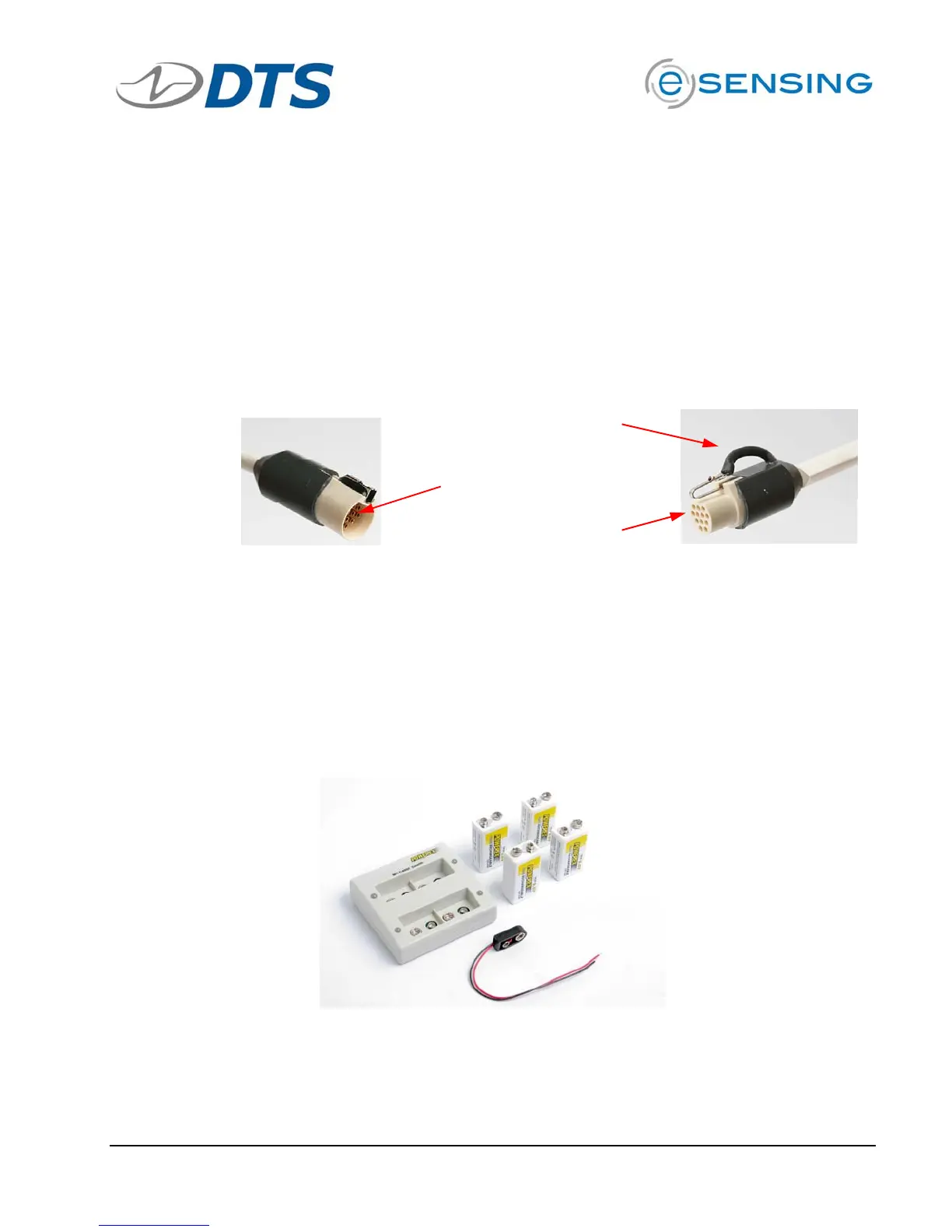

A typical SLICE rugged plastic connector is shown below.
2.4. Batteries
DTS offers some commercial-off-the-shelf batteries for operation of SLICE systems.
Batteries must be disconnected from the SLICE system before connecting to a charger.
2.4.1. 9.6 V Rechargeable NiMH Batteries
! Allows up to 40 min runtime with a 6 channel SLICE System.
! Package of 4 batteries ensures you’ll always have back-ups ready to use.
Finger actuated
retention latch
Recessed
ins
Ex
osed sockets
