SLICE USB Interface (UI)
support@dtsweb.com March 2010
+1 562 493 0158 ©Diversified Technical Systems, Inc. - All Rights Reserved

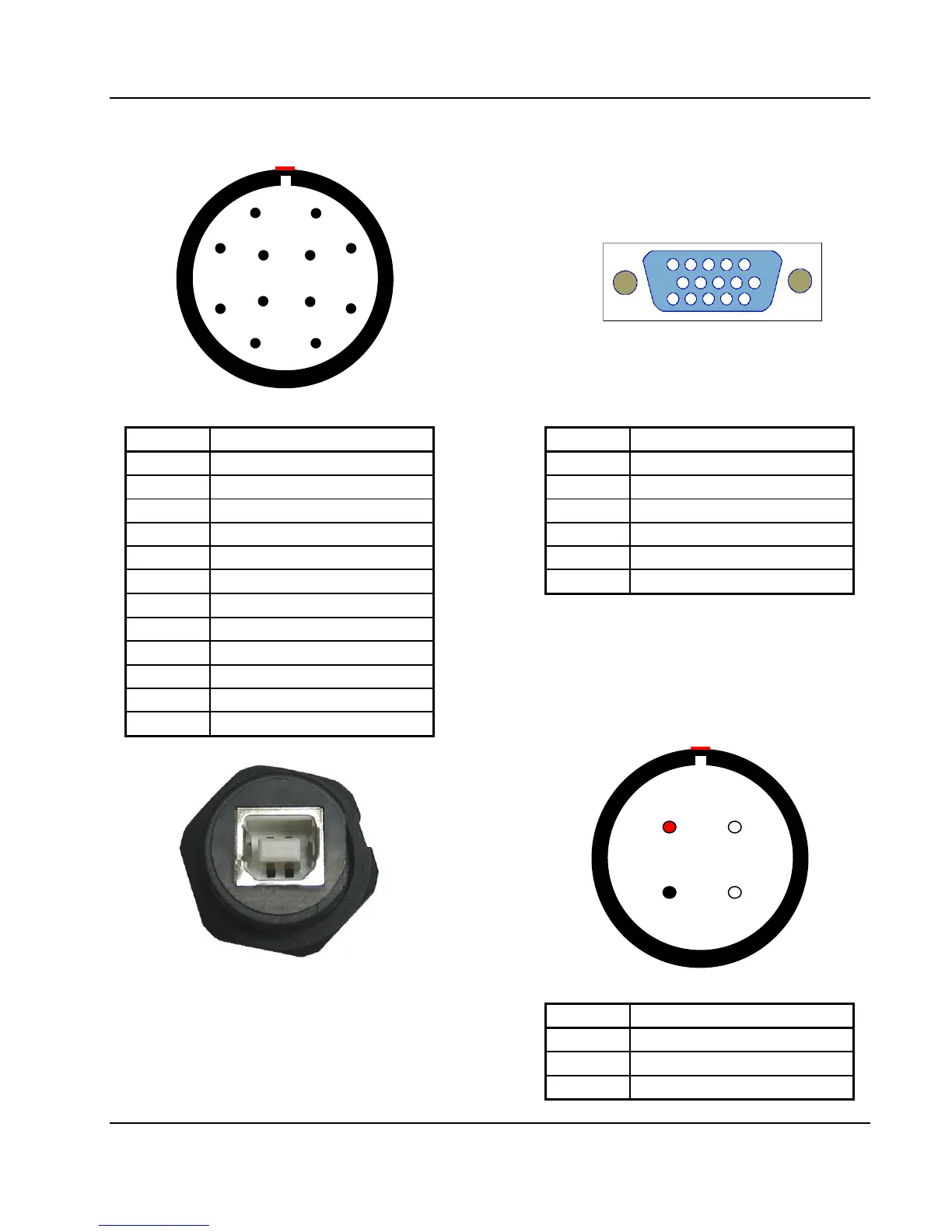

SLICE AUX
(ECG.2B.312.CLL) DB15F (high density)
(panel view) (panel view)
Pin Function Pin Function
1 /ON 1 /START, CC to ground
2 /START 2 +Status out
3 /EVENT 3 /EVENT, CC to ground
4 STATUS 6 Ground
5 12.6 VDC out 7 -Status out
6 12.6 VDC out 8 Ground
7 Ground
8 Ground
9 USB power
10 USB_DP
11 USB_DM 15V IN
12 Ground (ECG.2B.304.CLL)
This is a standard USB (“B”) inter-
face. A commercial, off-the-shelf
USB cable is acceptable.
(panel view)
Pin Function
1 +Power (15 VDC)
2 -Power/Ground
3, 4 Ground
1
2
3
4
1
2
3
11
12
4 5
6
7
8
9
10
1
5
6
10
15
11
