SLICE Ethernet Interface (EI)
support@dtsweb.com March 2010
+1 562 493 0158 ©Diversified Technical Systems, Inc. - All Rights Reserved

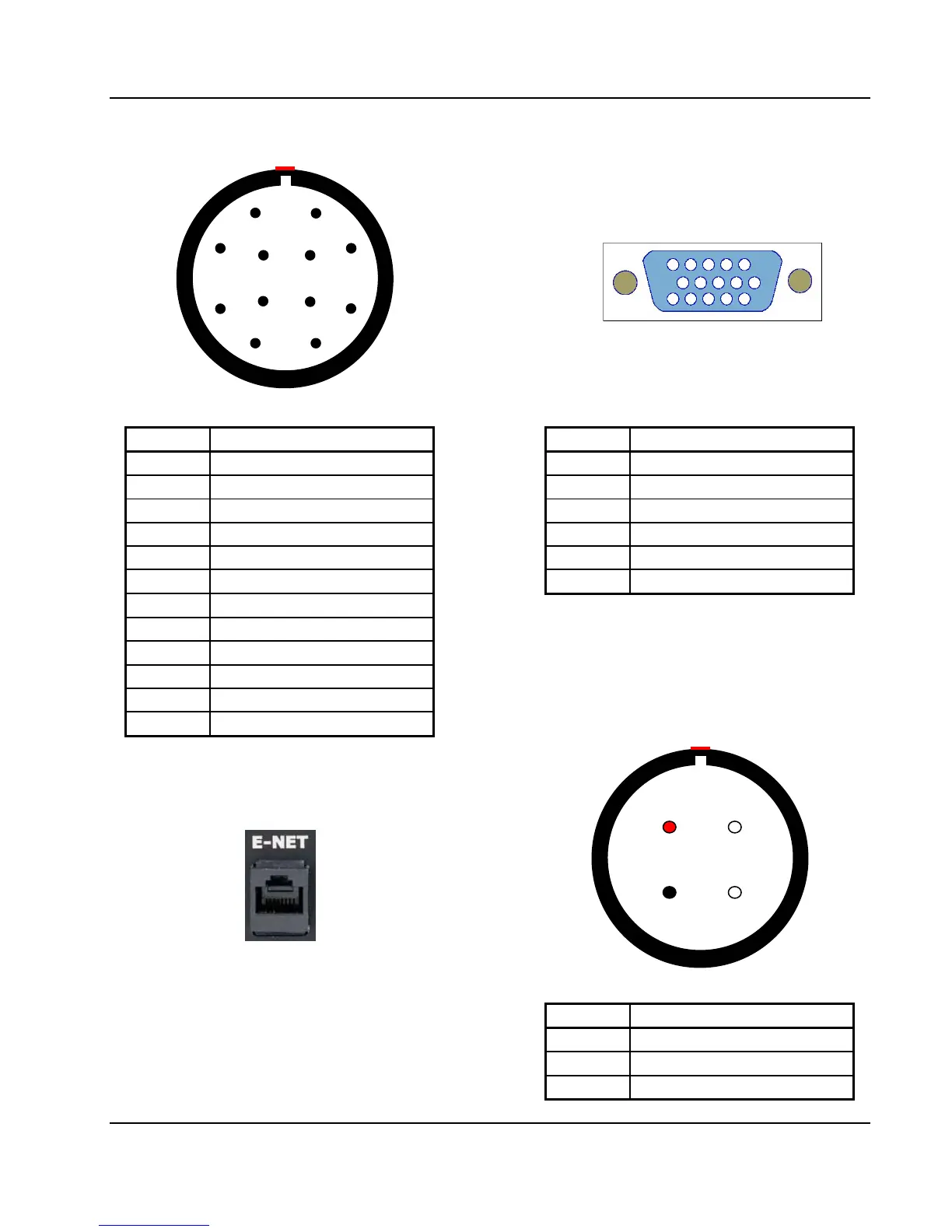

SLICE 1 / SLICE 2 AUX
(ECG.2B.312.CLL) DB15F (high density)
(panel view) (panel view)
Pin Function Pin Function
1 /ON 1 /START, CC to ground
2 /START 2 +Status out
3 /EVENT 3 /EVENT, CC to ground
4 STATUS 6 Ground
5 6.5-15 VDC out 7 -Status out
6 6.5-15 VDC out 8 Ground
7 Ground
8 Ground
9 USB power
10 USB_DP
11 USB_DM 15V IN
12 Ground (ECG.2B.304.CLL)
This is a standard Ethernet (RJ45)
interface. A commercial, off-the-
shelf patch cable is acceptable.
(panel view)
Pin Function
1 +Power (9-15 VDC range)
2 -Power/Ground
3, 4 Ground
1
2
3
4
1
2
3
11
12
4 5
6
7
8
9
10
1
5
6
10
15
11
