Adjusting the position of the gearchange
pedal and rear brake pedal
The position of the gearchange and rear brake pedals
in relation to the footrests can be adjusted to suit the
requirements of the rider.
Adjust the pedals as follows:
Gear change pedal
Hold end (1) on the rod, then work flat (2) using an
open-end wrench and slacken lock nut (3).
Loosen screw (4), so as to release the complete rod
from the gearchange lever.
Turn rod (5), setting the gearchange pedal to the
required position.
Fasten gearchange lever to rod (5) using screw (4).
Tighten lock nut (3) against the ball terminal (1).

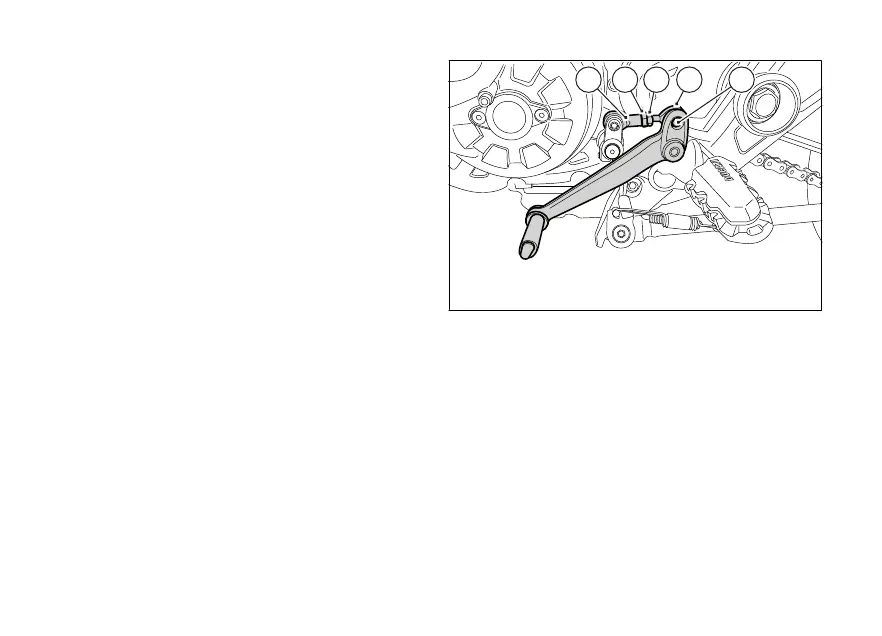

Fig. 87
