Clutch control free play adjustment
Warning
A wrong adjustment can seriously affect the
clutch operation and service life.
A worn clutch tensions the clutch cable.
Always check the free play, with cold engine, before
using the vehicle.
When operating the clutch lever, you must clearly feel
the passage from a very low resistance to a very high
resistance (operating force).
The free play corresponds to the lever travel where
the clutch resistance force is very low.
To check the free play operate the lever for its free play
and check that distance "A" is between 3 - 4 mm (0.12
- 0.16 in).
To adjust the free play to the recommended value
work on the primary adjuster (2) close to the clutch
control.

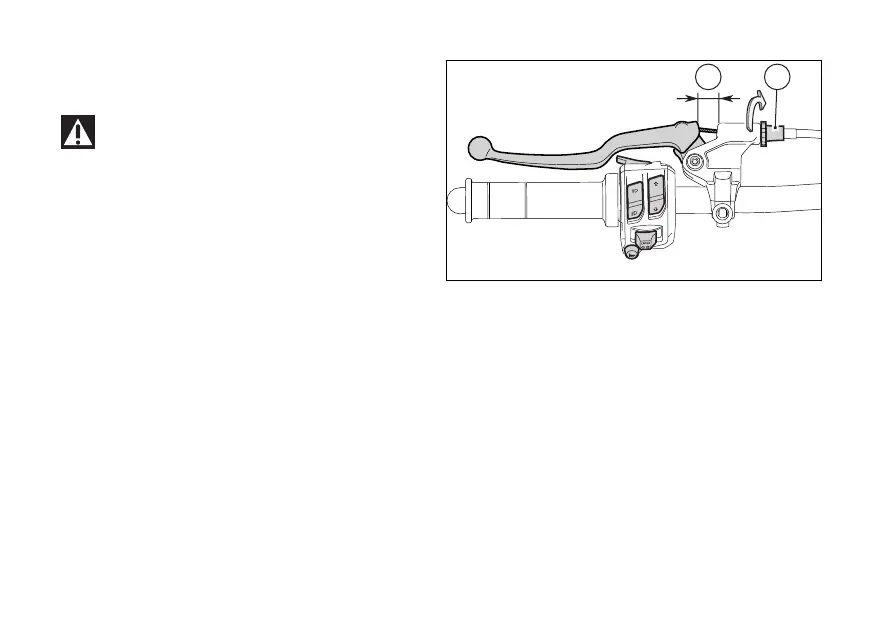

Fig. 134
