Fuses
Electric components are protected by eleven fuses
located in the fuse box. There are three spare fuses in
every box. Above the solenoid starter there are two
30 A fuses, whereas on its sides there are two ABS
fuses: a 25 A and a 30 A one.

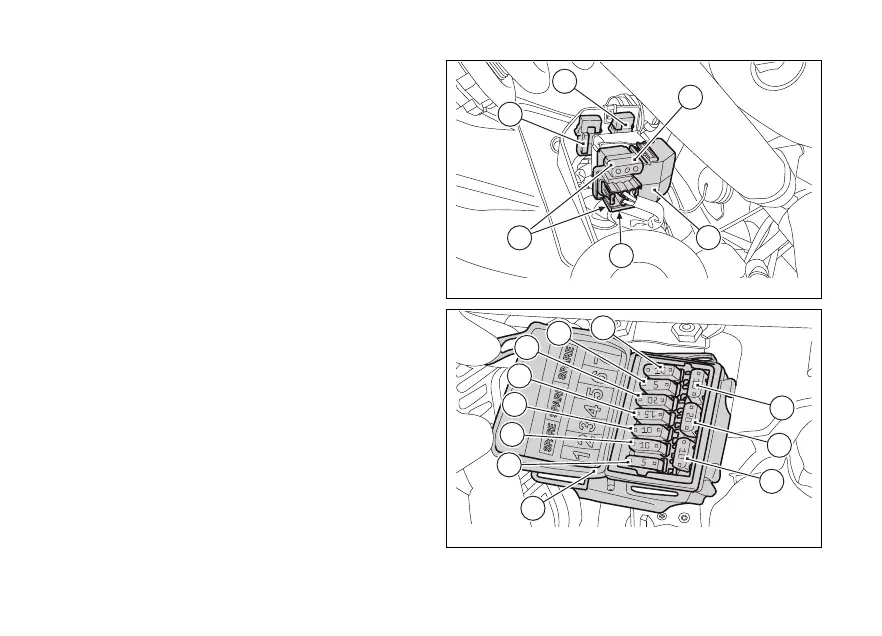

The fuse boxes are located on the RH central side,
under the RH side cover. Fuse box (A) is on the LH
side, whereas fuse box (B) is on the RH side. To
expose the fuses, lift the box protective covers.
Mounting position and ampere capacity are marked
on box cover. Refer to the table below to identify the
circuits protected by the various fuses and their
ratings.
Fig. 214
Fig. 215
285
