The main fuses (C) (an active and a spare one) are
located on solenoid starter (D). Remove the fuse
protection cap (E) to reach the fuses.
A blown fuse can be identified by breakage of the
inner filament (F).
Near the solenoid starter there are two fuses: a 25 A
(G) fuse and a 30 A (H) one.
Important
Switch the ignition key to OFF before replacing
the fuse to avoid possible short-circuits.
Warning
Never use a fuse with a rating other than
specified. Failure to observe this rule may damage
the electric system or even cause fire.

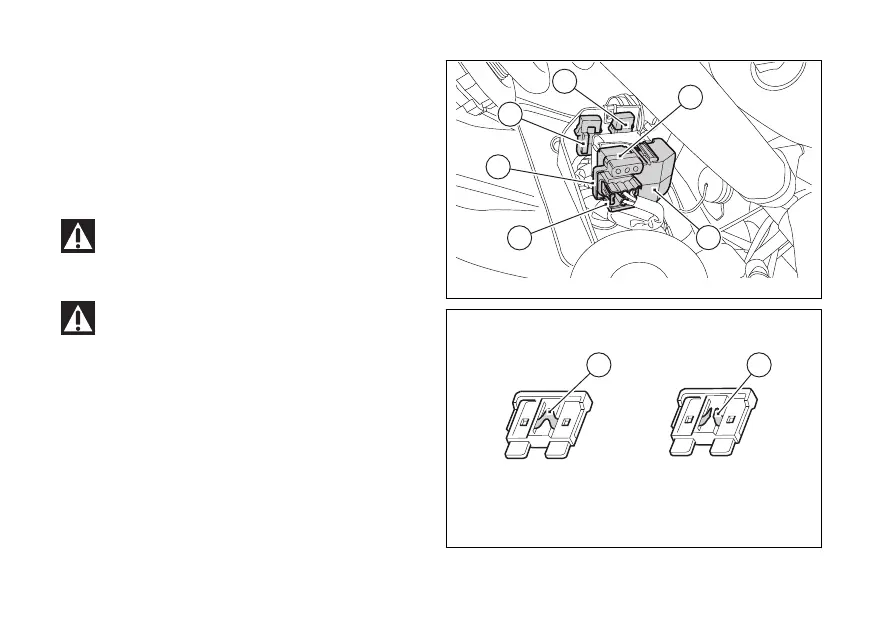

Fig. 216
Fig. 217
