Installation and Operation of Flexible Batch Broiler – Electric
1
11
12
13
9
10
2
3
4 5 6 7
8
16
15
C. BROILER ASSEMBLY
Before assembling and installing the broiler, please
checktomakesurethatallnecessarypartsarepresent.
Setup

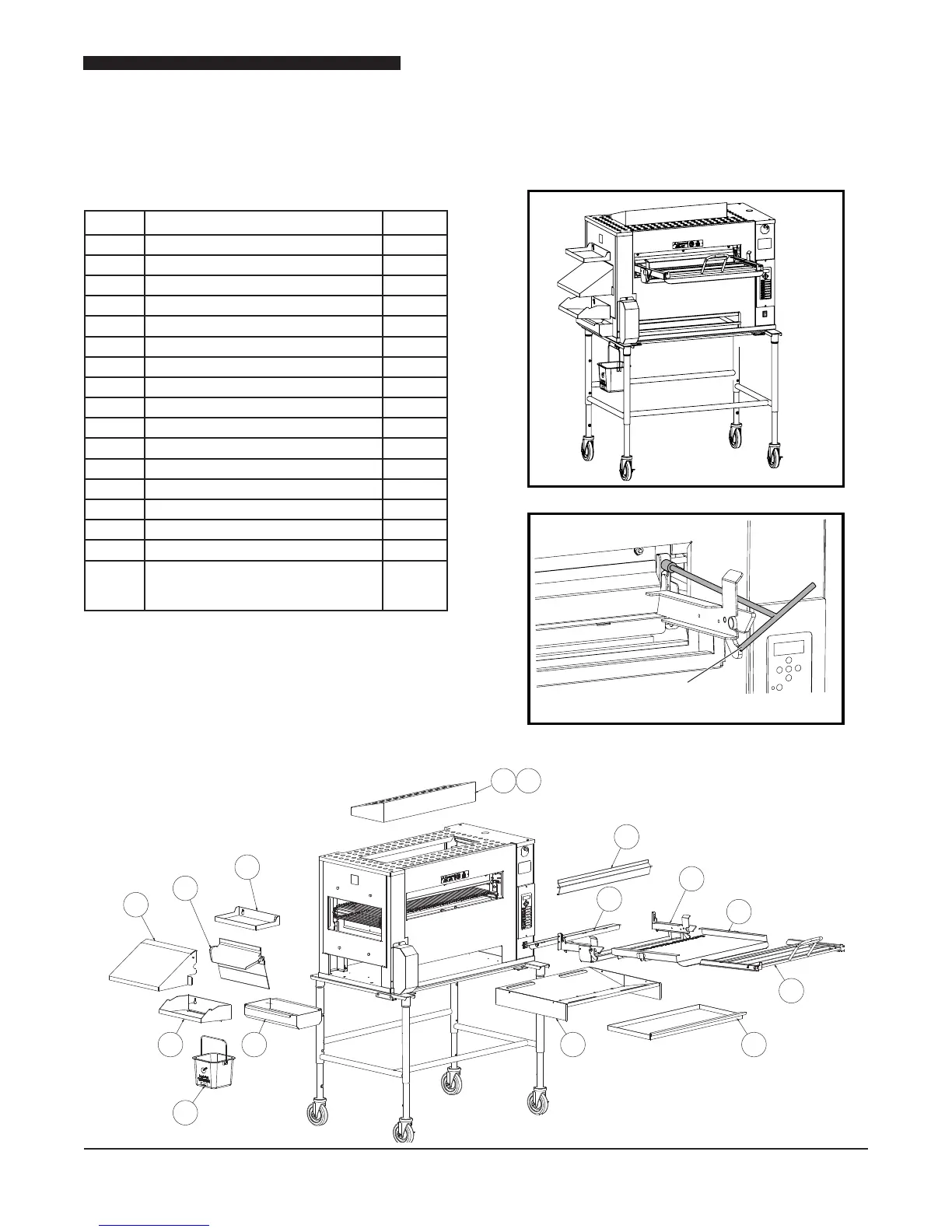

Install all items as shown below.
Loader Install Tool
(Included with Broiler Tools Kit)
ITEM PART NAME PT. NO.
1 PRODUCTPANSHELF 175353
2 DISCHARGECHUTE 175340
3 DISCHARGEHOOD 175778
4 DISCHARGEPANHOLDER 175358
5 DISCHARGEGREASEPAN 175357
6 “V” GREASE PAN 177011
7 MAIN GREASE PAN 175329
8 LOADER 175444
9 LOADERTRAY 175430
10 LOADERBRACKET 175438
11 DOOR 175429
12 LOADERRAMP 175741
13 IMPEDANCE PAN 175226
14 CATALYST(OPTIONAL) 175480
15 CATALYSTGUARD(OPTIONAL) 175482
16 SANITATIONPAIL 175842
17 KIT,CLEANINGTOOLS/INSTALLATION
TOOLCLEANING–LOADERINSTALL
WRENCH,ALLEN,3/16"
600225
