27

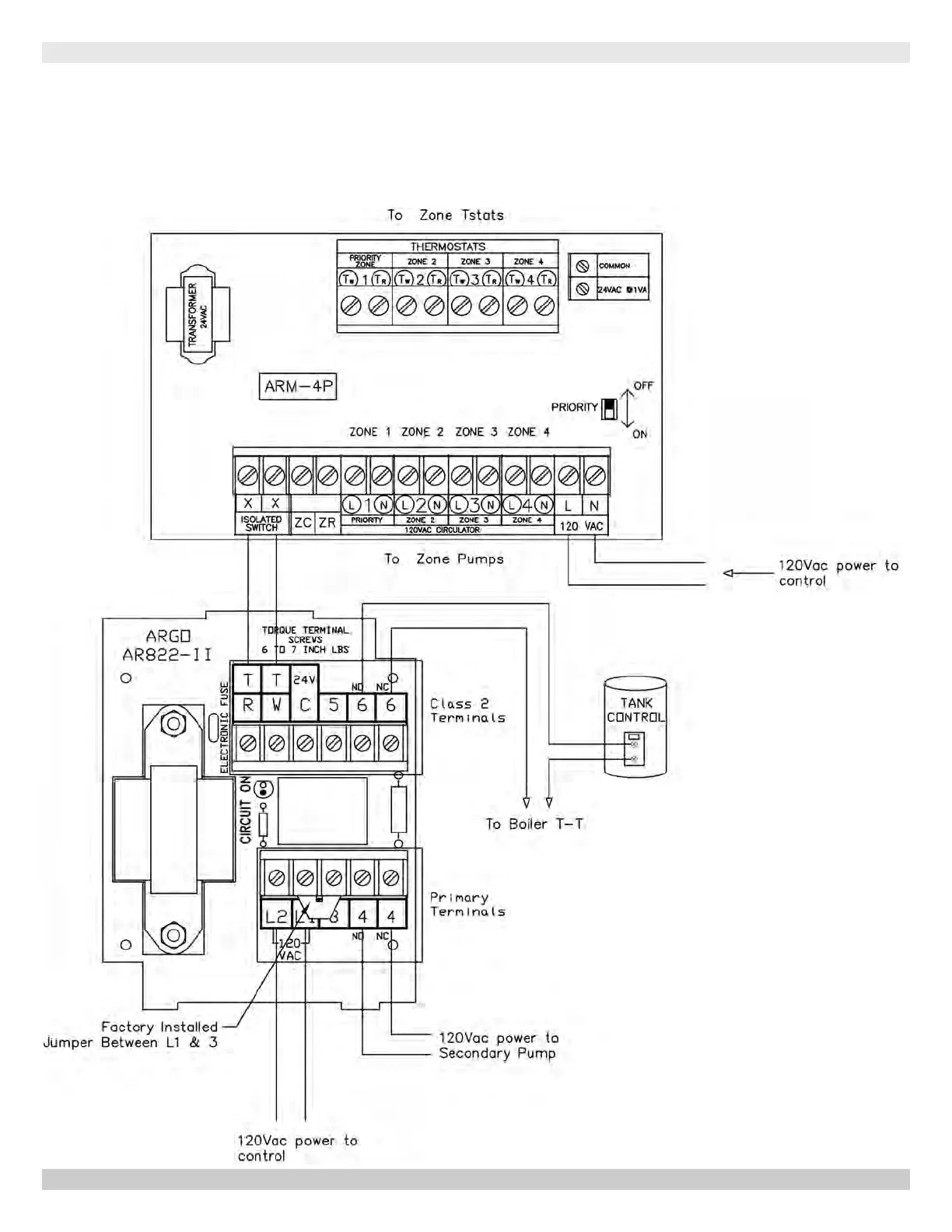

EXTERNAL BUFFER TANK - WIRING DIAGRAM
Buffer Tank Pump Wiring
Controlling A Primary Pump On A Combi Boiler With
Zone Pumps, Argo ARM 4P Zone Control and A822-II
PN 240012875 REV. B [07/01/2021]
