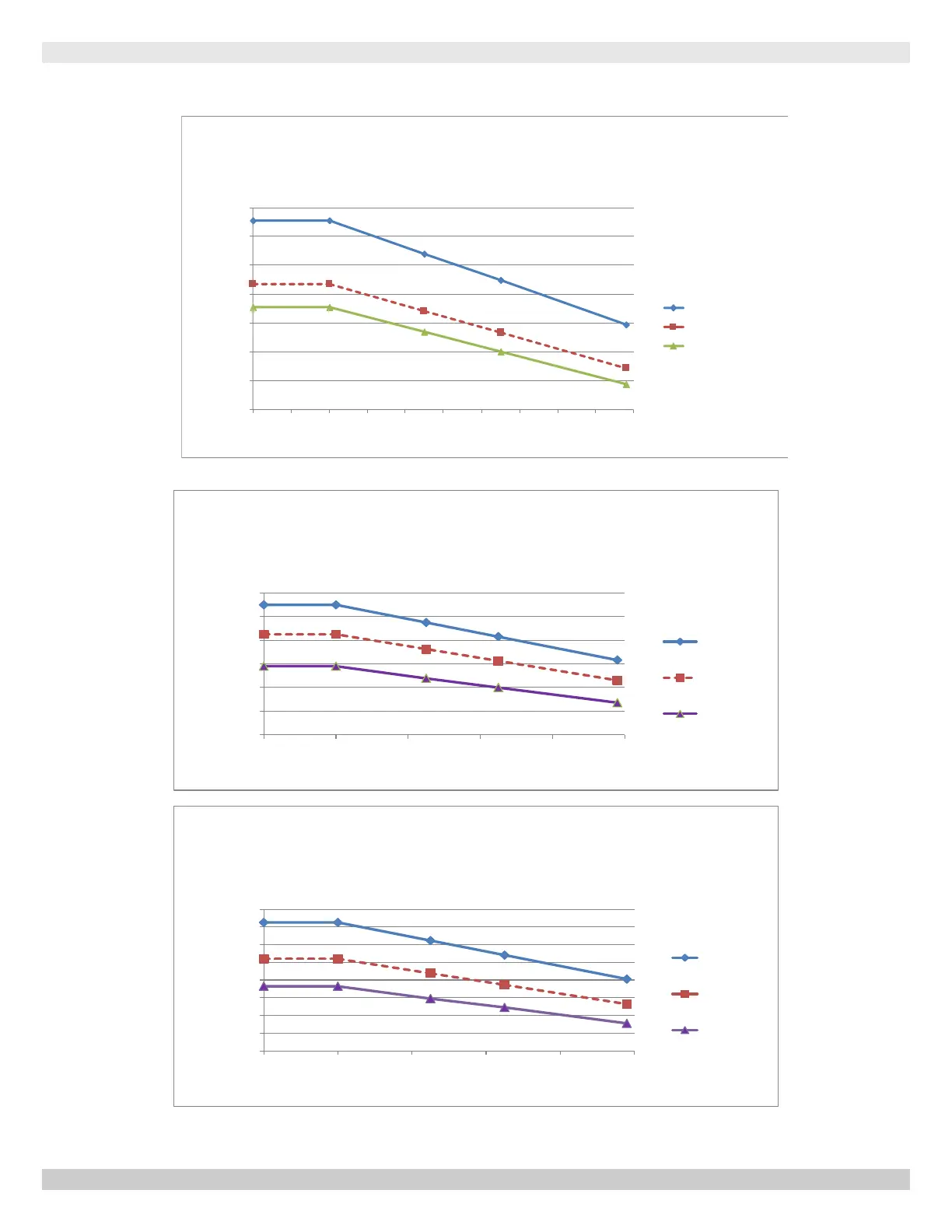

ALTITUDE EFFECTS ON BOILER PERFORMANCE
40,000
60,000
80,000
100,000
120,000
140,000
160,000
0 2,000 4,000 6,000 8,000 10,000
BOILER INPUT (BTUH)
ALTITUDE (FEET)
MODELS 125/150
CALCULATED EFFECTS OF HI-ALTITUDE ON BOILER
PERFORMANCE
DHW MODE
HEAT MODE
NET RATNG
HEAT MODE
60,000
80,000
100,000
120,000
140,000
160,000
180,000
200,000
220,000
0 2,000 4,000 6,000 8,000 10,000
BOILER INPUT (BTUH)
ALTITUDE (FEET)
MODELS 165/205
CALCULATED EFFECTS OF HI-ALTITUDE ON BOILER
PERFORMANCE
DHW MODE
HEAT MODE
NET RATNG
HEAT MODE
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
0 1,000 2,000 3,000 4,000 5,000 6,000 7,000 8,000 9,000 10,000
BOILER INPUT (BTUH)
ALTITUDE (FEET)
MAC-115
CALCULATED EFFECTS OF HI-ALTITUDE ON BOILER
PERFORMANCE
DHW MODE
HEAT MODE
Net Rating Heat Mode
MODELS 100/115
