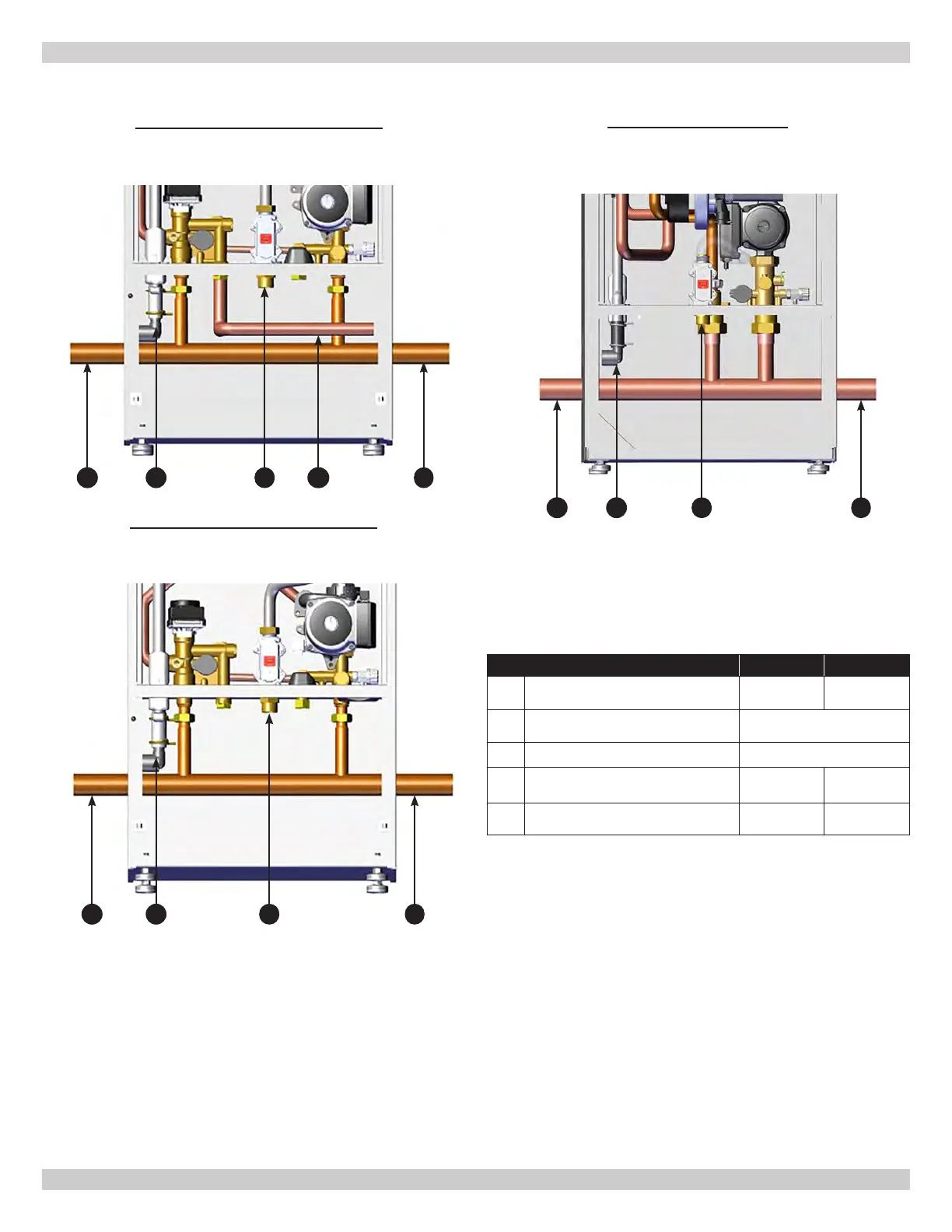

LABOR SAVING PIPING MANIFOLDS / NEAR BOILER PIPING CONNECTIONS
LEGEND 100/125 165
A
Heating supply connection

sweat
[31.75 mm]
 sweat
[38.1 mm]
B
Drain Connection for condensate 3/4" NPT [22.2 mm]
C
Gas shutoff connection 3/4" NPT [22.2 mm]
D
Optional Indirect DHW connection
(may exit right or left)
3/4"
sweat
[22.2 mm]
NA
E Heating return connection

sweat
[31.75 mm]
 sweat
[38.1 mm]
100F & 125F HEATING ONLY
WITH OPTIONAL INDIRECT DHW
CONNECTION
100F & 125F HEATING ONLY
WITHOUT OPTIONAL INDIRECT
DHW CONNECTION
165F HEATING ONLY
WITHOUT INDIRECT DHW
CONNECTION
E
E
E
A
A
A
DC
C
C
B
B
B
