5

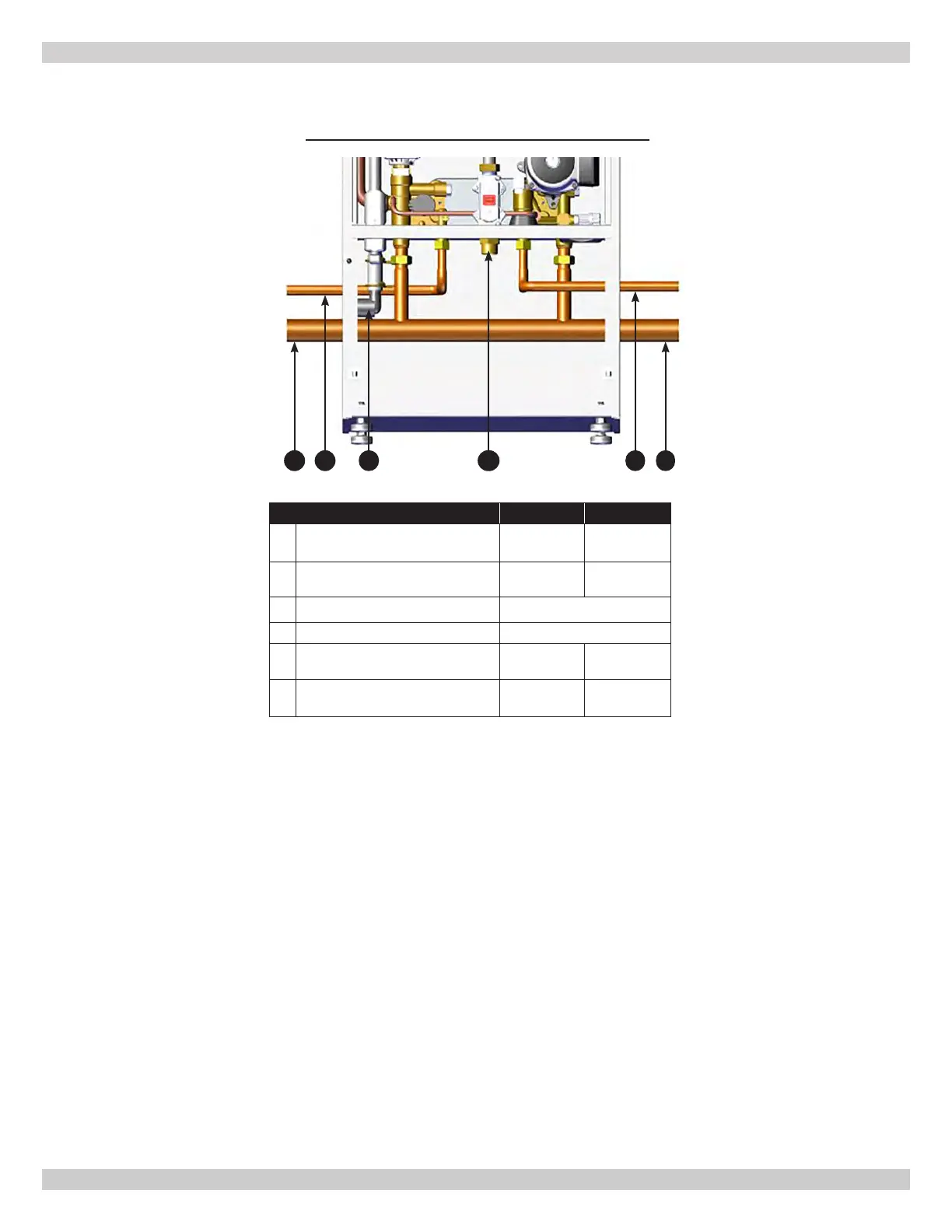

LABOR SAVING PIPING MANIFOLDS / NEAR BOILER PIPING CONNECTIONS
115F & 150F/205F COMBI (150 shown)
LEGEND 150 205
A
Heating supply connection
sweat
[31.75 mm]
sweat
[38.1 mm]
B
DHW outlet
1/2"
sweat
[12.7 mm]
3/4"
sweat
[19.1 mm]
C
Drain connection for condensate 3/4" NPT
[22.2mm]
D
Gas shutoff connection 3/4" NPT
[22.2 mm]
E
Cold DHW inlet tap
sweat
[12.7 mm]
3/4"
sweat
[22.2 mm]
F
Heating return connection
sweat
[31.75 mm]
sweat
[38.1 mm]
E FA DCB
PN 240012875 REV. B [07/01/2021]
