16
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

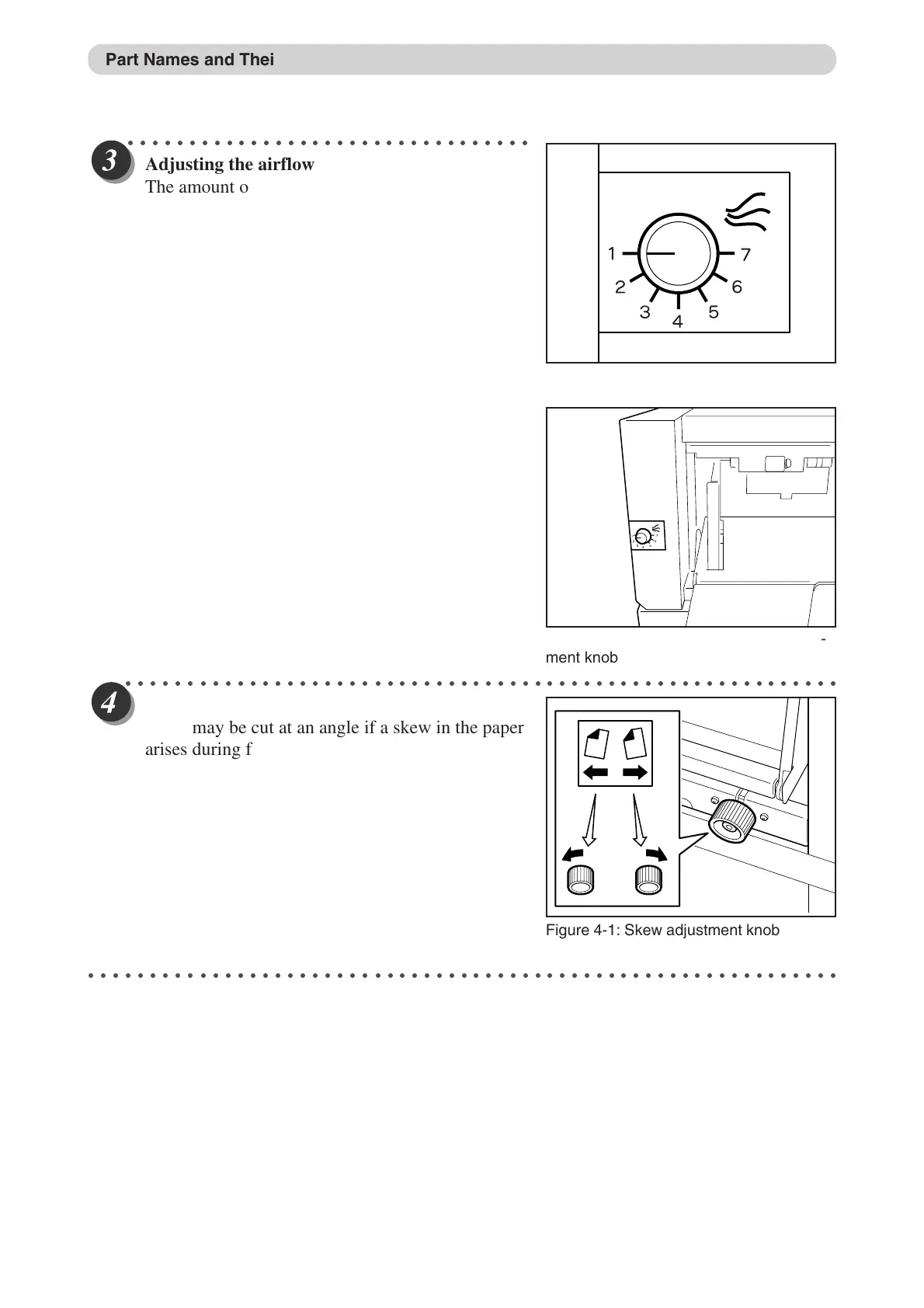

Adjusting the airflow
The amount of airflow should be adjusted in the
following cases:
a. The machine does not feed.
Turn the knob in the anti-clockwise direction (to
a larger number). The amount of airflow is
increased.
b. The machine feeds multiple sheets at once.
(double feed)
Turn the knob in the clockwise direction (to a
smaller number). The amount of airflow is
decreased.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Adjusting the amount of skew
Paper may be cut at an angle if a skew in the paper
arises during feeding. When this happens, correct
the problem by changing the angle of the feed
guide.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Figure 3-1: Close-up of the airflow adjust-
ment knob
Figure 3-2: Location of the airflow adjust-
ment knob
Figure 4-1: Skew adjustment knob
Part Names and Their Functions
