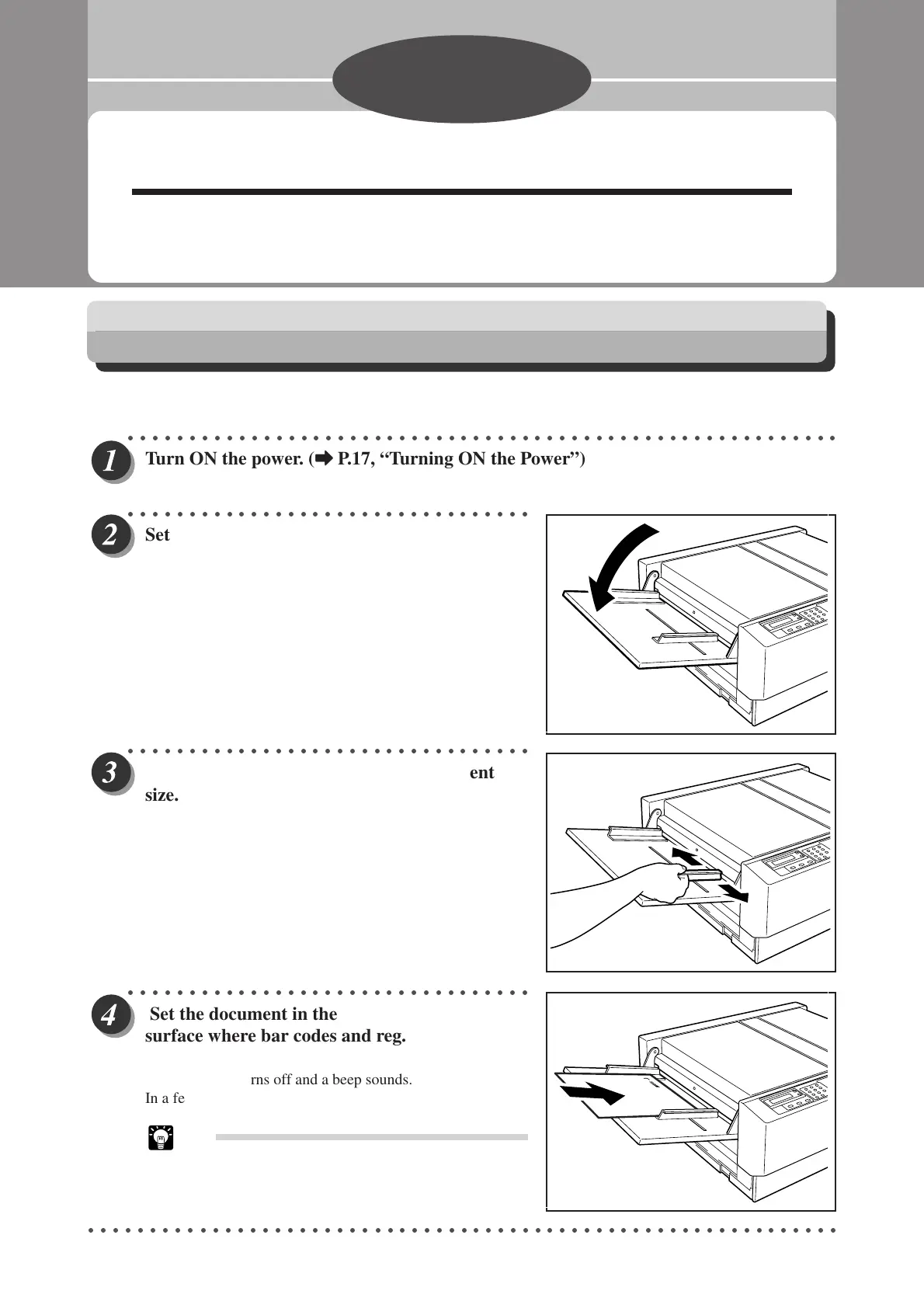

Automatic Cutting Using Bar Codes and Register Marks
This machine can read bar codes and reg. marks enabling automatic cutting and creasing.
The procedure is described below.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Turn ON the power. (
aa
aa
a P.17, “Turning ON the Power”)
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Set the feed tray.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Slide the feed guides to match the document
size.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Set the document in the feed tray with the
surface where bar codes and reg. marks are
printed facing upwards.
The feed lamp turns off and a beep sounds.
In a few seconds, the document is fed into the machine.
Tip
• Set the document in the direction shown in the
illustration.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
