Operating Instraction - DC545 HC
Adjustments
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Elevator level ( Feed tray)
The elevator level should be adjusted in the
following cases.
a. The machine does not feed.
→ Lower the lever. The level of the elevator is
raised.
b. The machine feeds multiple sheets at once.
(double feed)
→ Raise the lever. The level of the elevator is
lowered.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Separator
The height of the separator should be adjusted in
the following cases:
a. The machine does not feed.
→ Turn the knob in the clockwise direction (to a
smaller number). The position of the separator is
lowered.
b. The machine feeds multiple sheets at once.
(double feed)
→ Turn the knob in the anti-clockwise direction (to
a larger number). The position of the separator is
raised.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

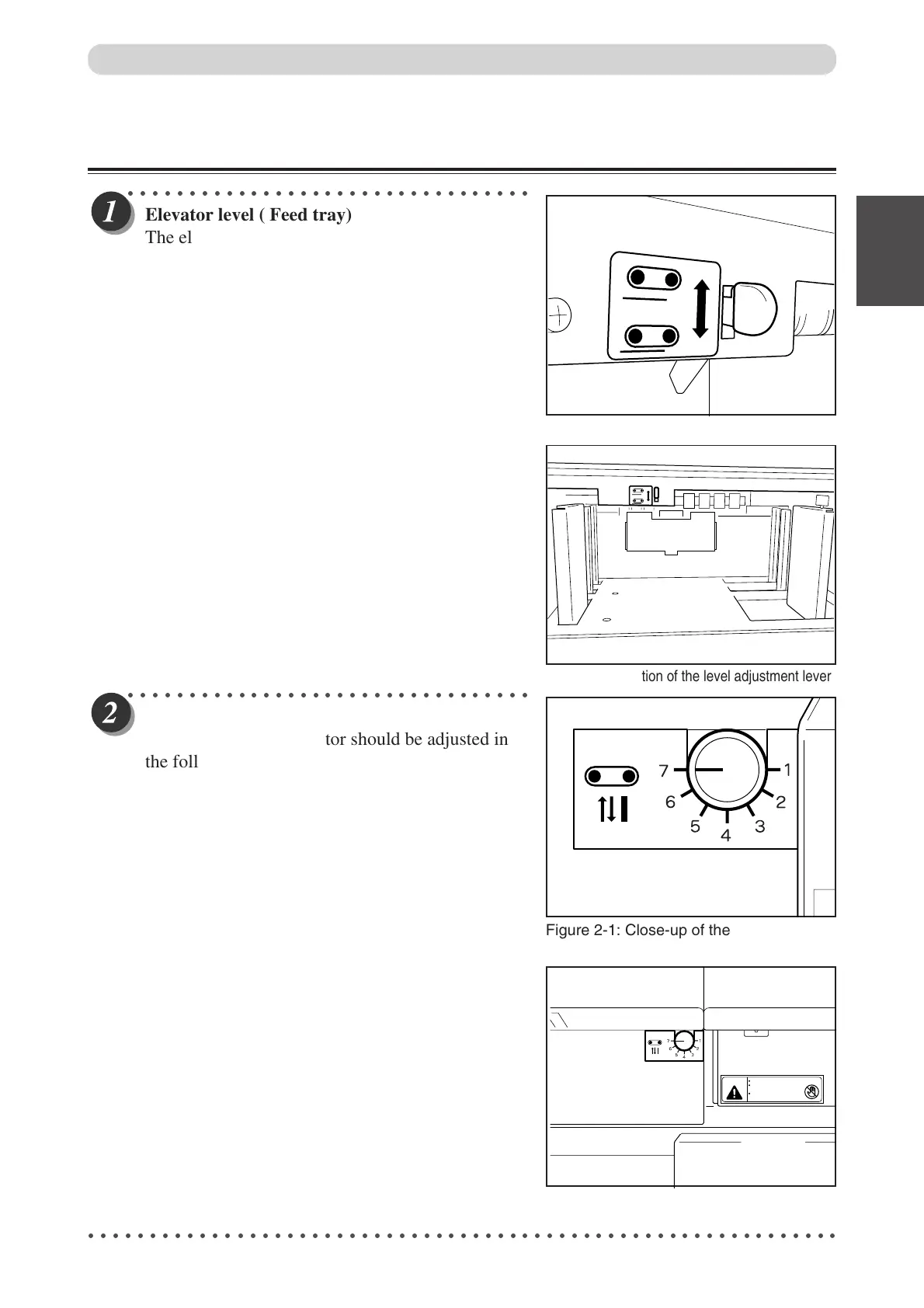

Figure 1-1: Close-up of the level adjustment lever
Figure 1-2: Location of the level adjustment lever
Figure 2-1: Close-up of the separator
adjustment knob
WARNING
Cutters and movable parts are inside this cover.
Before opening the cover to work,
unplug the power cord.
Use caution when working near cutters
and movable parts.
L8-T1080
Figure 2-2: Location of the separator
adjustment knob
