Definition of Programming Terms
Tip
• Paper area before first cut and after last cut are considered to be scrap and will be chopped
up for disposal in waste tray when AUTO CUT is selected. See the appendix (P.66) for infor-
mation about automatic cutting.

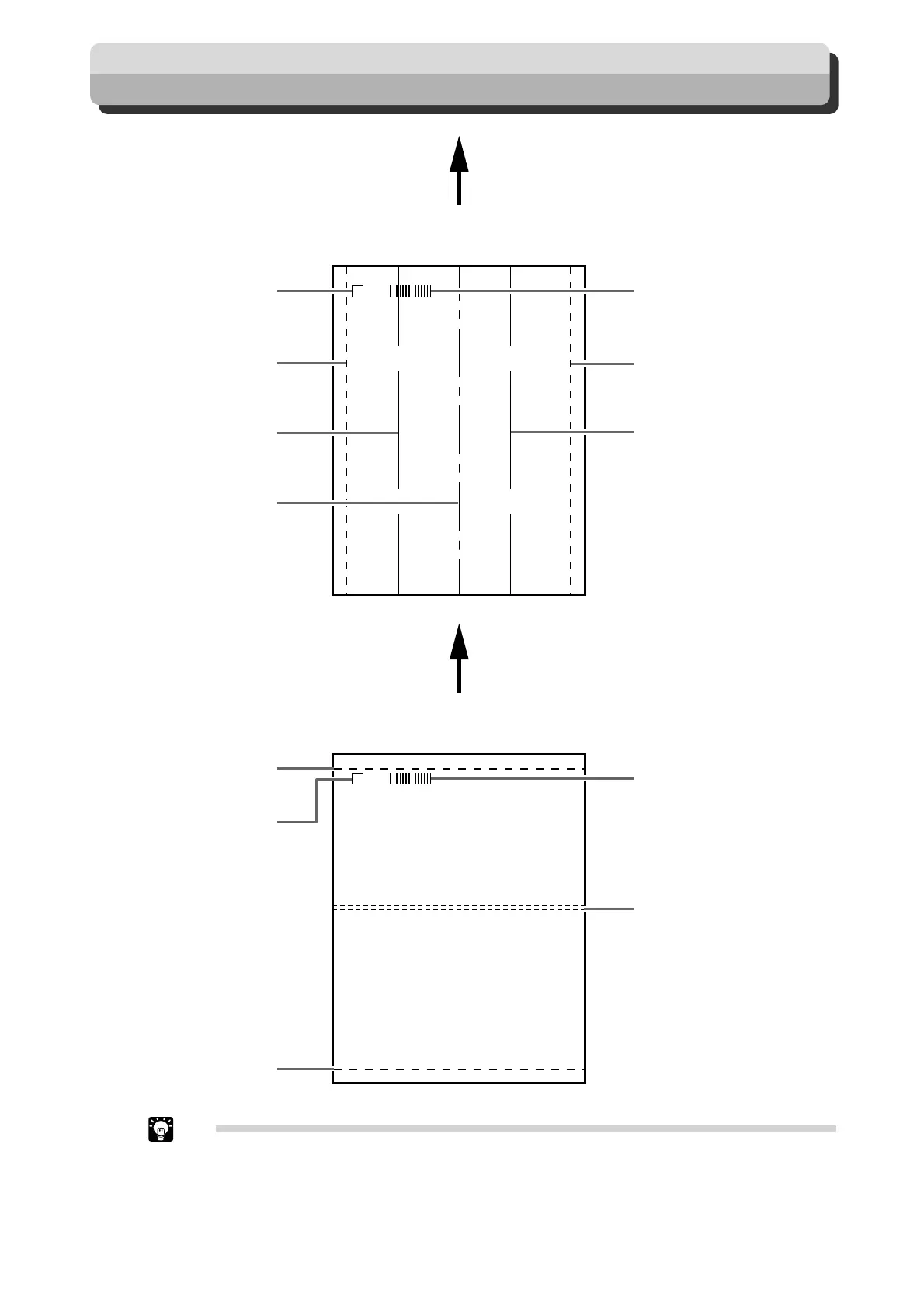

PAPER FEEDING DIRECTION
PAPER FEEDING DIRECTION
Reg. Mark
(Optional)
First Cut
Last cut
Bar Code
(Optional)
Crease
(SCR 1)
Reg. Mark
(Optional)
Left Margin Slitter
(LEFT SL)
Center Left Slitter
(C.L.SL)
Center Slitter
(OP 1)
Bar Code
(Optional)
Right Margin Slitter
(RGHT SL)
Center Right Slitter
(C.R.SL)
