Troubleshooting - DC545 HCEX

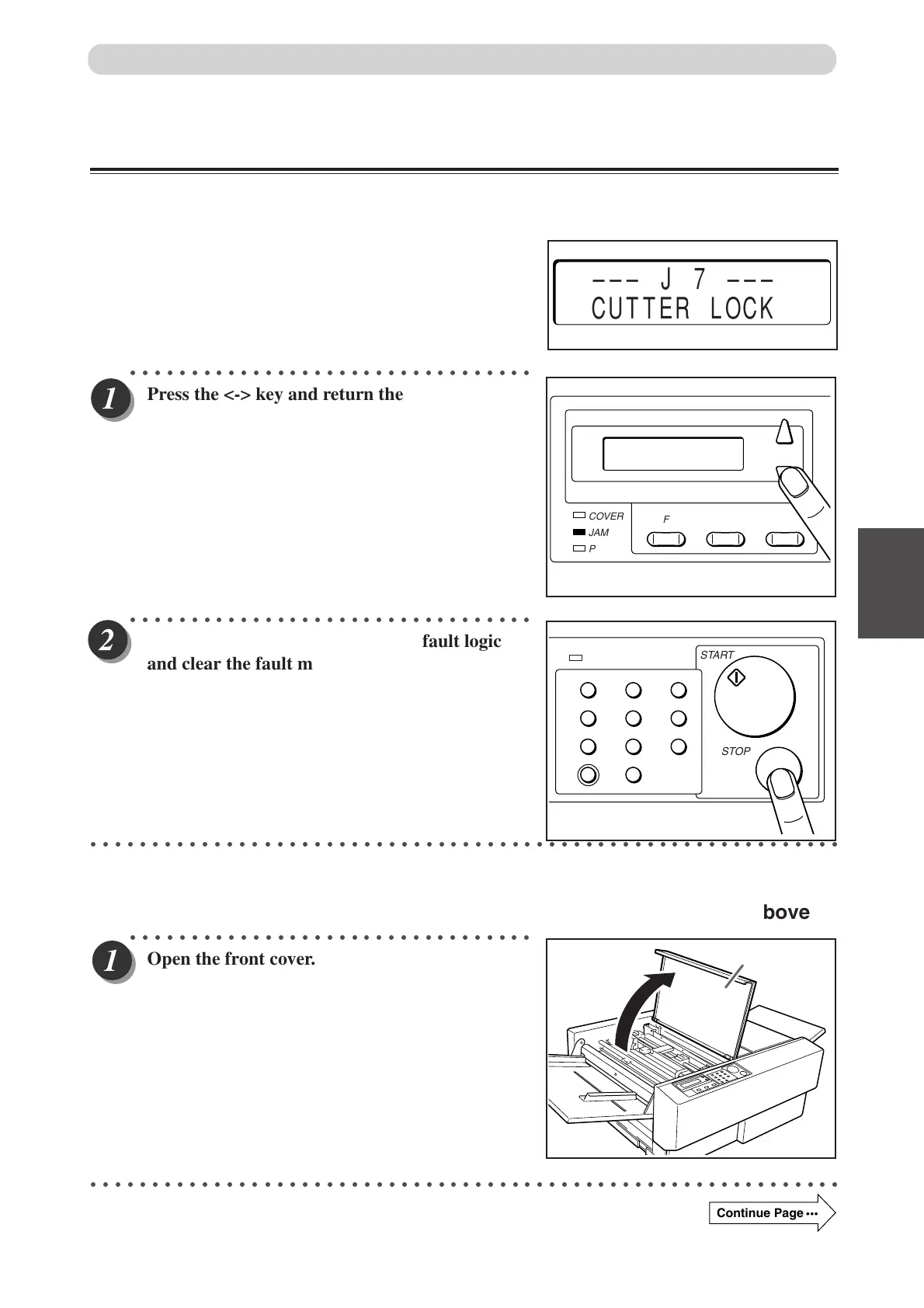

When “CUTTER LOCK” is Displayed
If a paper jam has occurred in the cutter unit, “CUTTER LOCK” is displayed on the LCD panel and the JAM
lamp blinks.
Remove the jammed document with the following procedure.
Check that the paper stock is within specifications.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Press the <-> key and return the jammed
document to the feed tray side.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Press the <STOP> key to reset the fault logic
and clear the fault message.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
■ If the document cannot be removed with the procedure mentioned above
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Open the front cover.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
––– J 7 –––
CUTTER LOCK
COVER
JAM
F
PAPER
MODE SET
+
–
Front cover
When a Paper Jam Has Occurred
1
4
7
C
2
5
8
0
3
6
9
POWER
START
STOP
Continue Page •••
