Before Using the PC Controller
How to Connect the DC-616 to
Y
our Computer

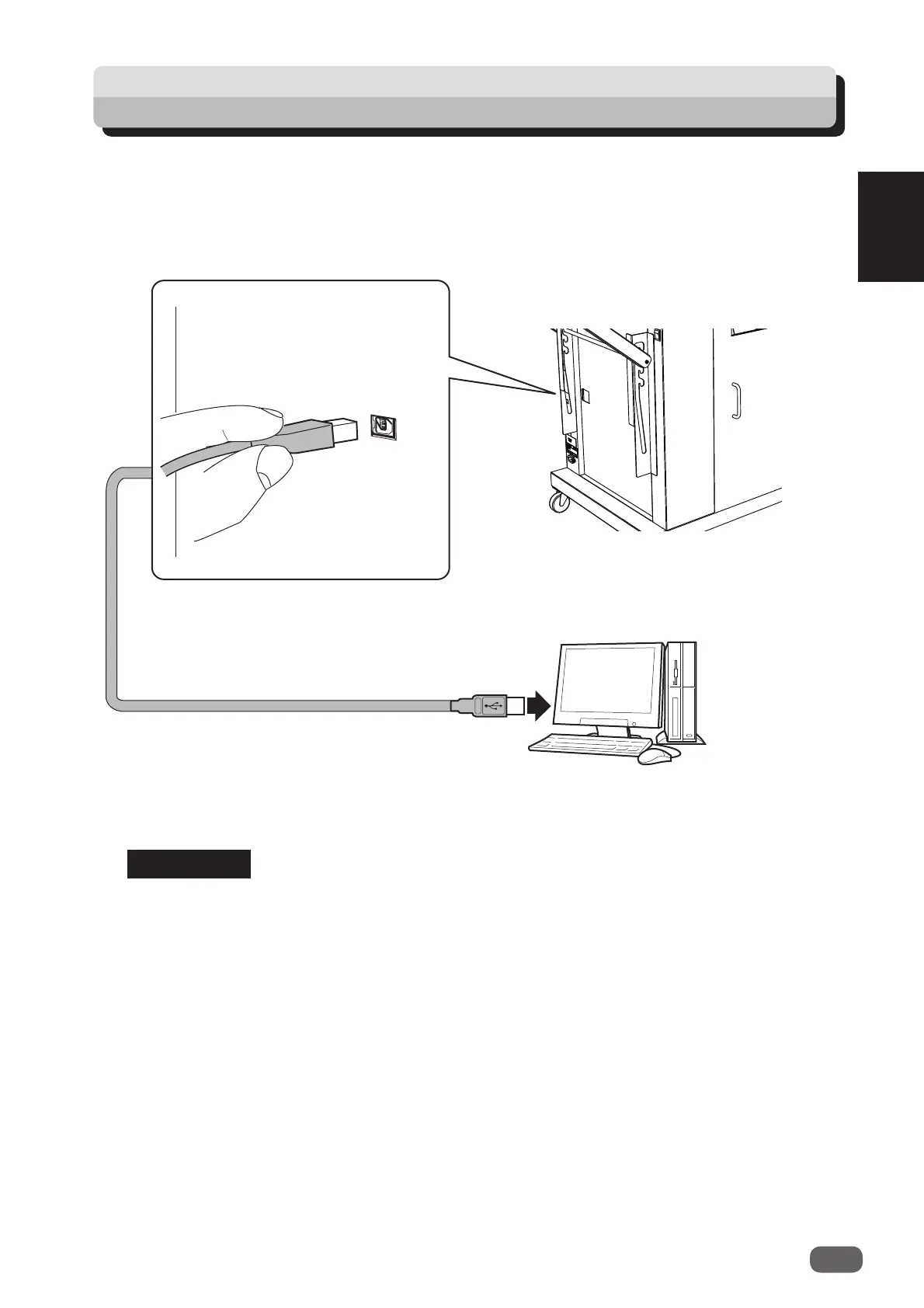

Prepare an USB 2.0 Cable (A/B 4-pin).
Plug the USB terminals into the USB port of the DC-616 and the USB port on your computer
.
USB cable must be within 3 m long.
Do not connect the DC-616 to your computer until the driver of the PC Controller is installed.
REFERENCE
Computer
USB 2.0 Cable
î
10
12
Table of Contents
Introduction
3
Table of Contents
5
What Is PC Controller
8
Before Installation
9
Unpacking Checks
9
Operating Environment
10
How to Connect the DC-616 to Your Computer
11
Installing the PC Controller
13
PC Controller Installation Procedures
14
Windows 8 / Windows 7 / Windows Vista
19
Windows XP
23
Uninstalling the PC Controller
29
PC Controller Uninstallation Procedures
30
Windows 8 / Windows 7 / Windows Vista
33
Driver Uninstallation Procedures
33
Windows XP
35
Driver Update
37
Driver Update
38
PC Controller Setting
40
Main Menu
40
Limits of the Trail Cutting
42
Creating a JOB with Preview Display (WIZARD)
44
Creating a JOB by Entering Values (DIRECT)
54
Reading a JOB from DC-616 (UPLOAD)
58
Registering a JOB Saved in Computer Onto DC-616 (DOWNLOAD)
60
Setting Frequently Used Functions on Computer ("SETTING")
61
Setting
63
ADJUST All
65
Retrieving a JOB
69
Processing a JOB by Retrieving from DC-616 (SELECT)
69
JOB Detail
70
Open
72
Saved JOB Log
73
JOB Log Details
75
Select JOB Log
76
Troubleshooting
79
Messages on the Status/System Display
82
