14
Preparation Before Use
IMPORTANT
Crease tool
(female)
Crease tool
(male)
Narrower
Wider
Document
feed side
Ejection
side

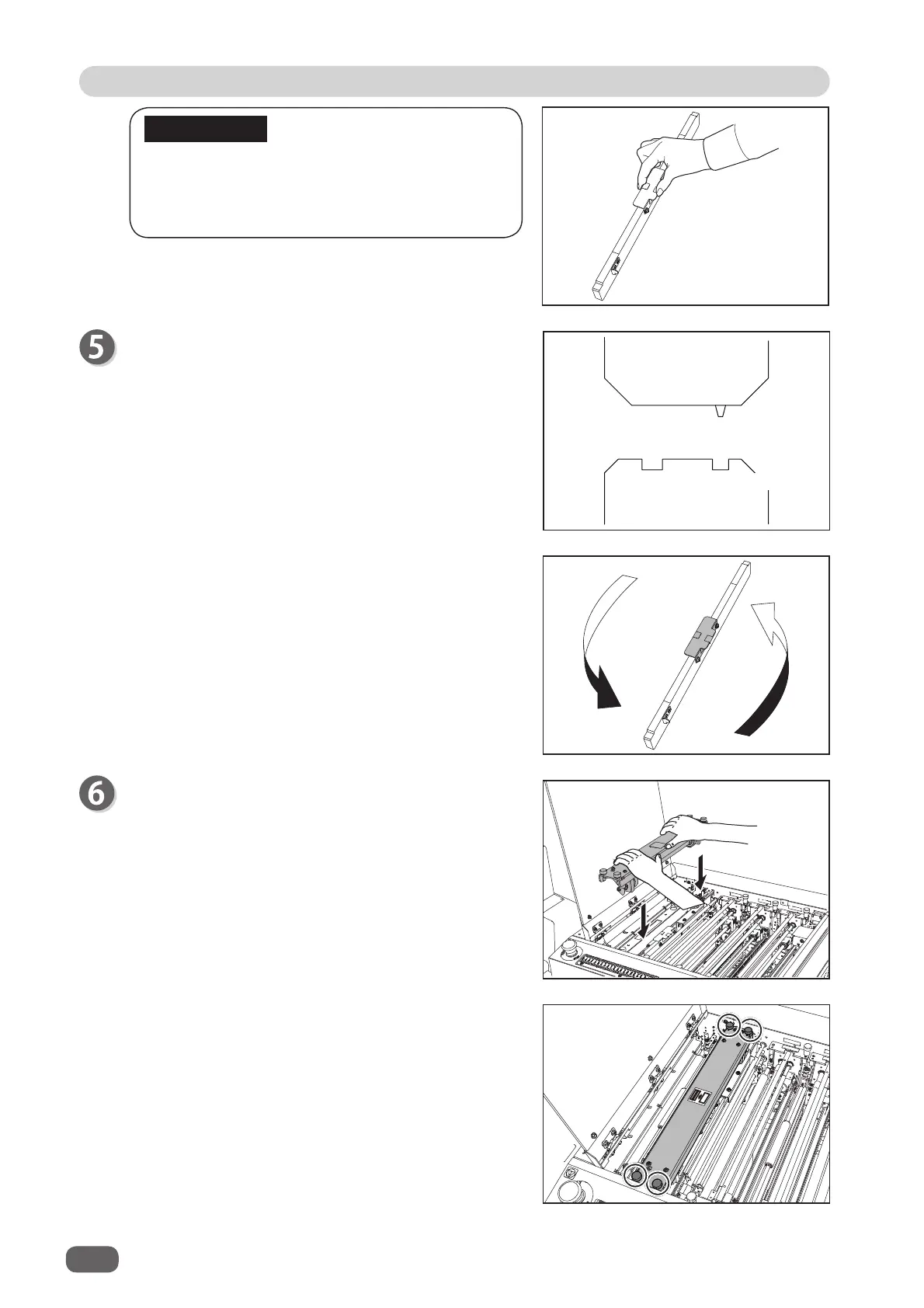

The fi gure on the right is a sectional view of the
crease tool (male)
and the
crease tool (female)
.
Turn the
crease tool (male)
180 degrees horizontally.
Attach it to the
crease tool (female)
to fi t the
wider
groove
or
narrower groove
.
Attach the
upper plate assy
removed in step 3 to
its original position. Tighten the four
fi xing screws
loosened in step 2 to secure them.
Close the
top cover
.
Take extreme care for handling the crease tool
(male).
Strong impact by dropping the tool and so on
may affect the accuracy.
Narrower groove side: for heavy weight documents
Wider groove side: for light weight documents
To Next Page
