Before Using This Machine
IMPORTANT
No. Name Function
A
1
Slot 1
(Margin slitter module)
Cuts off the margin on the operator’s side and
the non-operator’s side.
2
B
3
Slot 2
(Center slitter module 1)
Cuts a document parallel to the document feed
direction.
4
C
5
Slot 3
(Center slitter module 2)
Cuts a document parallel to the document feed
direction.
6
D - Gutter defl ector section
Drops wastes cut off with module A, B, and C
into the waste box.
E - Creaser section
Creases a document perpendicularly to the
document feed direction.
F - Cutter section
Cuts a document perpendicularly to the
document feed direction.
F
35
46
1
E
F
5
3
4
6
2
B A E DC
1
2
Document
feed
direction

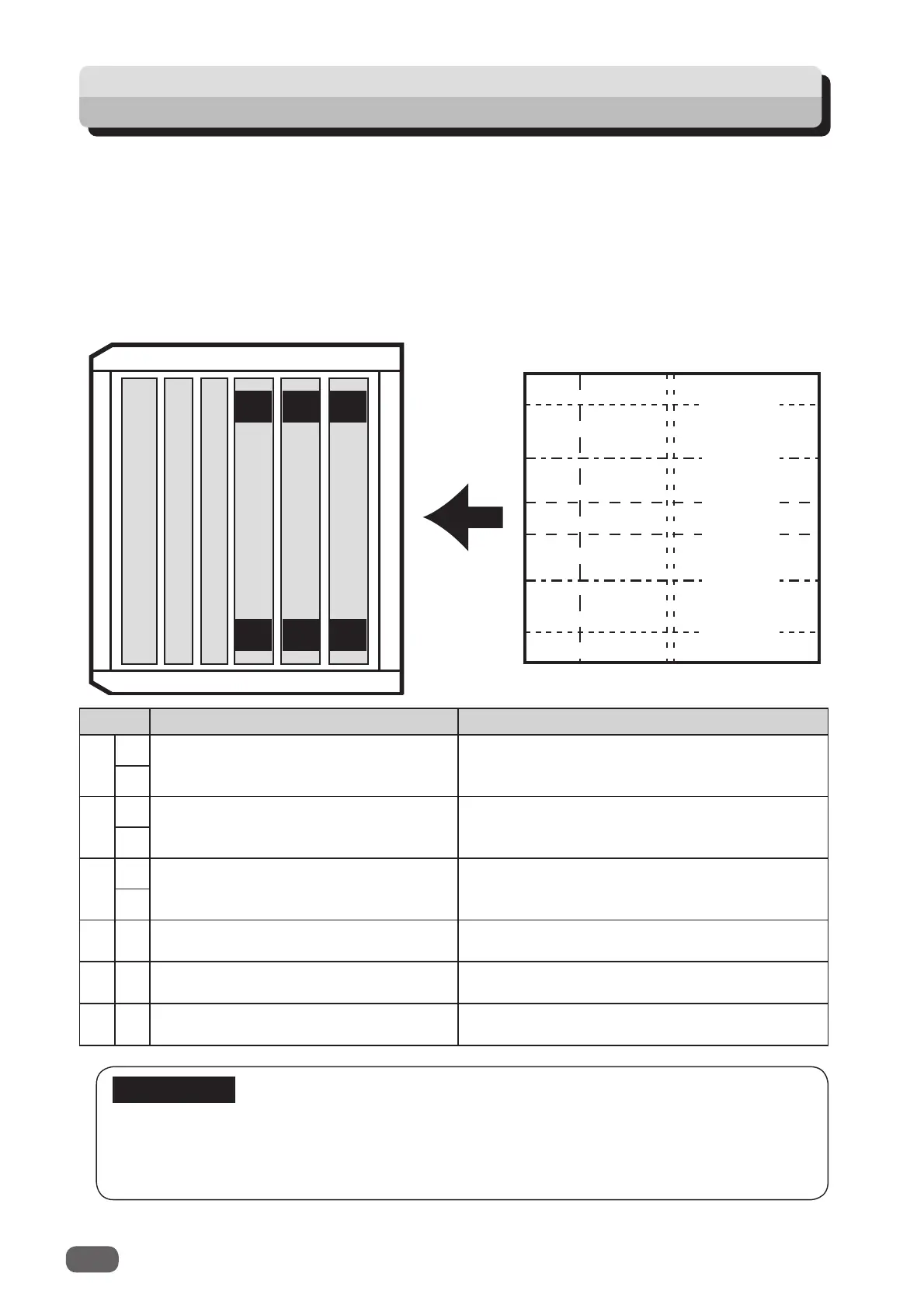

Document and processing position
: Crease
: Cut
: Slit 1
: Slit 5
: Slit 3
: Slit 4
: Slit 6
: Slit 2
When removing various modules of this machine, always re-install the modules properly
as shown in the above fi gure.
When module A, B, and C are reinstalled, it is especially important that the slitter module is
properly assembled.
The DC-618 can save up to 250 patterns of JOB. You can program JOB contents either via
computer or on the control panel This section describes items required to program a JOB.
Slit: The DC-618 has six slitters. The two slitters on both ends (1, 2) are for the margins and the
remaining four slitters are for the center area of the document.
Cut: The DC-618 has a cutter that can process up to 30 cuts on one document. The DC-618 can
cut up to 30 positions on one document.
Crease: The DC-618 has creasing function that can process up to 20 creases. The DC-618 can
crease up to 20 positions on one document.
