Duplo DC-618 - Changing the Crease Width

2
13
Preparation Before Use
1
Before Using This Machine

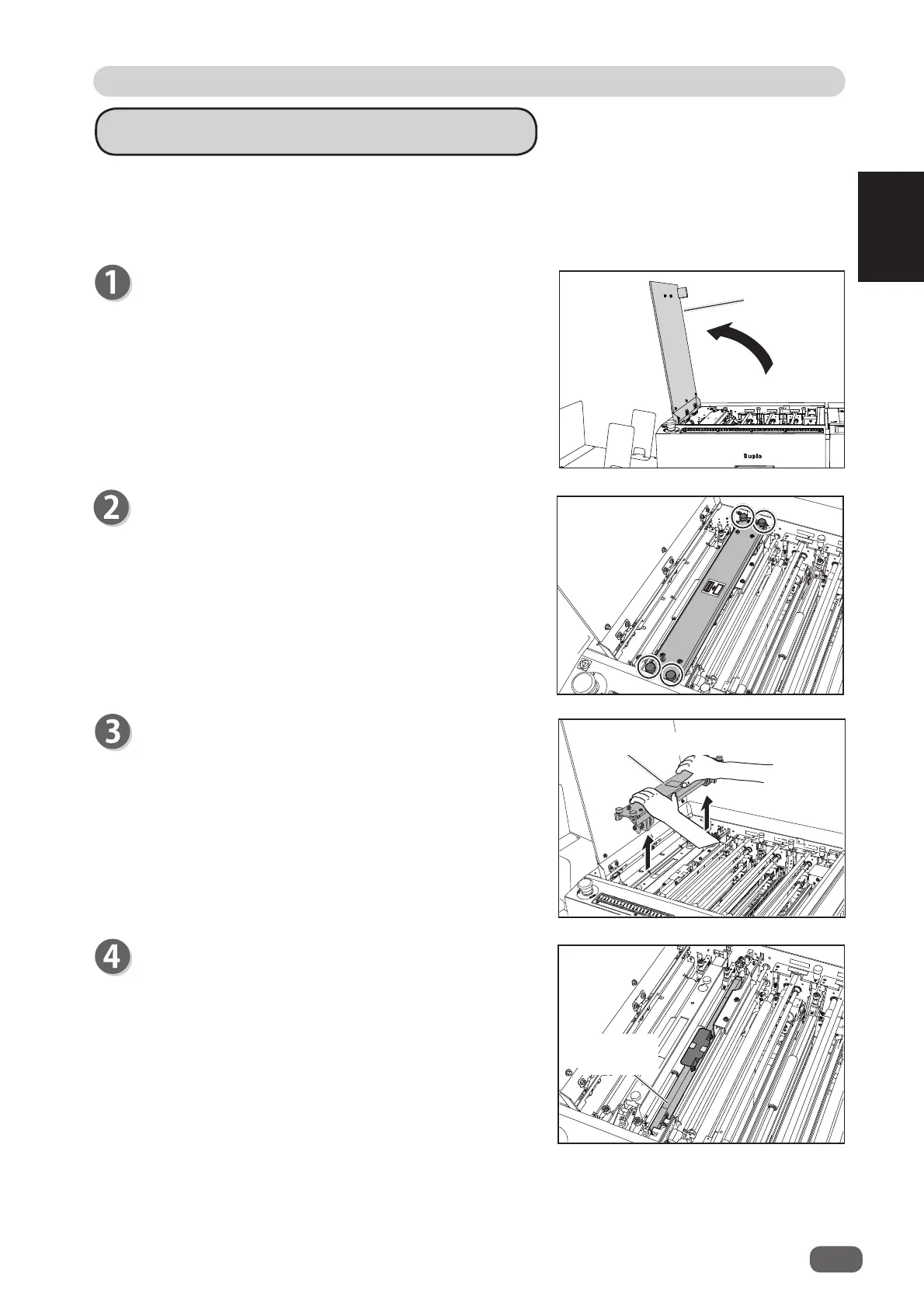

Changing the Crease Width
Crease
tool (male)
Upper plate assy
Top cover
Change the attaching position (wider groove or narrower groove) of the
crease tool (male)
of
the
creaser section
according to the documents to be used.
Narrower groove side: for heavy weight documents
Wider groove side: for light weight documents
Open the
top cover
.
Loosen the four
fi xing screws
of the
upper plate
assy
in the
creaser section
.
Remove the
upper plate assy
by lifting it up as
shown in the fi gure on the right.
Hold the sticker part of the
angle
of the
crease tool
(male)
and remove the
crease tool (male)
by pulling
it up.
