Before Using This Machine
No. Name
1 Slitter 1 (in Slitter Module A)
2 Slitter 2 (in Slitter Module A)
3 Slitter 3 (in Slitter Module B)
4 Slitter 4 (in Slitter Module B)
5 Slitter 5 (in Slitter Module C)
6 Slitter 6 (in Slitter Module C)
7 Gutter Deflector
8 Cutter Module
9 Creaser Module
10 Transport Module
(or Optional Module)
1
7C B A8910
35
246
1...SLIT1
8...CUT
9...CREASE
3...SLIT3
5...SLIT5
6...SLIT6
4...SLIT4
2...SLIT2

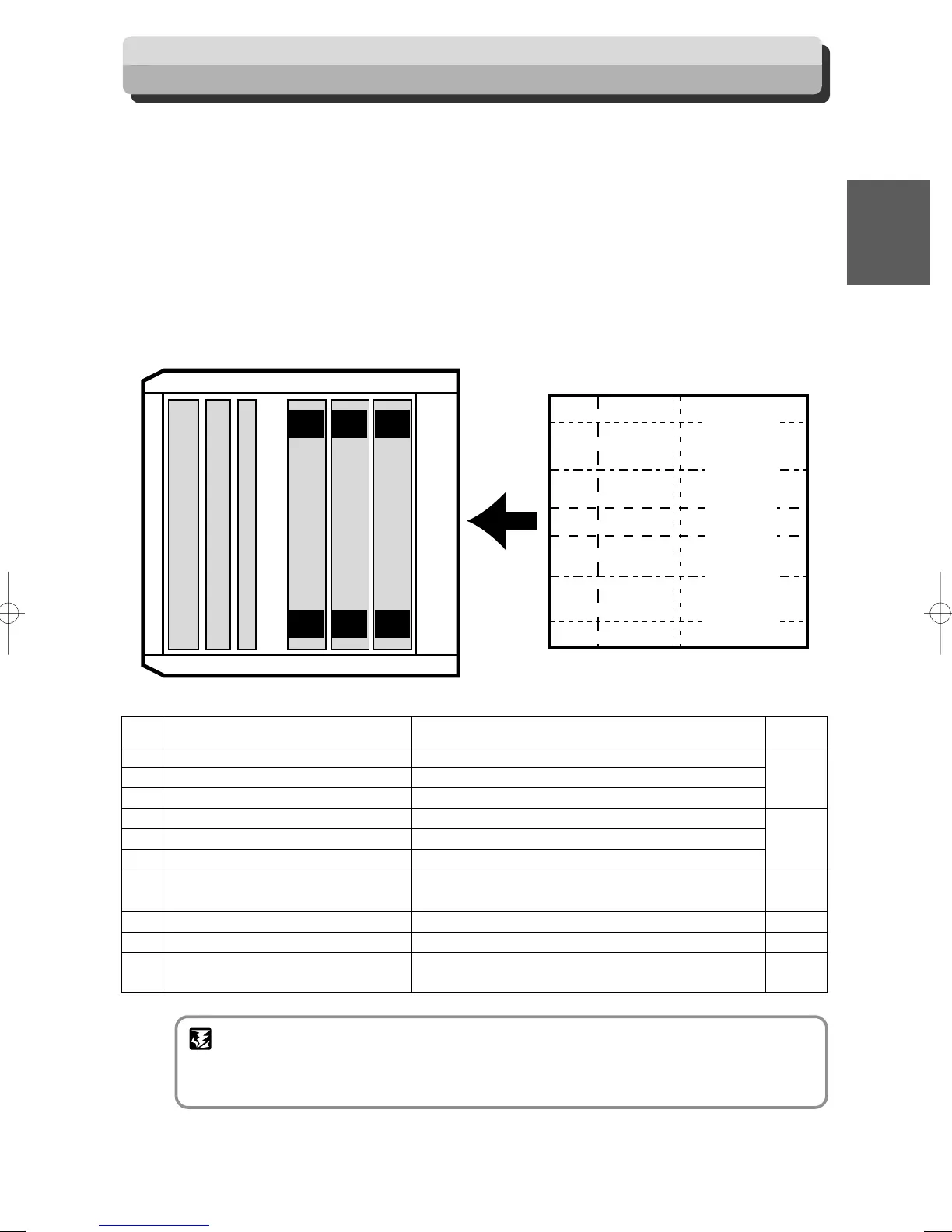

Paper and Processing Position
Feed
direction
Function
Cuts off the blank-area of the further-side and front-side.
Cuts off the blank-area of the front-side.
Cuts parallel in the paper feed direction.
Cuts parallel in the paper feed direction.
Cuts parallel in the paper feed direction.
Cuts parallel in the paper feed direction.
The gutter strips cut off by slitters are dropped into the
waste box.
Cuts in a perpendicular to the paper feed direction.
Creases parallely in the paper feed direction.
Transports the paper to the stacker tray.
IMPORTANT
• When removing various modules of this device, always re-set the module in the sequential
order indicated in the illustration above. It is especially that the slitter module is properly
assembled, when setting slitter module A, B and C again.
Reference
page
60,80,82
61,80,82
40,81
54,79,80,89
54,79,81,89
36,57
Before Preparing Document
Familialize your self with the following illustrations and instructions to make your documents appropriately.
DC-645 has six slitters. Two slitters are for the margins and the remaining four slitters are for the center of the
document.
There is a guillotine cutter that performs cuts perpendicular to the paper feeding direction. DC-645 can cut up to 15
cuts on 1 document.
There is a creaser that performs creases perpendicular to the paper feeding direction. DC-645 can crease up to 10
creasing on 1 document.
