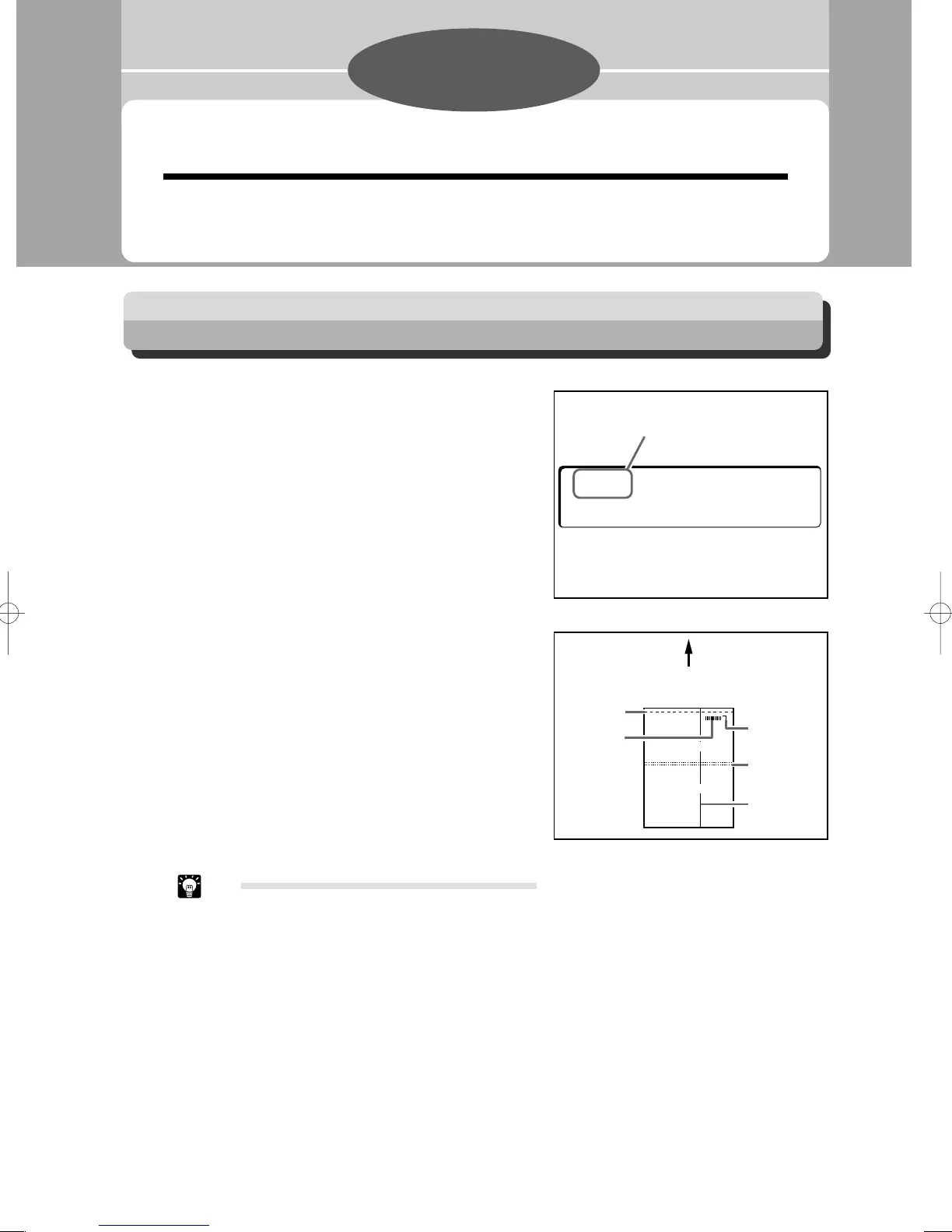

Duplo DC-645 - Chapter 3 Programing JOB for DC-645 on Control Panel; Prior to Programming a Job

54
Before programming a job carefully measure, in
mm, the required slits, cuts and creases. See the
Figure 1 for reference and Figure 2 for a
detailed description of each function.
Familiarize yourself with the following illustra-
tions and instructions to make the program-
ming process easy and trouble free.
IMPORTANT NOTE
There are a total of six slitters. Two slitters are
for the margins and the remaining four slitters
are for the center of the document.
There is a guillotine cutter that performs cuts
perpendicular to the paper feeding direction.
DC-645 can cut up to 15 cuts on 1 document.
There is a creaser that performs creases
perpendicular to the paper feeding direction.
DC-645 can crease up to 10 creasing on 1
document.
Tip
• Record the contents of each job in “Customer
Programmed Jobs” list for your easy reference.
PAPER FEEDING DIRECTION
Slit
Cut
REG. Mark
(Optional)
Barcode
(Optional)
Crease
Programing JOB for DC-645 on Control Panel
DC-645 can save 80 patterns of JOBs. Job contents can be programmed either via computer or on the
control panel. This chapter describes how to program a JOB on control panel of DC-645. Following items
should be entered to program a JOB.
Chapter 3
01?
(
01––80
)
OK?––>SET
Program
Number
Figure 2
Figure 1
Prior to Programming a Job
