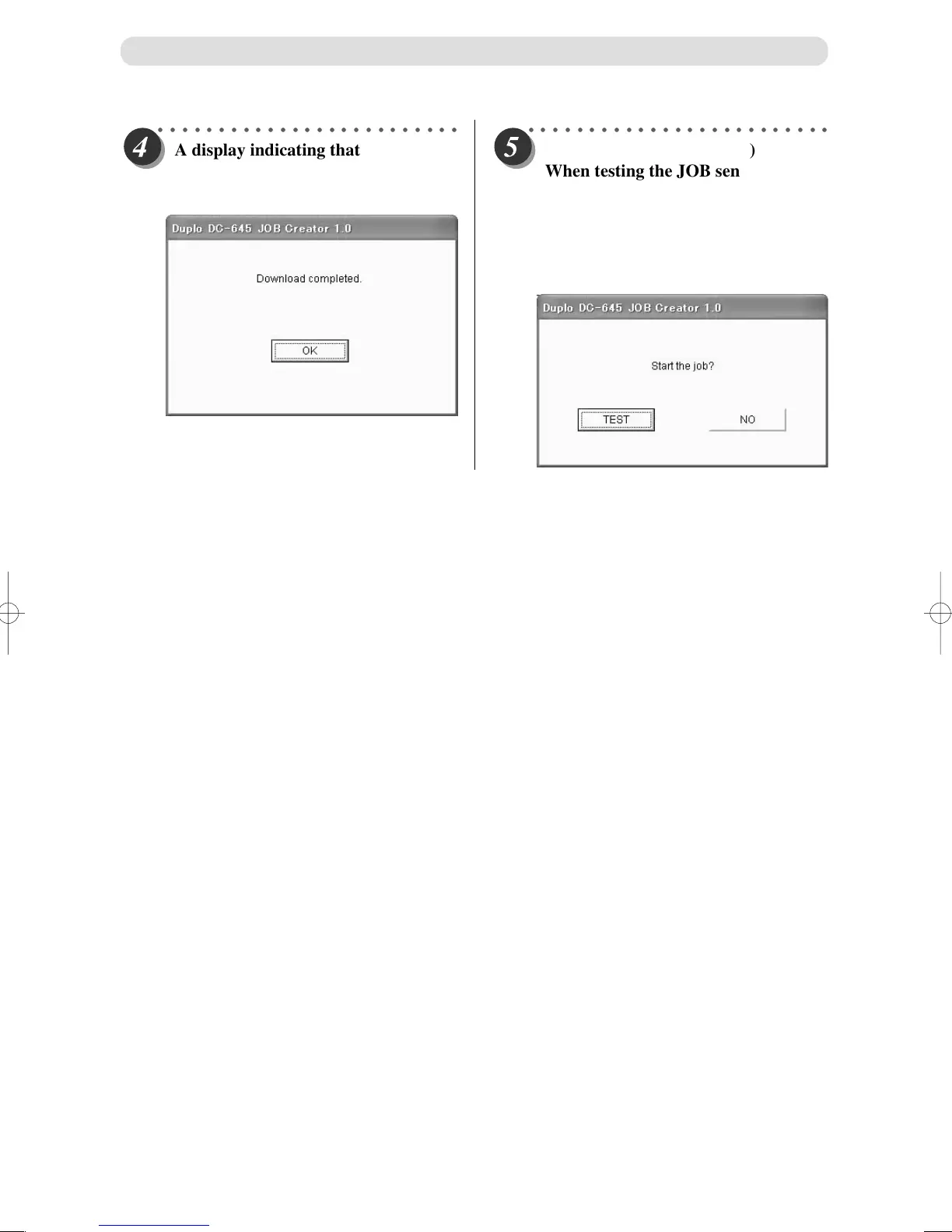

48
○○○○○○○○○○○○○○○○○○○○○○○○
○
A display indicating that the JOB
was successfully transmitted appears.
Click the [OK] b
utton to quit.
○○○○○○○○○○○○○○○○○○○○○○○○
○
(T
o register only ONE JOB)
When testing the JOB sent
(processing one), a conf
irmation
screen will appear
.
T
o run the test, set
the document on the DC-645 then
click [TEST]. If a test is not intended,
then click [NO].
JOB Creator Settings
48
50
Table of Contents
Table of Contents
3
Introduction
2
Table of Contents
3
Notes on Safety (Please Read and Observe)
5
Safety Precautions
5
Warning Sticker
8
Positioning the Machine
9
Maintenance
10
Notes on Safety (Please Read and Observe) Conventions Used in this Manual
11
Default Chapter
11
Conventions Used in this Manual
11
Chapter 1 Before Using this Machine
12
Part Names and Their Functions
12
Appearance
12
Modules
14
Control Panel
15
LCD Panel
16
Bc Reg Ac
16
Turning Power ON/OFF
17
Turning on the Power
17
Turning off the Power
18
How to Connect the DC-645 to Your Computer
19
Before Preparing Document
20
Definition of Programming Terms
21
Chapter 2 Program JOB for DC-645 Via Computer (JOB Creator)
30
What Is JOB Creator
30
Installing JOB Creator
30
Before Installation
30
Installing Procedures (Windows)
31
Installing Procedures (Macintosh)
33
Uninstall and Update JOB Creator
34
Uninstalling Procedures (Windows)
34
Uninstalling Procedures (Macintosh)
35
Updating Drivers
35
JOB Creator Settings
36
Main Menu
36
Creating JOB with Preview Display ("Using Program Entry Wizard")
37
JOB Saved on Computer Registered on DC
42
Creating a JOB by Direct Number Input ("Direct Program")
44
Reading JOB from DC-645 ("Upload Job Data from DC-645")
46
("Download Job Data to DC-645")
48
Setting Frequent Functions from Computer ("Function Setting")
50
("Upload Maintenance Data from DC-645")
52
Create a File Recording the DC-645 Maintenance Information
52
List of Messages
53
Chapter 3 Programing JOB for DC-645 on Control Panel
55
Prior to Programming a Job
55
Customer Programmed Jobs
57
How to Program Job on Control Panel
58
Chapter 4 Basic Operations
65
Process Documents by Selecting JOB
65
Finishing Process
65
How to Execute Batch Counting
65
The Specified Number of Document Are Processed
65
The Control Panel.)
65
Input the Number of the JOB to Call Up, Using the <Number> Key
65
MODE> Key and Go to the
65
Select ] 05:Duplo
65
This Chapter Describes the Operating Sequence from Turning on the Power Switch until Completing
65
Process Documents by Selecting JOB
66
Press the the Number Input
67
Automatic Set up Using Barcodes
69
Turn on the Power. (a a a a a P.16 "Turning on the Power")
69
By Pressing the
70
Adjust Feeder
71
Elevator Level (Feed Tray)
71
Separator
71
Airflow
72
Curled Document / Light Weight Document
72
Print Image Skew
72
FUNCTION Mode
73
About the Waste Box
75
Clean Feed Rollers
76
Chapter 5 Troubleshooting
77
Troubleshooting Flow Chart
77
Power Does Not Turn on
77
Cutting Is Not Possible
78
OK Monitor Display and Jam Display
79
Error Display
81
Warning Display
83
When a Paper Jam Has Occurred
84
When "REJECT PAPER" Is Displayed
84
When "FEED JAM" Is Displayed
86
When "CENTER JAM" Is Displayed
88
When "CUTTER or CREASE" Is Displayed
90
When "OPTION AREA JAM" Is Displayed
94
When "STACKER JAM" Is Displayed
96
When "OVER CAPACITY" Is Displayed
98
When "REJECT AREA JAM" Is Displayed
99
Press the
100
Appendix
101
Specifications
101
Index
103
