Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the crank pin only with the main switch switched off.
–

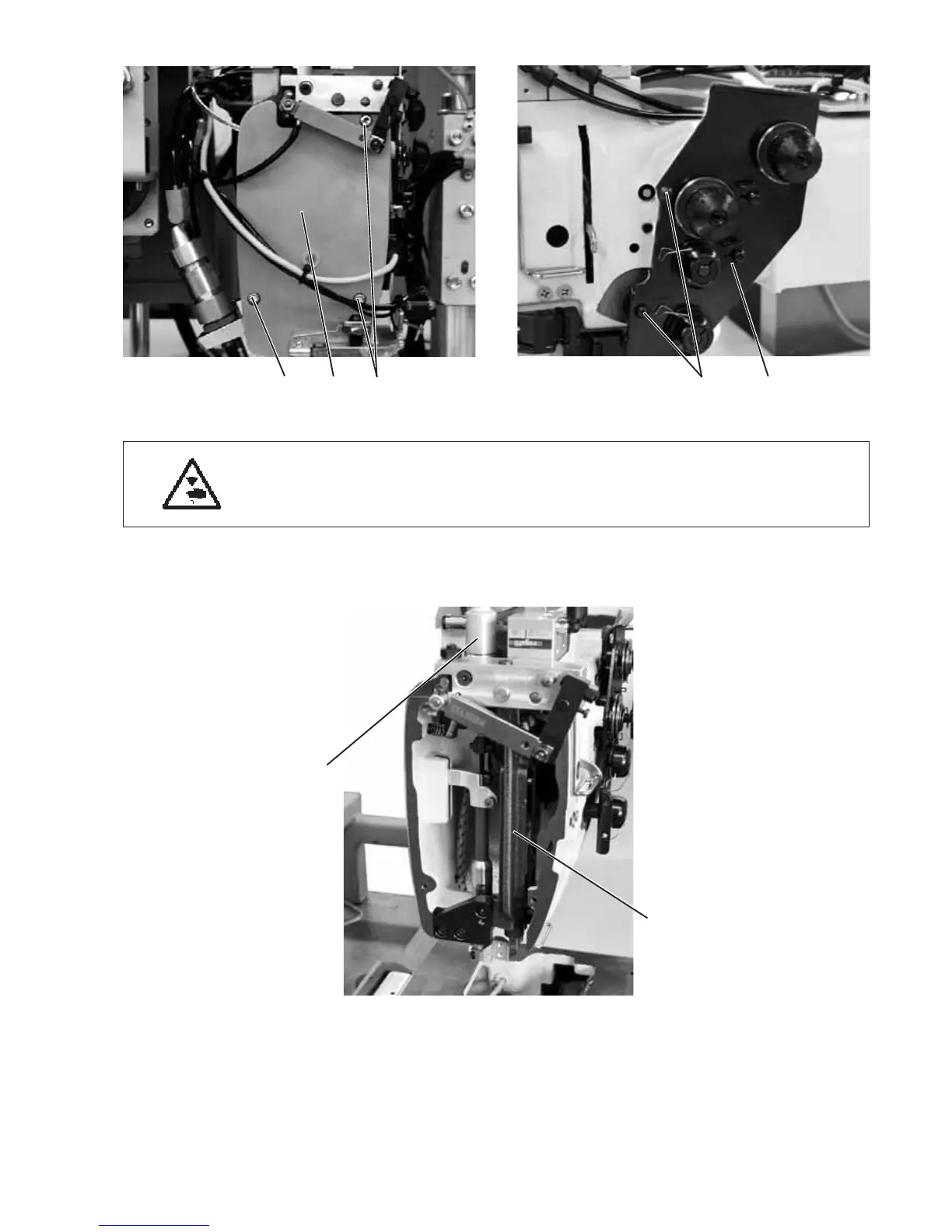

Remove the head cover 9 after loosening the fastening screws 8.
–
Swivel the thread tension plate 10 sideways after loosening the
fastening screws 11.
–
Remove the needle bar linkage 12 (see chapter 2.4.1).
–
Remove the switching cylinder 13 for the center knife drive
(see chapter 2.6.2).
11
11 10
898
12
13
