10.5 Guide plates at the folder
Caution: Danger of injury!
Switchthemainswitchoff.
Adjust the guide plates only with the sewing unit switched off.
Standard checking

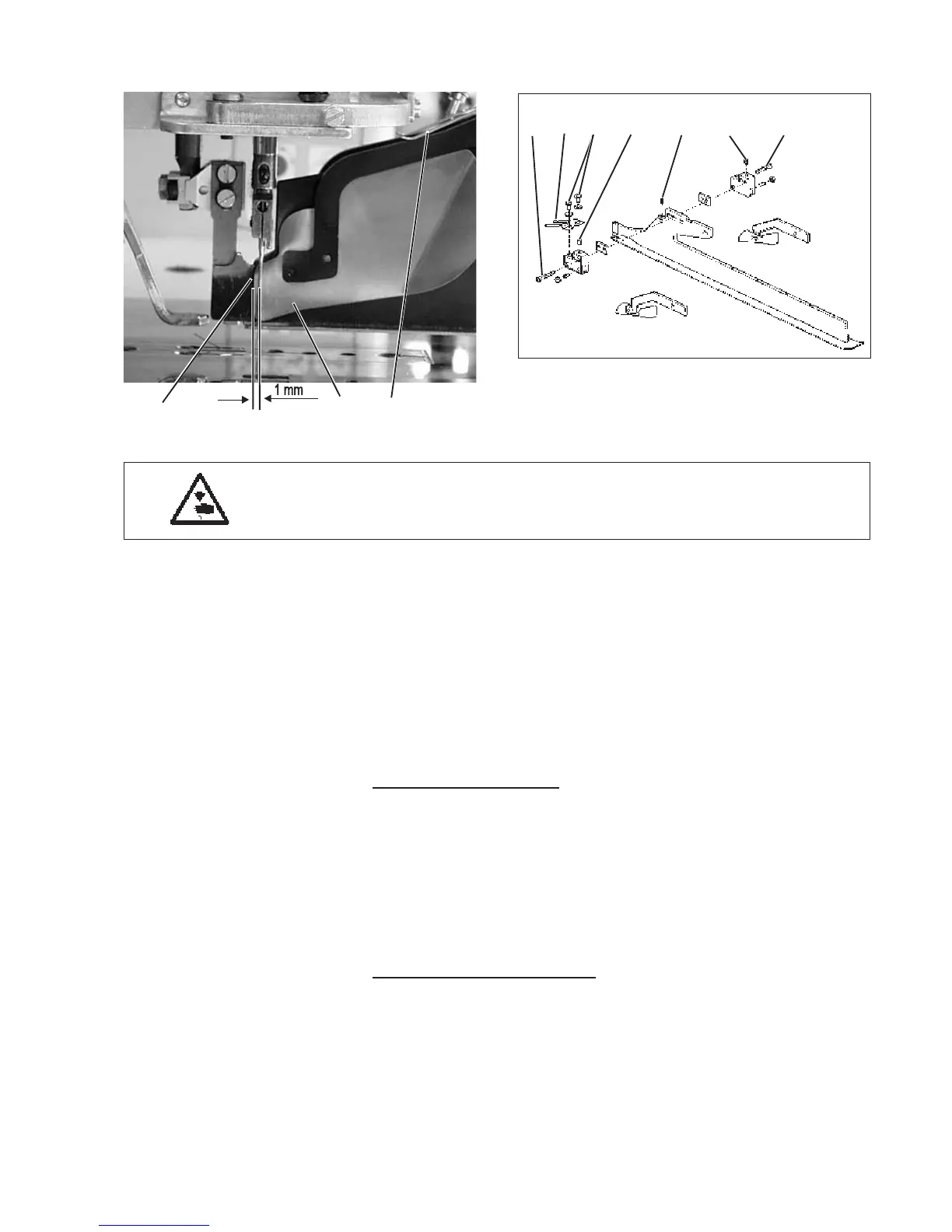

When the folder is lowered, the edges 3 of the guide plates 2 must
project beyond the needles by approx. 1 mm to the back.
The leaf springs 1 hold the guide plates down with low pressure.
The pressure must be set in such a way that the springy guide plates
can be easily lifted by the fed piping strip or by the flap.
–
Lower the folder.
–
Check the position of the guide plates to the needles.
–
Check the spring pressure of the guide plates.
Correction
Aligning the guide plates
–
Loosen screws 4.
–
Loosen core pin 7.
–
Adjust the guide plates in longitudinal direction.
–
Adjust the core pins 6. The lower edges of the guide plates should
be approx. 1 to 2 mm above the fabric sliding sheets.
–
Tighten screws 4.
–
Tighten core pin 7.
Adjusting the spring pressure
–
Loosen screws 5.
–
Adjust the pressure by aligning the leaf springs 1.
–
Tighten screws 5.
77
321
415676 4
