4. Feeding clamps
4.1 Measuring line for aligning the feeding clamps and the folder
For an unhindered material feed and a perfect pocket opening the
folding and cutting tools as well as the marking lamps must be aligned
to the middle of the pocket opening.
The middle between both needle holders is considered as the middle
of the pocket opening.
For adjusting and checking the folding and cutting tools the measuring
line 2 has to be marked on the table top.
The course of the measuring line is parallel to the feeding direction
with a distance of 125 mm to the cutting line.
Generating the measuring line
–

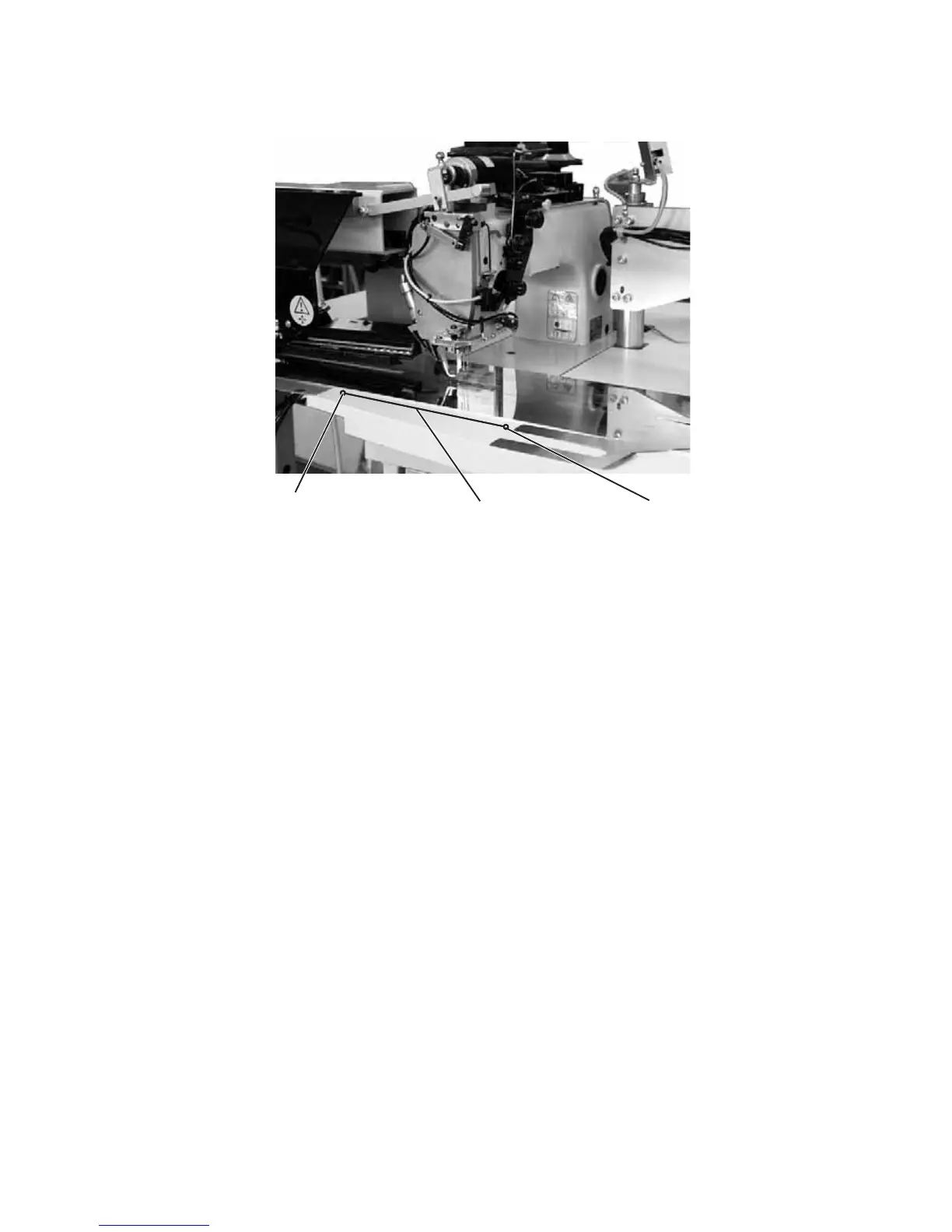

Mark the measuring line between the two markings 1 and 3 on the
table top. The markings have been fitted on the table top by the
manufacturer.
–
Check parallel position and distance before the start-up.
