4.4 Distance between the feeding clamps and the folder sole
Standard checking

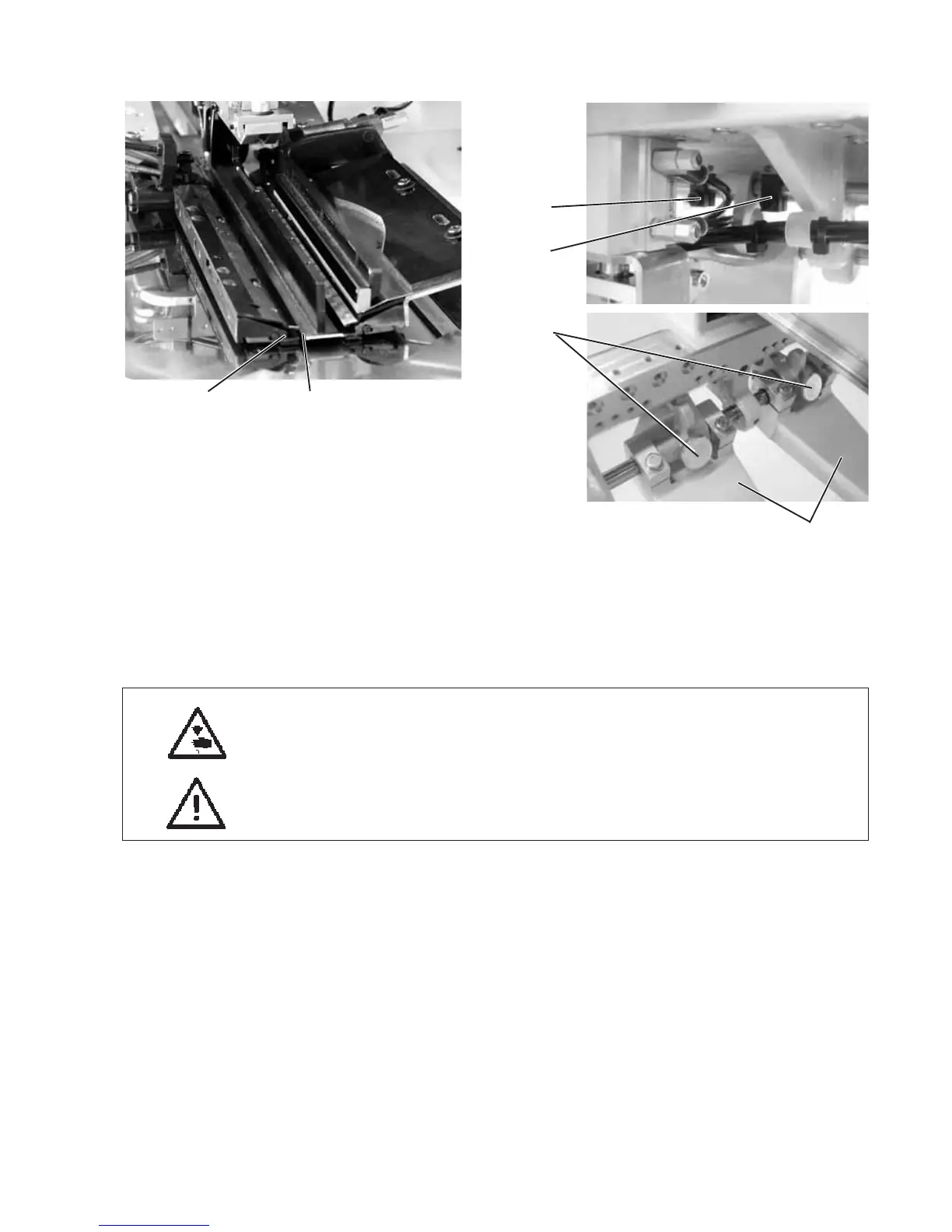

Between the outer edges 1 of the folder sole and the inner edges 2 of
the feeding clamps there must be a certain distance. When processing
medium-weight clothing fabrics the distance should amount to
approx. 1.0 to 1.5 mm.
The distance is required to guarantee equal piping strips on both sides
as well as an unhindered feed of the workpiece.
Caution: Danger of injury !
Check and adjust the feeding clamps with utmost caution when the
sewing unit is switched on.
Attention: Danger of breakage !
Select the corresponding clamp position according to the folder.
–
Start the sewing operation and check the distance between the
outer edges of the folder sole and the inner edges of the feeding
clamps.
For single piping the clamping block 6 serves as stop for lever 4 and
for double piping the clamping block 3.
–
For adjusting loosen screw 5 and push the lever 4 in front of the
clamping block 3 or 6 according to the application.
–
Tighten screws 5.
–
For fine adjustment loosen clamping block 3 or 6 and adjust on the
axis. Then tighten the adjusting ring on the shaft.
59
21
6
3
5
4
