6. Laser markings
Class 745-34 S is equipped with 3 s tandard laser modules for marking
the positioning points. The laser .. (Nummer einfügen?) marks the front
positioning point for the left or right workpiece, the laser .. marks the
rear positioning point. The laser .. marks the middle of the pocket
opening.
The fastening positions of the laser modules are described in chapter 6.1.
An adjustment template is available under order number 0745 290050.

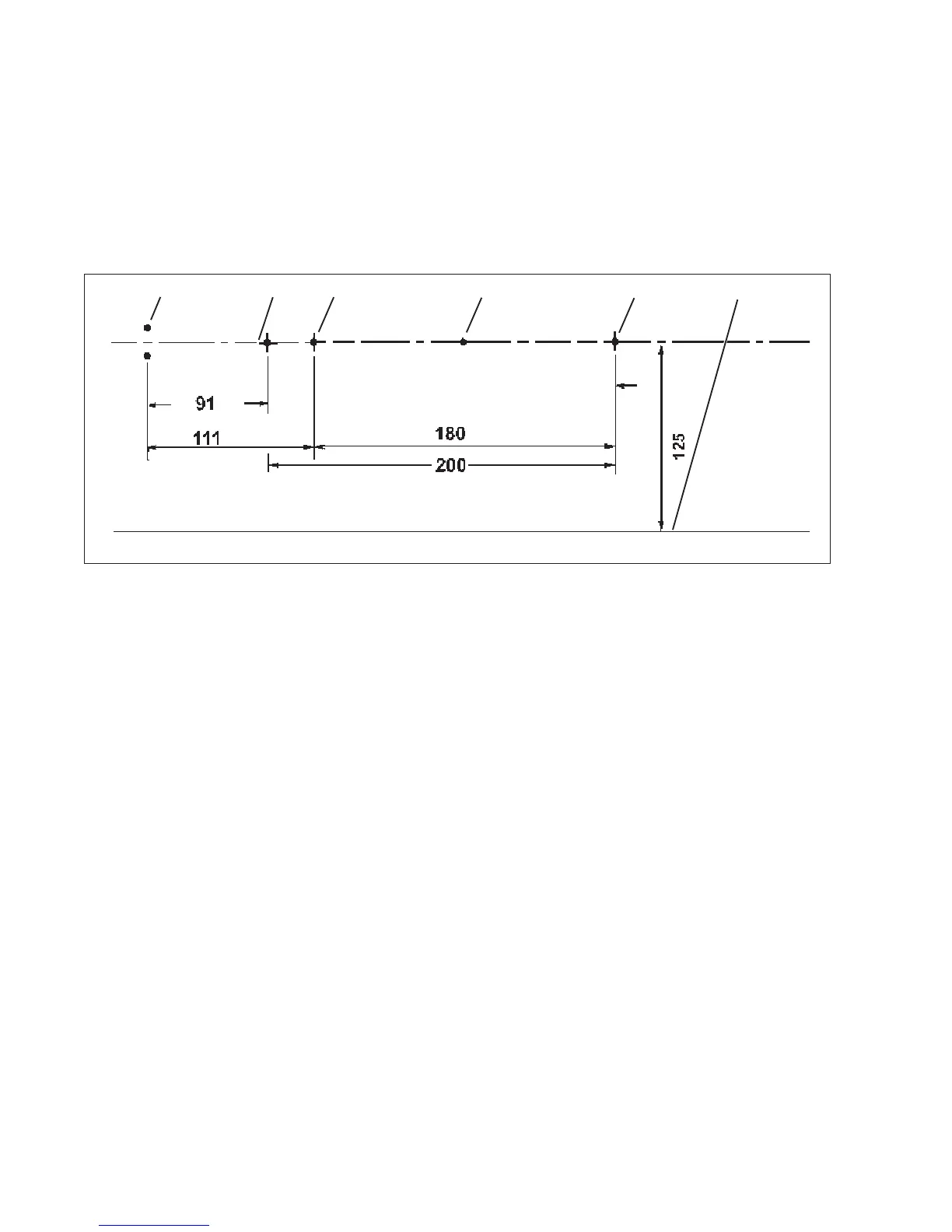

1 : Marking of the front positioning point
2 : Middle of pocket opening
3 : Marking of the rear positioning point
4 : Measuring line
5 : Needles
6 : Cutting line
