11. Stacker
The basic stacker settings mentioned hereafter have been made by the
manufacturer in factory 6.
They have to be corrected in exceptional cases only.
Caution: Danger of injury !
Before carrying out any adjustment work switch off the main switch and
separate the stacker from the compressed air supply.

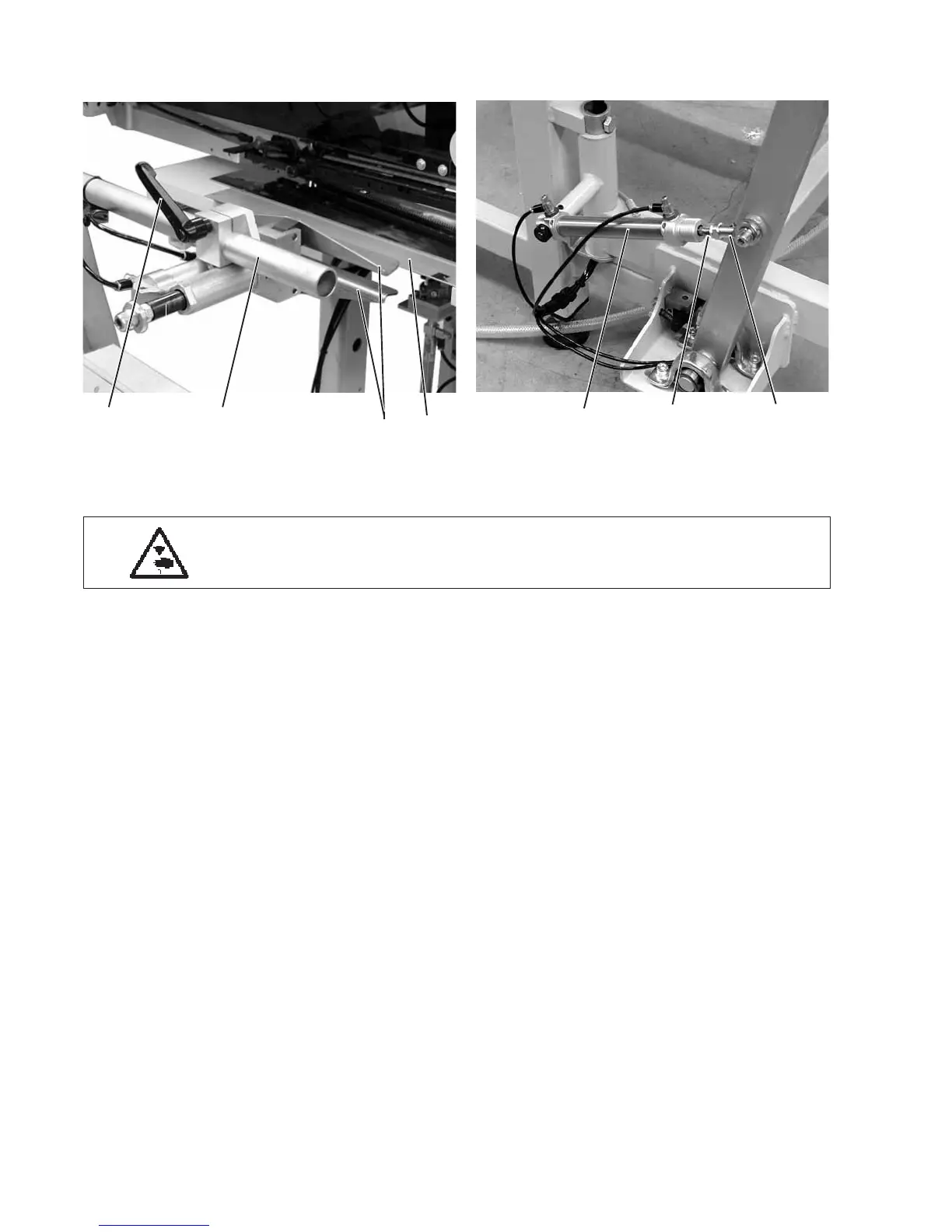

11.1 Position of the pincers to the table top
Standard checking
The open pincers 1 should be positioned to the table top in such a way
that the sewing material can be fed unhindered.
Correction
–
Loosen counternut 5.
–
Turn the joint head 4 on the piston rod of cylinder 6.
–
Tighten counternut 5.
11.2 Height of the pincers
Standard checking
The closed pincers 1 should be on the level of plate 7 in the table top.
Correction
–
Loosen the clamping lever 3.
–
Press the pincers 1 to the front by hand until the pincers closes.
–
Tighten the clamping lever 3.
By loosening the clamping lever 3 the pincers can also be shifted on
theaxle2inbothdirections.
78
65 432 17
