7. Reflected light barriers for flap scanning
7.1 Swivel arm
Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the swivel arm of the reflected light barriers only with the
sewing unit switched off.
Standard checking

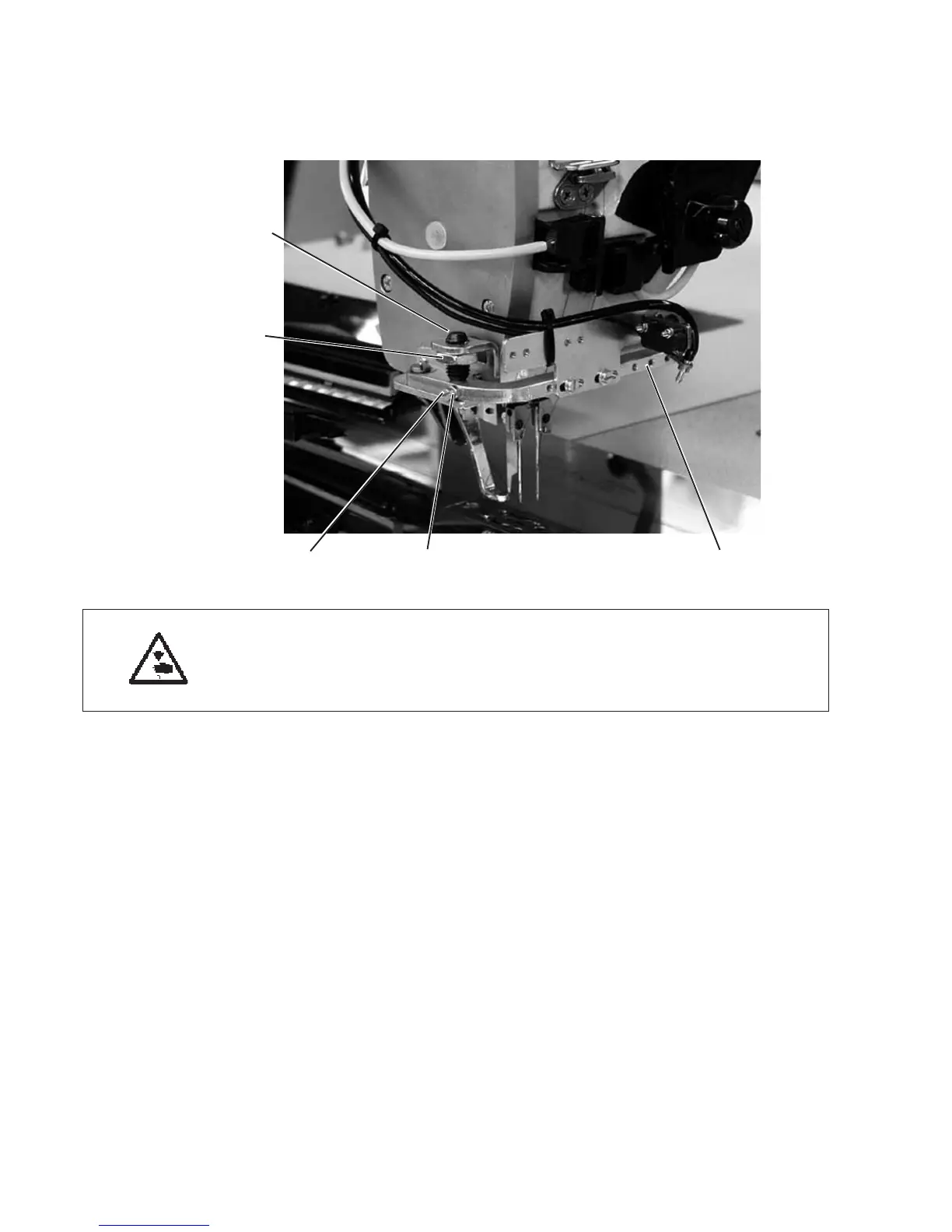

The swivel arm 1 should stand in parallel position to the machine arm.
When swivelled in front of the arm it must snap in safely.
–
Swing out the swivel arm 1 with the light barriers.
–
Swing the swivel arm in again and check the pressure of the
locking screw 5.
–
Check the position of the swivel arm to the machine head.
Correction
–
Loosen counternut 4.
–
Turn locking screw 5.
In clock-wise direction = higher locking pressure
Counter-clockwise = lower locking pressure
–
Tighten counternut 4.
–
Loosen counternut 2.
–
Set the swivel arm parallel to the machine head with screw 2.
–
Tighten counternut 2.
68
32 1
5
4
