9. Positioning the sewing machine head as to the table top
Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the sewing machine head only with the sewing unit s witched off.

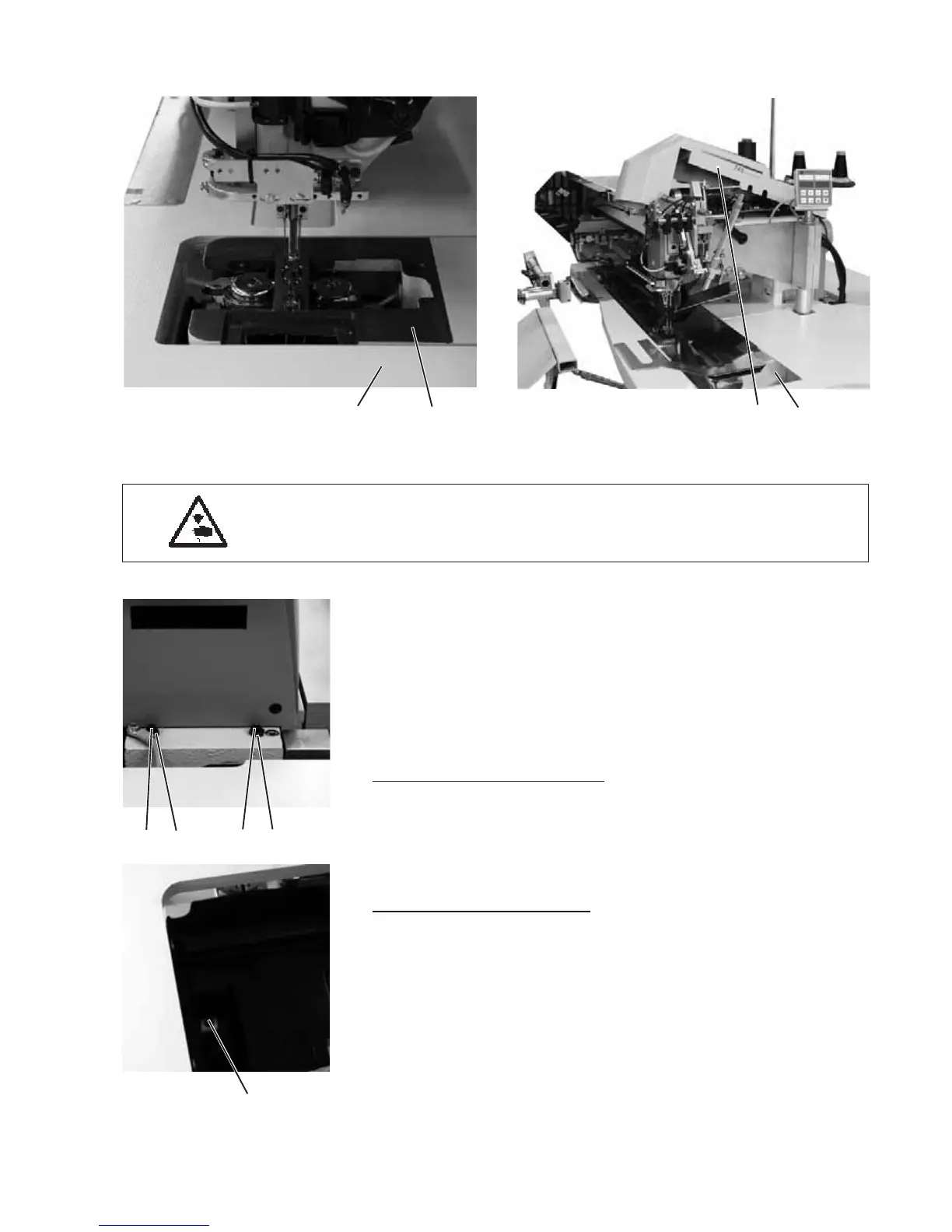

Standard checking
The non-varnished surface of the base plate 1 of the sewing machine
head must be at the same level as the table top 2 over its whole length.
Push the feeding clamps to the back.
Lift the sliding sheet 3 at the front and swivel it to the left.
Check the height of the base plate.
Correction
Sewing machine head, right side
Remove the cover 4.
Loosen the counternuts 6 and 8.
Turn the screws 5 and 7 equally with an Allen wrench.
Tighten the counternuts 6 and 8.
Sewing machine head, left side
Swing the sewing machine head upwards (see chapter 2.1).
Turnthescrew9withanAllenkey.
Swing the sewing machine head back.
71
21
43
87 65
9
