4.5 Front end position of the feeding clamp
Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the feeding clamp with utmost caution.
–

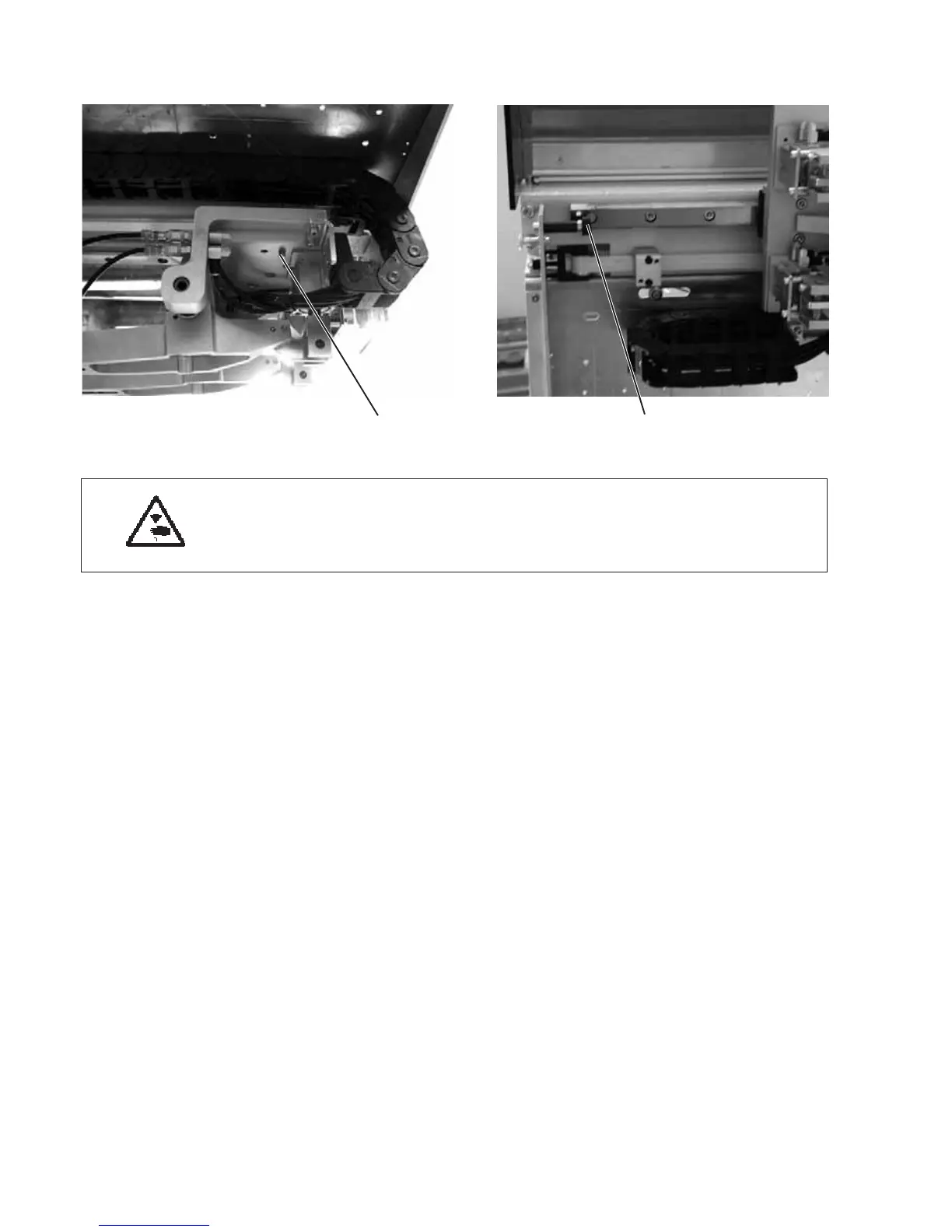

Move towards the reference point (switch 1). The feeding clamp
runs to the front end position.
–
Dimensional check of the front edge of the feeding clamp
Spacing A + sewing length + 15 mm
Consequently the front edge of the feeding clamp must have the
dimensions
111+180+15 = 306 mm from the middle of the needle.
–
Measure the difference between the actual position and the
determined nominal position.
–
Switchthemainswitchoff.
–
Correct switch 1 by the difference .
–
Correct the rear stop guide 5.
–
Switchthemainswitchon.
–
Make another reference run and check the dimensions of the front
edge of the feeding clamp.
60
2
1
