6.1 Aligning the markings
Caution: Danger of injury !
Laser light.
Do not look into the light source.

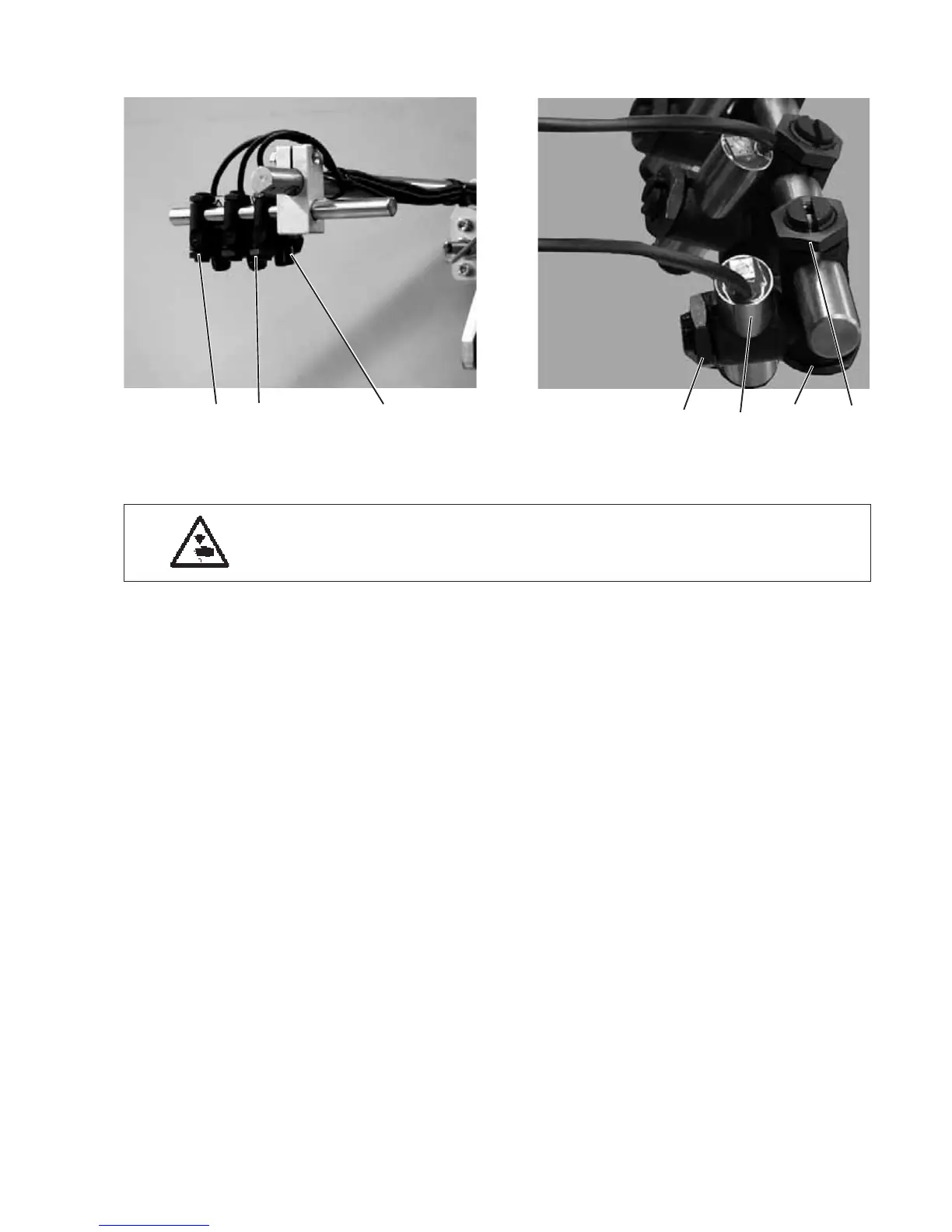

The markings 13 mark the seam beginning, the markings 14 the middle
of the pocket opening and the markings 15 the seam end.
The markings 1 and 3 must be aligned as to the cutting line 6 (middle
of pocket opening).
The distance between the middle of the pocket opening and the
measuring line 6 must amount to 125 mm.
–
Loosen the clamping nuts 9 and 10 slightly.
–
Align distance and angle of the laser module to the cutting line 6 by
shifting and turning.
–
Tighten the clamping nuts 9 and 10.
–
Loosen the clamping nut 12 slightly.
–
Align the laser line by turning the laser 11.
–
Tighten the clamping nuts 12 again.
After adjustment of the markings please consider the following in any
case:
–
Check the markings and their alignment as to the middle of the
pocket.
–
Observe the maximum sewing area.
67
12 11 10 9
15 14 13
