8. Aligning the folding station plate as to the measuring line
Caution: Danger of injury !
Switchthemainswitchoff.
Adjust the folding station plate of the loading station only with the
sewing unit switched off.

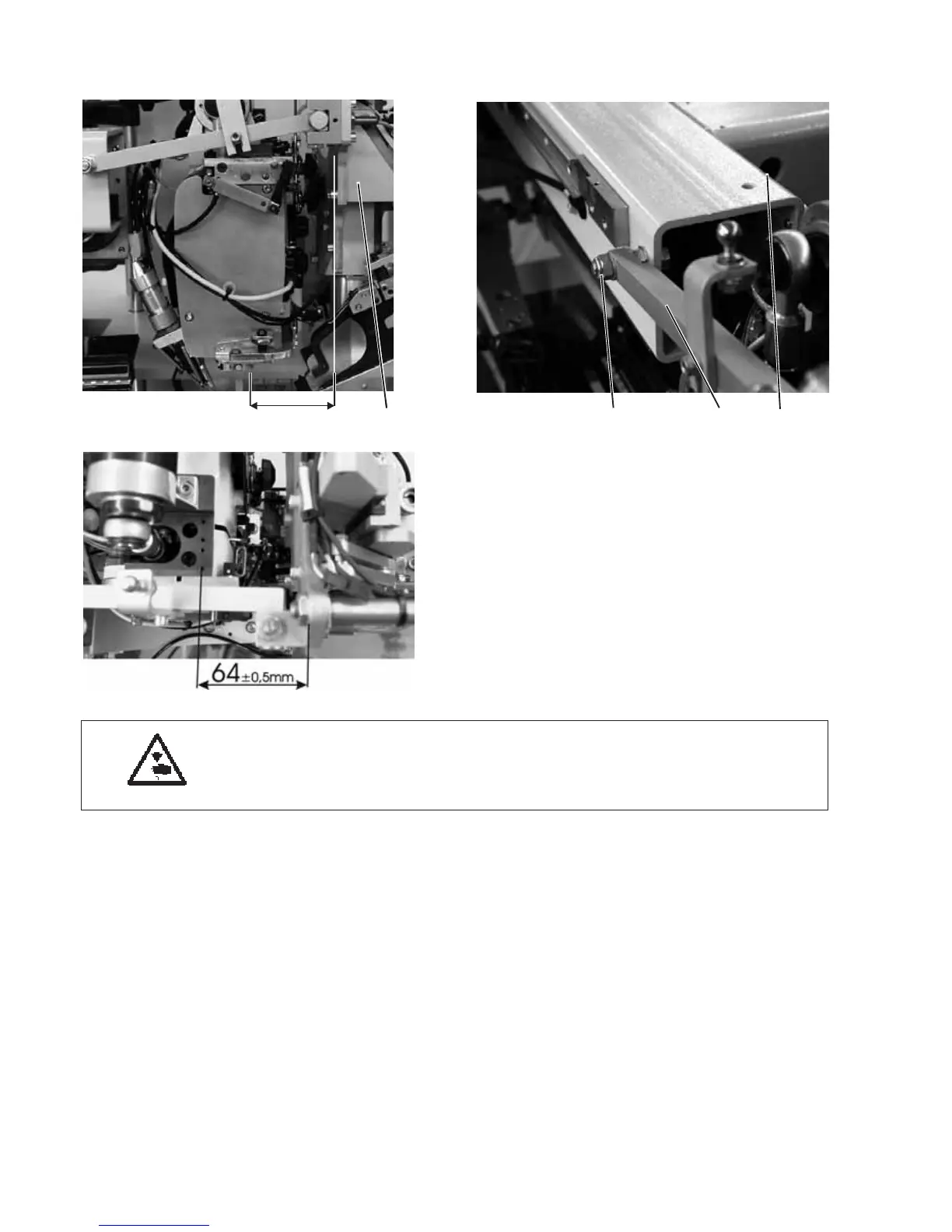

Standard checking
The distance between the middle of the needle and the inner side of
the folding station plate 1 must amount to 79 mm.
Between the bores on the machine arm and the inner side of the
folding station plate 1 there should be a distance of
64 mm ± 0.5.
–
Measure the distance between the folding station plate 1 and the
bores when the loading station is swung in.
Correction
–
Push the covering cap to the back.
–
Loosen the bolt 5.
–
Shift the lever 4 in the slotted hole 3 .
–
Tighten the bolt 5.
–
Push the covering cap to the front.
70
1
543
79 mm 1
