DURKOPP ADLER 745-34 Speedpocket

2.4 Needle bar linkage
2.4.1 Removing the needle bar linkage
Caution: Danger of injury!
Switchthemainswitchoff.
Remove the needle bar linkage only with the sewing unit switched off.
–

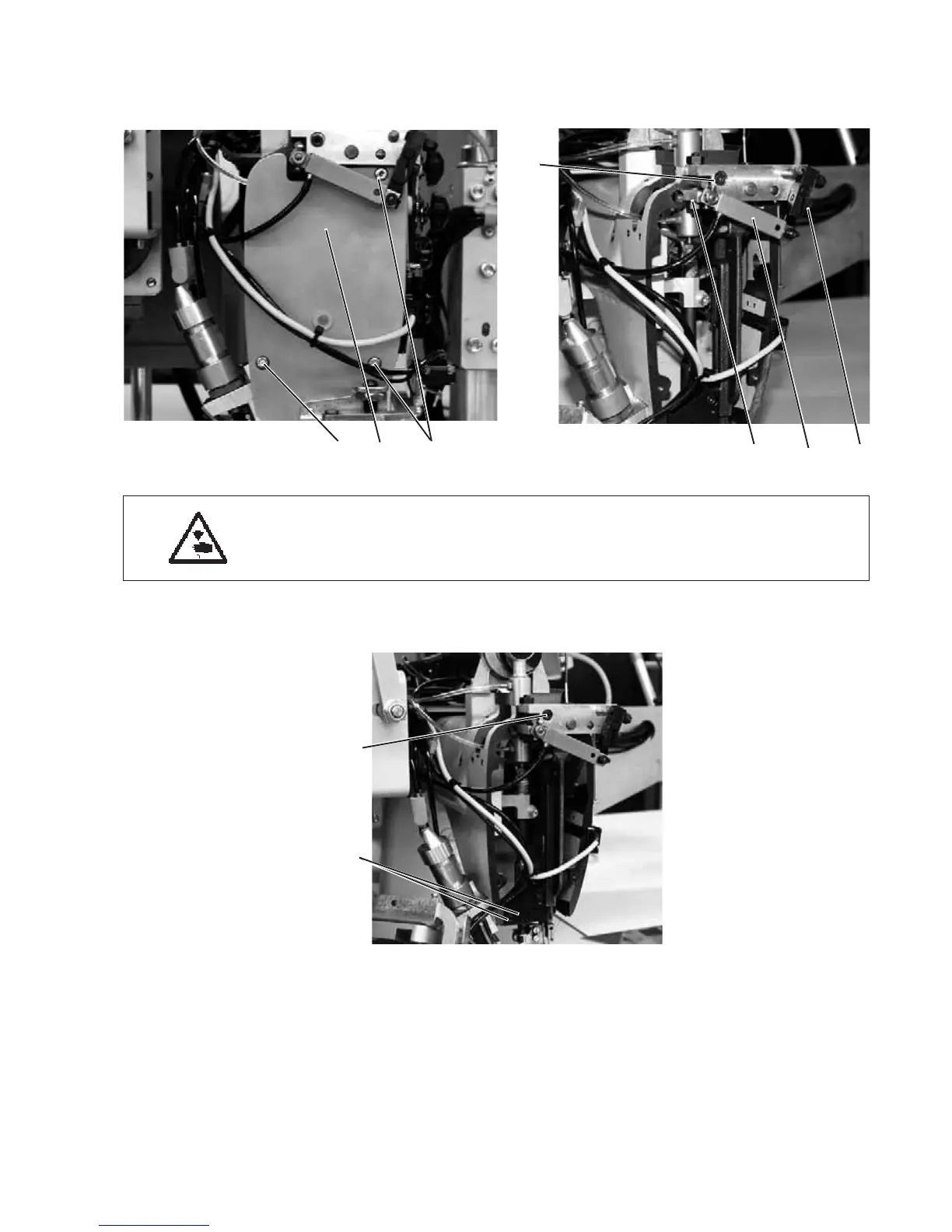

Unscrew the screws 1 and take off the head cover 2.
–
Loosen the screws 3 and 5 and pull off the thread puller 4.
–
Unscrew screws 7.
–
Unscrew screw 6.
13
54 3
121
6
6
7
