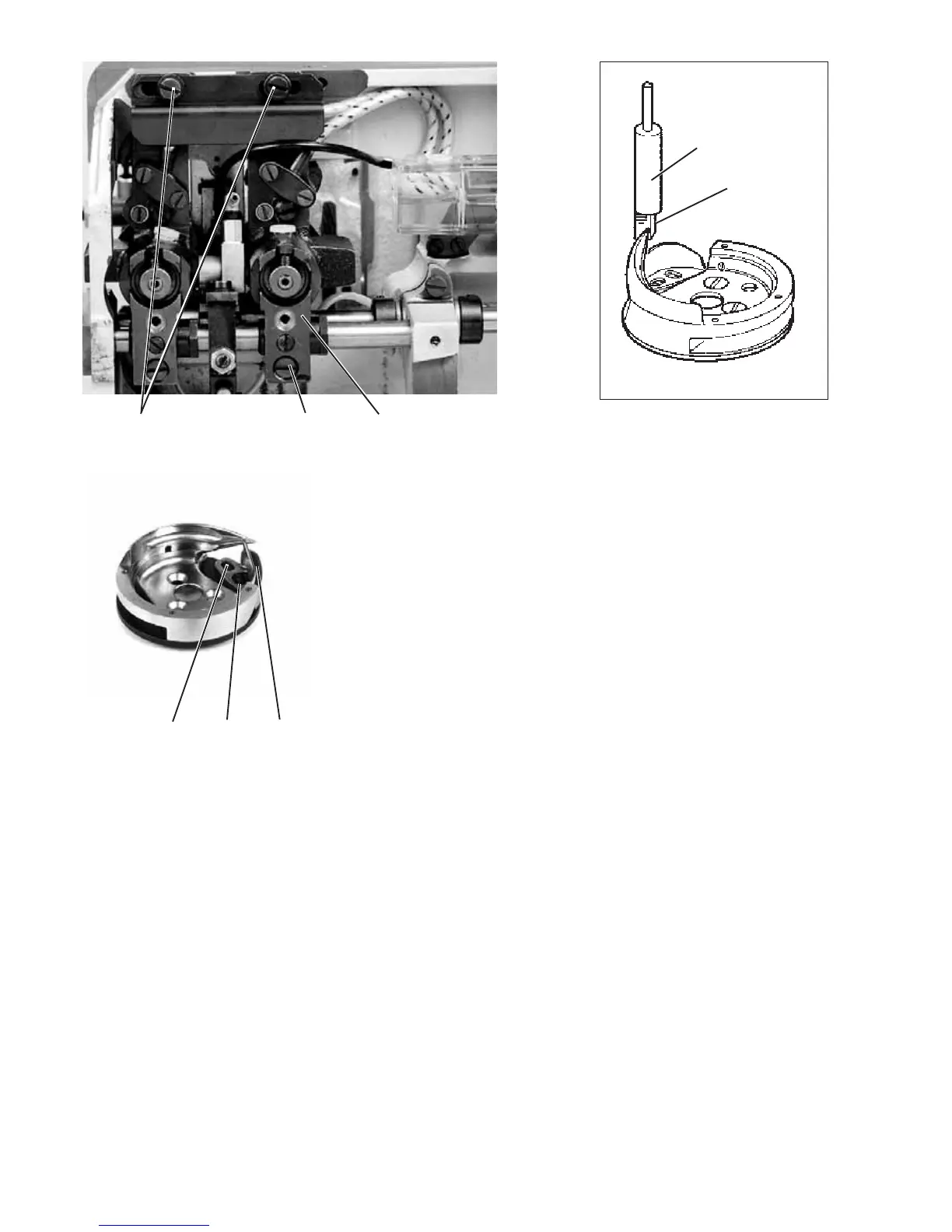

Loosen screw 12.

–

Reset the needle protection 11 by turning the eccentric bolt 13.

–

Remove the needle from the needle holder.

–

Push the adjusting pin 5 into the needle holder as far as it will go.

–

Swing the machine head upwards.

–

Loosen screws 9 and 10.

–

Shift the hook support 8 laterally.

The hook tip should slightly touch the measuring surface 14 of the

adjusting pin 5, but must not displace it.

–

Tighten screws 10.

–

Tighten screws 9.

–

Mount the bobbin case bottom parts and the hook cover.

–

Screw on the throat plate.

13 12 11

10 9 8
