Correction
–
Loosen the clamping screw 3.
–
Adjust the holding wire 1.

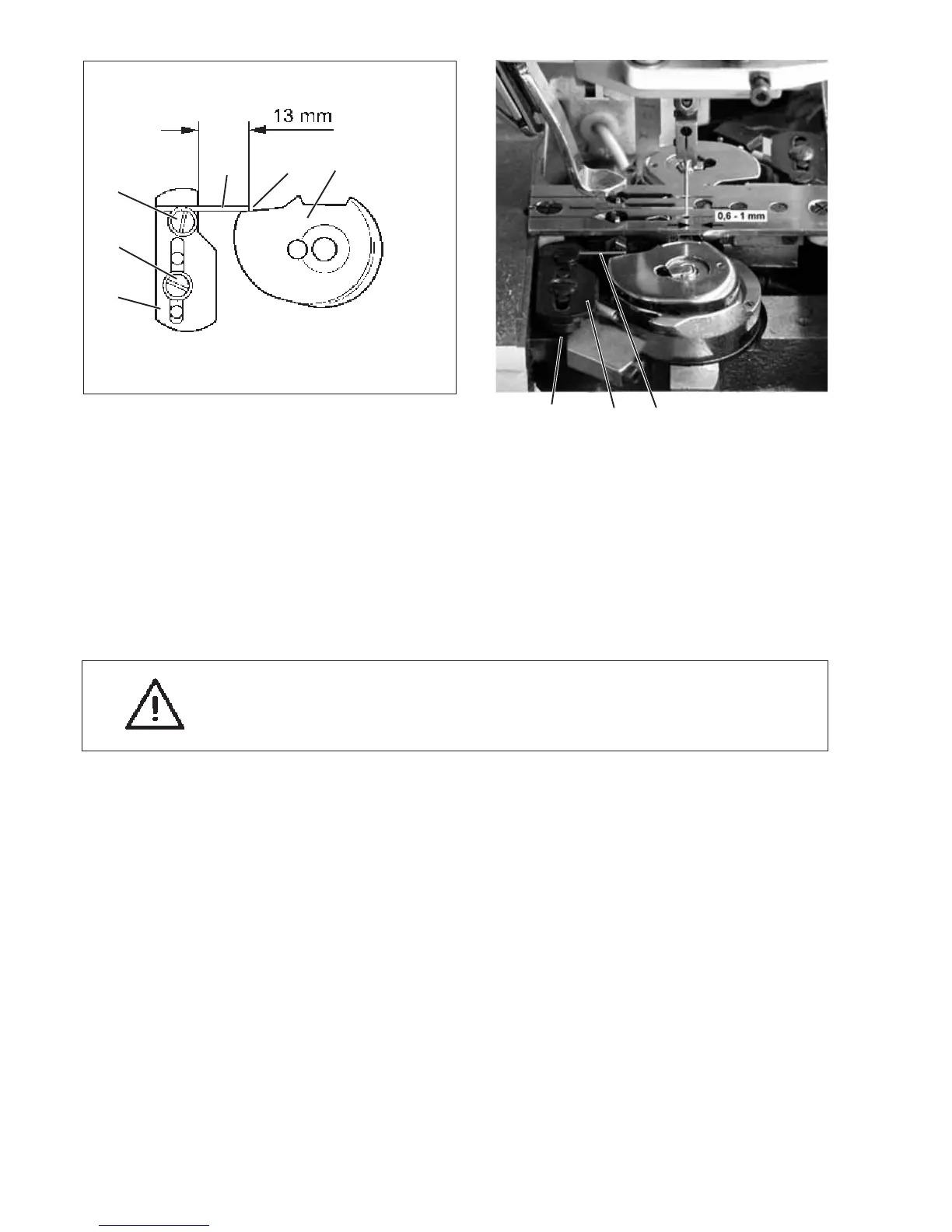

The holding wire must project from the plate 5 by 13 mm.
–
Tighten the clamping screw 3.
–
Loosen screw 6.
–
Adjust the height of plate 5.
The holding wire 1 must abut in front of the edge 2 of the bobbin
case top part 9.
ATTENTION !
During the rotary motion of the hook the back of the hook must not hit
the holding wire 1.
Adjust the height of plate 5 correspondingly.
–
Tighten screw 6.
–
Loosen screw 4.
–
Shift the plate 5.
The distance between the holding lug 7 and the edge of the throat
plate cutout must amount to 0.6 mm to 1 mm.
–
Tighten screw 4.
