3.1.2 Transferring program data from the controller to the memory card
When saving to the RAM card all parameters are transferred.
–
While the main screen is displayed insert the memory card in the
side of the controller in the direction of the arrow.
The panel with lettering must be towards the operator.
–

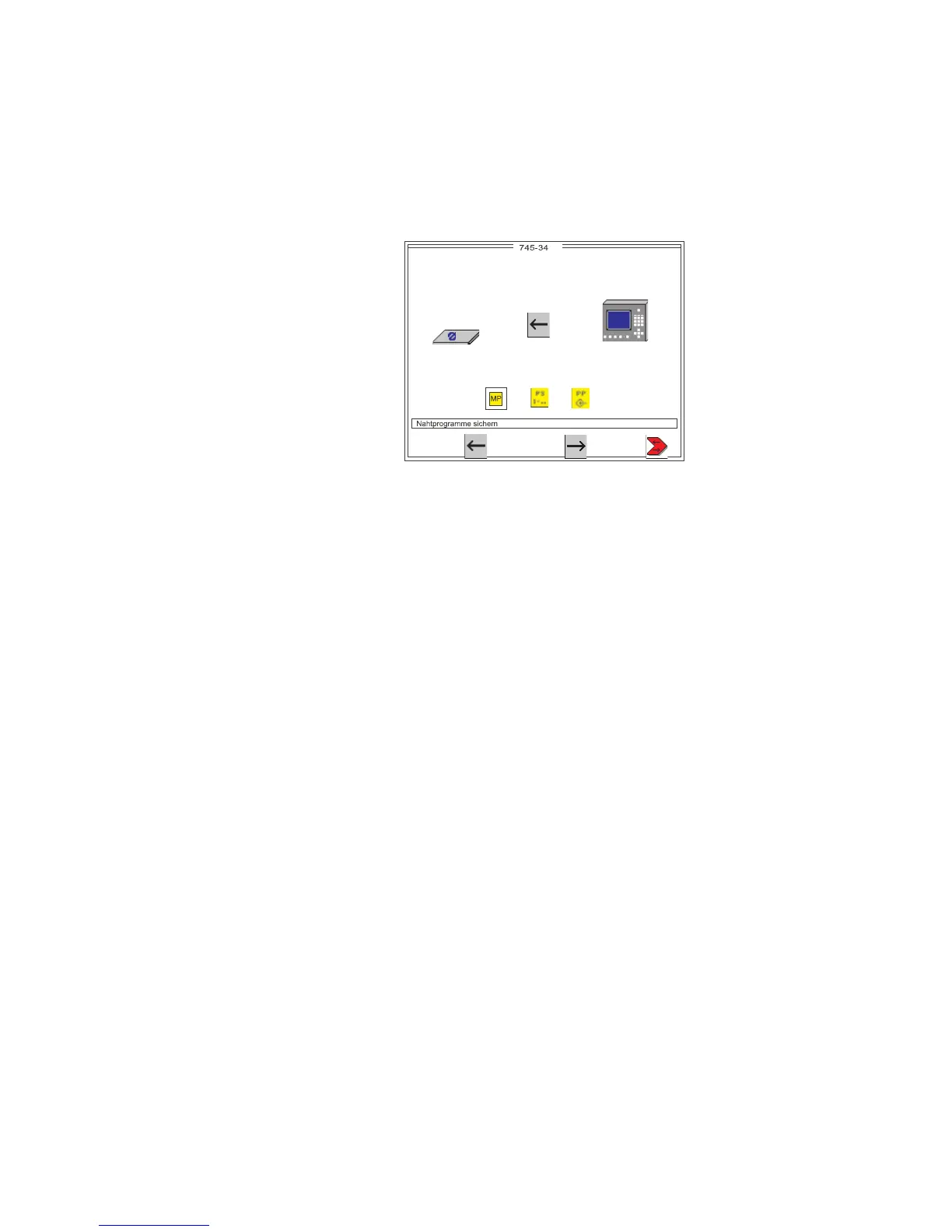

The controller switches to save mode.
–
Select the transfer direction with the “F2” key.
–
Press function key F5 .
The data transfer begins.
Transfer arrows appear above the arrow in the centre of the
display.
They go out when data transfer is complete.
–
Remove the memory card.
The display switches back to the main screen.
7
