Dynapac CA150D - Fuse Identification and Functionality; Main Fuse and Relay Locations

30 CA 150 M150EN2
Main fuses

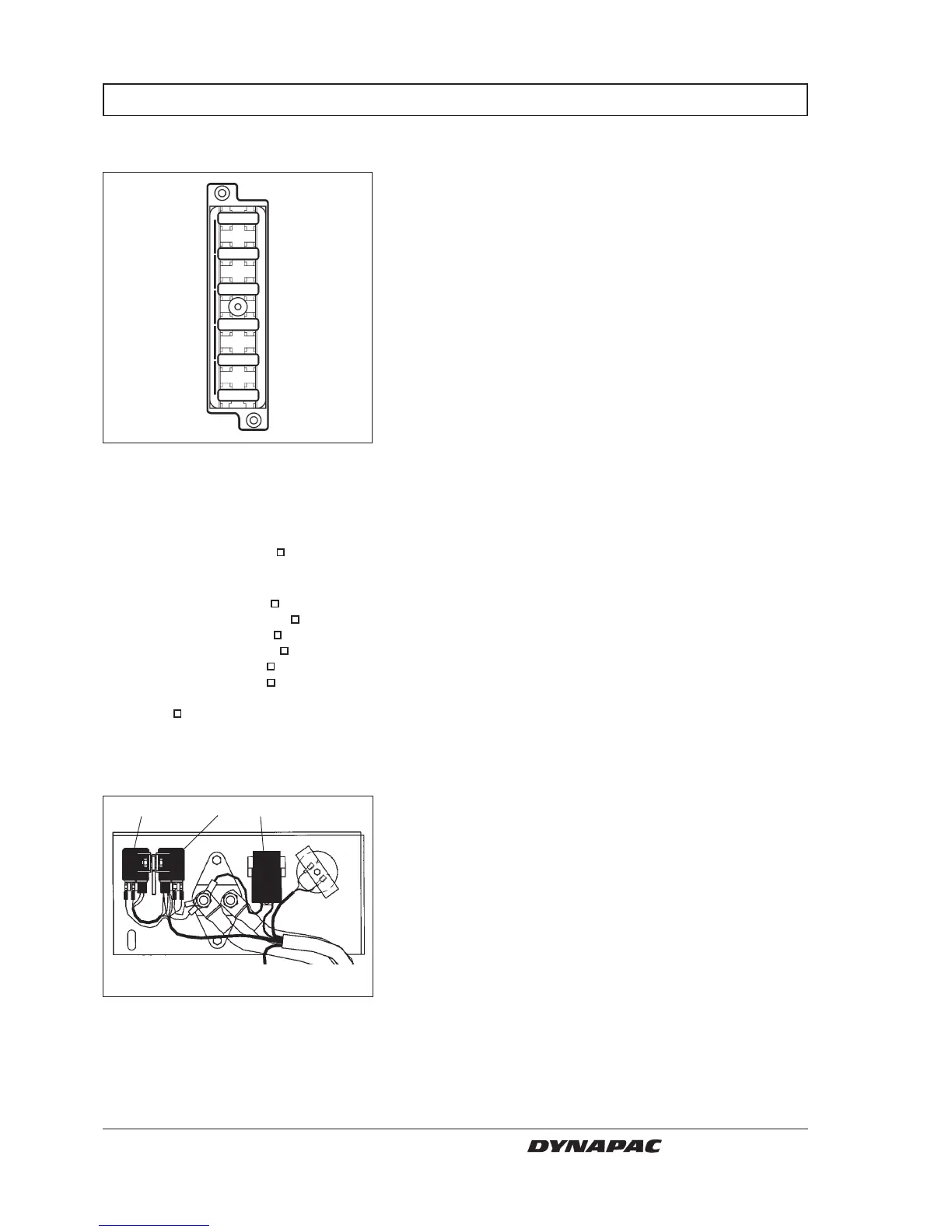

Fig. 44 Engine compartment
1. Main fuse
2. Fuel solenoid relay
3. Start relay
The main fuse (1) is located behind the battery
disconnecter. The fuse a flat pin fuse. The fuel solenoid
relay (2) and the start relay (3) are also fitted here.
Main fuse 30 A (Green)
Fuses
Fig. 43 Fuse box, left side
7.5A 1. Hourmeter
7.5A 2. VBS relay
7.5A 3. Warning lamp
7.5A 4. Horn
7.5A 5. Fuel gauge
10A 6. Front wiper, cab
Fig. 43 shows the rating and function of the different
fuses. All fuses are flat pin fuses.
321
Fuse box, right side
7.5A 1. High/Low gear
3A 2. Compaction meter
7.5A 3. Hazard beacon
3A 4. Reversing alarm
20A 5. Working lights
20A 6. Working lights
= Optional
1
2
3
4
5
6
ELECTRICAL SYSTEM, FUSES
