24 CA 150 M150EN2
Never work under the roller with the engi-
ne running. Park on a level surface and
block the wheels securely.
Wipe clean and remove the level/filler plug (1) and all
three drain plugs (2), and drain the oil into a suitable
receptacle. The volume is about 7 quarts.
Save the oil and deposit it in an approved
manner.
Refit the drainage plugs and top up with fresh oil until
the correct level is reached.
Note: It takes a while for the oil to flow into the axle. Do
not fill the entire volume all at once.
Refit the oil-level/filler plug. Use transmission oil, see
the lubrication specification.
1
1
1
2
EVERY 1000 OPERATING HOURS (Every six months)

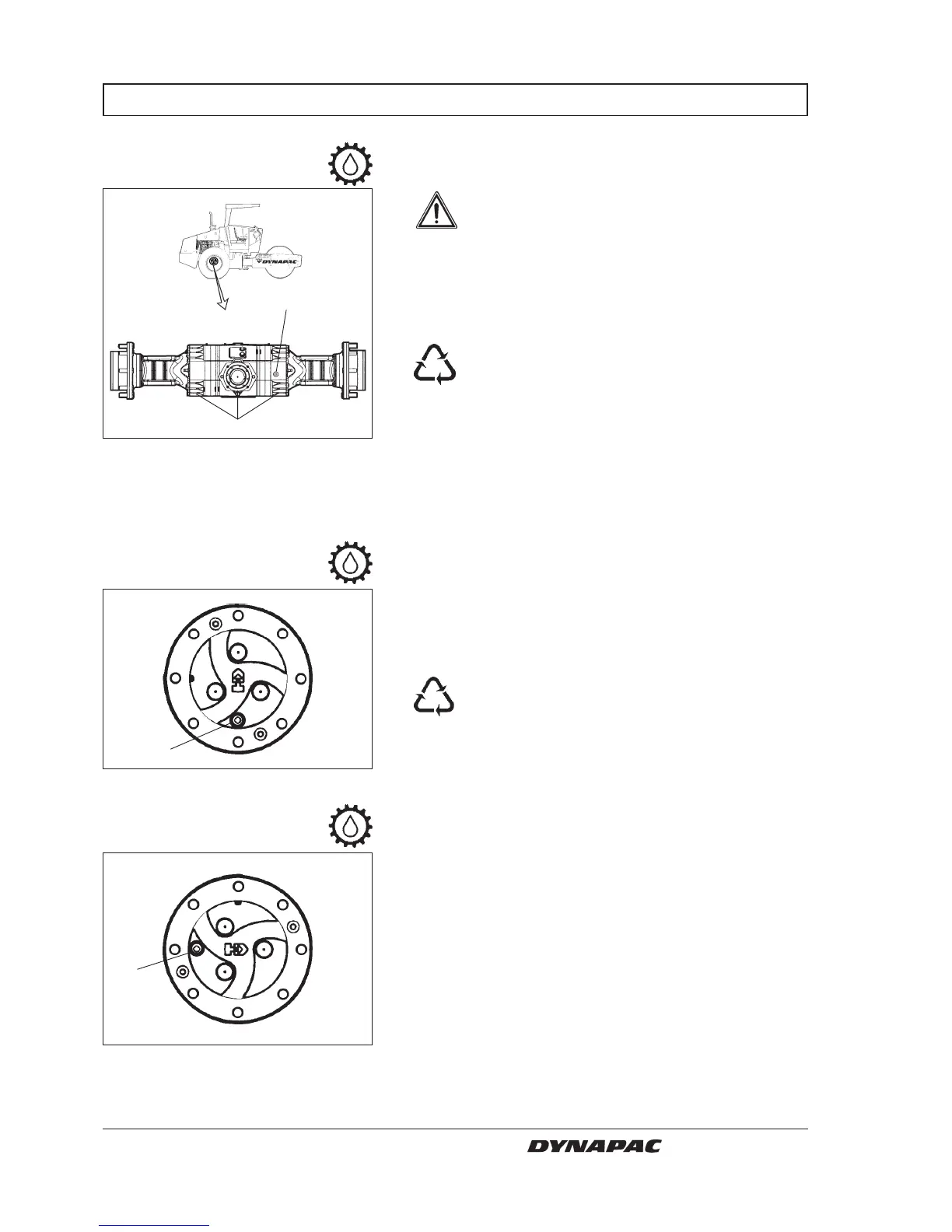

Fig. 33 Rear axle
1. Oil level/Filler plug
2. Drainage plugs
Rear axle differential
– Oil change
WARNING
Position the roller with the plug (1) at its lowest position.
Wipe clean, unscrew the plug (1) and drain the oil into a
suitable receptacle. The volume is about 1 litre (1.1 qts).
Save the oil and deposit it in an approved
manner.
Position the roller with the plug at 9 o’clock.
Fill with oil to lower edge of level hole. Use transmis-
sion oil. See lubricant specification.
Clean and screw in the plug. Use transmission oil. See
lubricant specification.
Change oil in the same way in the other planetary
gears of the rear axle.
Fig. 35 Planetary gear/filling position
1. Plug
Rear axle planetary gears
– Oil change
Fig. 34 Planetary gear/drainage position
1. Plug
