7CA 150 M150EN2
1. Radiator grille
2. Fuel filter, initial fuel filter
3. Drive belts, cooling, alternator
4. Oil level, diesel engine
5. Air filter
6. Hydraulic reservoir, sight glass
7. Breather filter
8. Drain, hydraulic reservoir
9. Hydraulic fluid, filling
10. Forward/reverse lever
11. Fuse box
12. Drum oil, filling
13. Scrapers
14. Drum oil, level plug, x1
15. Rubber elements and fastening screws
16. Steering joint
17. Steering cylinder, x1
18. Hydraulic filter, x1
19. Flywheel casing, hydraulic pumps
20. Wheel nuts
21. Tire pressure
22. Rear axle, differential
23. Rear axle, planetary gearing, x2
24. Rear axle suspension, two sides
25. Feed pump, fuel
26. Oil filter, diesel engine
27. Draining, fuel tank
28. Engine suspension, x4
29. Diesel fuel, filling
30. Battery
31. Radiator
32. Hydraulic fluid cooler
MAINTENANCE SCHEDULE
1 2 3 4 5 6 7 8 9 10 11 12
28 27 26 25 24 23 22 21 20 19 18 17 16 15 14
13
32
31
30
29

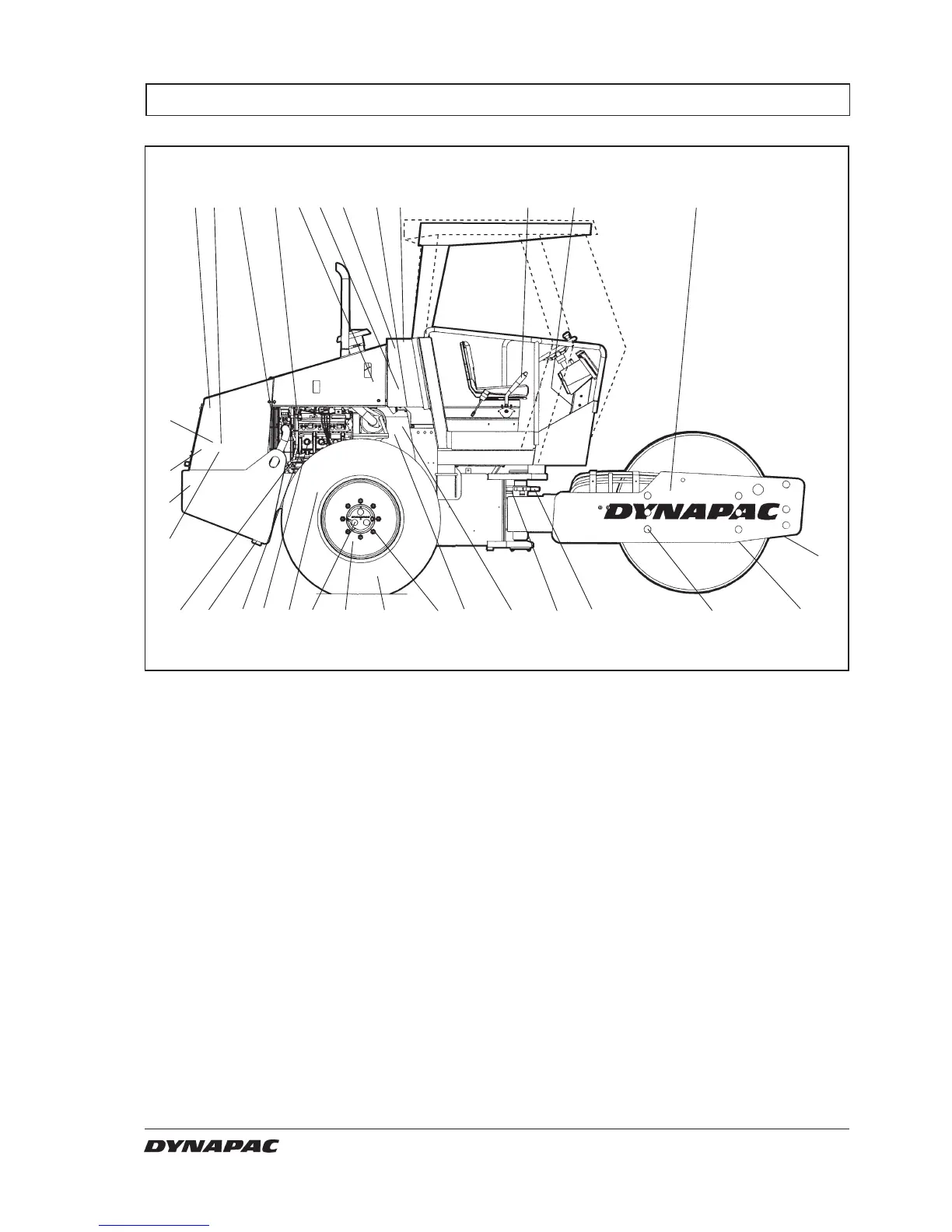

Fig. 1 Service and maintenance points
